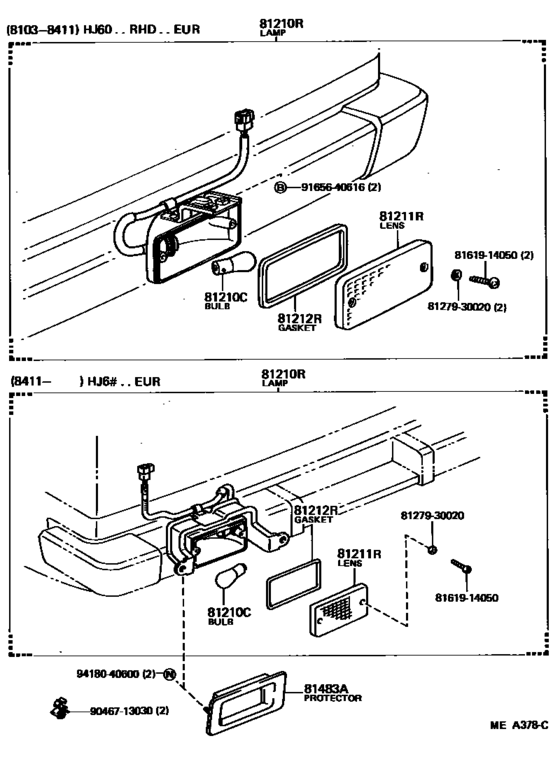

Rear Fog Lamp ([11.1984 - ] (8103-8411)RHD..EUR ; (8411- )EUR) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- HJ61
- body
- WGV
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81210C
|
81210C
90981-16014 Bulb (For Front Turn Signal Lamp)[11.1984 - 08.1987] HJ6#..EUR 24V 21W,24V 21W |
90981-16014 |
from US $4.84 |
||
|
81210R
|
81210R
81210-69075
Lamp Assy, Rear Fog
[11.1984 - 08.1987] HJ6#..EUR RH |
81210-69075 |
— | ||
| replacement | |||||
|
81210R
|
81210R
81210-90A02
Lamp Assy, Rear Fog
[11.1984 - 08.1987] HJ6#..EUR RH |
81210-90A02 |
— | ||
|
81210R
|
81210R
81220-69015
Lamp Assy, Rear Fog
[11.1984 - 08.1987] HJ6#..EUR LH |
81220-69015 |
— | ||
| replacement | |||||
|
81210R
|
81210R
81220-90A00
Lamp Assy, Rear Fog
[11.1984 - 08.1987] HJ6#..EUR LH |
81220-90A00 |
— | ||
|
81211R
|
81211R
81211-95700 Lens, Rear Fog Lamp[11.1984 - 08.1987] HJ6#..EUR |
81211-95700 |
US $23 |
||
|
81212R
|
81212R
81212-95700 Gasket, Rear Fog Lamp, No.1[11.1984 - 08.1987] HJ6#..EUR |
81212-95700 |
US $6.29 |
||
|
81483A
|
81483A
81483-90A00
Protector, Fog Lamp
[11.1984 - 08.1987] HJ6#..EUR RH |
81483-90A00 |
— | ||
|
81483A
|
81483A
81484-90A00
Protector, Fog Lamp
[11.1984 - 08.1987] HJ6#..EUR LH |
81484-90A00 |
— | ||
|
8127930020
|
8127930020
81279-30020 Washer, Side Turn Signal Lamp |
81279-30020 |
US $5.20 |
||
|
8161914050
|
8161914050
81619-14050 New Genuine Part |
81619-14050 |
US $3.94 |
||
|
9046713030
|
9046713030
90467-13030
CLIP
|
90467-13030 |
— | ||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.61 |
||
