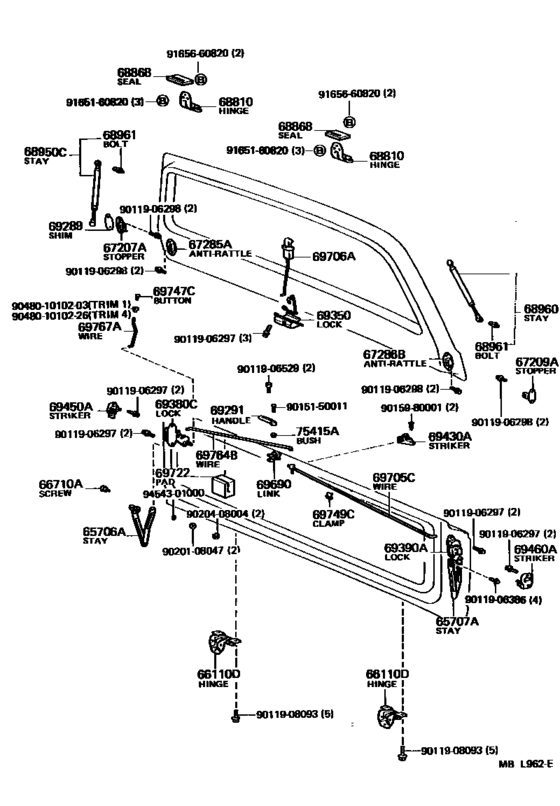

Back Door Lock & Hinge ([08.1987 - ] (8708- )LUB) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- HJ61
- grade
- GX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65706A
|
65706A
65706-90A00
Stay Sub-Assy, Tail Gate, Rh
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
65706-90A00 |
— | ||
|
65707A
|
65707A
65707-90A00
Stay Sub-Assy, Tail Gate, Lh
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
65707-90A00 |
— | ||
|
66110D
|
66110D
66110-90A00
Hinge Assy, Tail Gate
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
66110-90A00 |
— | ||
|
66710A
|
66710A
65777-90A00
Screw, Tail Gate Assy
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
65777-90A00 |
— | ||
|
67207A
|
67207A
67207-90A00
Stopper Sub-Assy, Back Door, Rh
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
67207-90A00 |
— | ||
|
67209A
|
67209A
67209-90A00
Stopper Sub-Assy, Back Door, Lh
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
67209-90A00 |
— | ||
|
67285A
|
67285A
67285-90A00
Anti-Rattle, Back Door, Rh
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
67285-90A00 |
— | ||
|
67286B
|
67286B
67286-90A00
Anti-Rattle, Back Door, Lh
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
67286-90A00 |
— | ||
|
68810
|
68810
68810-90A00
Hinge Assy, Back Door, Upper
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
68810-90A00 |
— | ||
|
68868
|
68868
68868-90A00
Seal, Back Door Hinge
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
68868-90A00 |
— | ||
|
68950C
|
68950C
68950-69035 Stay Assy, Back Door, RhBACK DOOR, RH [08.1987 - 03.1992] FJ62,HJ6#..LUB..GX..(ARL,GEN) |
68950-69035 |
US $133.95 |
||
|
68950C
|
68950C
68950-69045 Stay Assy, Back Door, Rh[08.1987 - 01.1990] FJ62..LUB..GX..ME;FJ62,HJ6#..LUB..VX; HJ60..LUB..GX;FJ62..LHD..4F..LUB;FJ62..5F..HRF..GEN;FJ62,HJ61..RHD..GX W(*RWD) |
68950-69045 |
US $164 |
||
|
68960
|
68960
68950-69035 Stay Assy, Back Door, RhBACK DOOR, RH [08.1987 - 03.1992] FJ62,HJ6#..LUB..GX..(ARL,GEN) |
68950-69035 |
US $133.95 |
||
|
68960
|
68960
68950-69045 Stay Assy, Back Door, Rh[08.1987 - 01.1990] FJ62..LUB..GX..ME;FJ62,HJ6#..LUB..VX; HJ60..LUB..GX;FJ62..LHD..4F..LUB;FJ62..5F..HRF..GEN;FJ62,HJ61..RHD..GX W(*RWD) |
68950-69045 |
US $164 |
||
|
68961
|
68961
68961-23010 Bolt, Hood Support, No.1[08.1987 - 03.1992] FJ62,HJ6#..LUB |
68961-23010 |
from US $4.64 |
||
|
69289
|
69289
69289-90A00 Shim, Back Door Stopper[08.1987 - 03.1992] FJ62,HJ6#..LUB |
69289-90A00 |
US $7.43 |
||
|
69291
|
69291
69212-90A00
Handle, Back Door Outside, Lh
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
69212-90A00 |
— | ||
|
69350
|
69350
69350-90A03
Lock Assy, Back Door
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
69350-90A03 |
— | ||
|
69380C
|
69380C
69380-90A01
Lock Sub-Assy, Back Door, Lower
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
69380-90A01 |
— | ||
|
69390A
|
69390A
69390-90A00
Lock Assy, Tail Gate, Lower Lh
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
69390-90A00 |
— | ||
|
69430A
|
69430A
69430-90A01
Striker Assy, Back Door Lower Lock
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
69430-90A01 |
— | ||
|
69450A
|
69450A
69450-90A00
Striker Assy, Tail Gate, Lower Rh
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
69450-90A00 |
— | ||
|
69460A
|
69460A
69460-90A00
Striker Assy, Tail Gate, Lower Lh
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
69460-90A00 |
— | ||
|
69690
|
69690
69690-90A01
Link Assy, Tail Gate Remote Control
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
69690-90A01 |
— | ||
|
69705C
|
69705C
69705-90A00 Wire, Tail Gate Lock, No.2[08.1987 - 03.1992] FJ62,HJ6#..LUB |
69705-90A00 |
US $21.11 |
||
|
69706A
|
69706A
69706-90A00-03
Rod Sub-Assy, Back Door Lock Remote Control
[08.1987 - 01.1990] FJ62,HJ6#..LUB SHADOW GRAY,TRIM1# |
69706-90A00-03 |
— | ||
| replacement | |||||
|
69706A
|
69706A
69706-90A00-P0 Rod Sub-Assy, Back Door Lock Remote Control[08.1987 - 01.1990] FJ62,HJ6#..LUB SHADOW GRAY,TRIM1# |
69706-90A00-P0 |
US $20.53 |
||
|
69706A
|
69706A
69706-90A00-06 Rod Sub-Assy, Back Door Lock Remote Control[08.1987 - 01.1990] FJ62,HJ6#..LUB SEPIA BROWN,TRIM4# |
69706-90A00-06 |
US $20.53 |
||
| replacement | |||||
|
69706A
|
69706A
69706-90A00-P0 Rod Sub-Assy, Back Door Lock Remote Control[08.1987 - 01.1990] FJ62,HJ6#..LUB SEPIA BROWN,TRIM4# |
69706-90A00-P0 |
US $20.53 |
||
|
69722
|
69722
69722-90A00
Pad, Back Door Lock Control
[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
69722-90A00 |
— | ||
|
69747C
|
69747C
69747-20020-01
Button, Door Locking
[08.1987 - 03.1992] BJ60,FJ62,HJ60..STD BLACK,TRIM4#; BJ60,FJ62,HJ6#..GX,VX BLACK,TRIM1#,4# |
69747-20020-01 |
— | ||
| replacement | |||||
|
69747C
|
69747C
69747-20020-C0 Button, Door Locking(For Front Door)[08.1987 - 03.1992] BJ60,FJ62,HJ60..STD BLACK,TRIM4#; BJ60,FJ62,HJ6#..GX,VX BLACK,TRIM1#,4# |
69747-20020-C0 |
US $4.48 |
||
|
69749C
|
69749C
69749-30020 Clamp, No.1(For Back Door Lock Control Cable)[08.1987 - 03.1992] FJ62,HJ6#..LUB |
69749-30020 |
US $5.02 |
||
|
69764B
|
69764B
69764-90A00
Wire, Tail Gate Lock, No.1
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
69764-90A00 |
— | ||
|
69767A
|
69767A
69767-90A00
Wire, Tail Gate Lock, No.3
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
69767-90A00 |
— | ||
|
75415A
|
75415A
75415-95660
Bush
[08.1987 - 03.1992] FJ62,HJ6#..LUB |
75415-95660 |
— | ||
|
9011906297
|
9011906297
90119-06297 BOLT |
90119-06297 |
US $2.15 |
||
|
9011906298
|
9011906298
90119-06298 BOLT, W/WASHER |
90119-06298 |
US $0.52 |
||
|
9011906386
|
9011906386
90119-06386
New Genuine Part
|
90119-06386 |
— | ||
|
9011906529
|
9011906529
90119-06529 New Genuine Part |
90119-06529 |
US $1.60 |
||
| replacement | |||||
|
9011906529
|
9011906529
90119-06311 BOLT |
90119-06311 |
US $1.79 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.20 |
||
|
9015150011
|
9015150011
90151-50011 New Genuine Part |
90151-50011 |
US $0.64 |
||
| replacement | |||||
|
9015150011
|
9015150011
90151-50010 Screw |
90151-50010 |
US $1.25 |
||
|
9015980001
|
9015980001
90159-80001
SCREW
|
90159-80001 |
— | ||
|
9020108047
|
9020108047
90201-08047 New Genuine Part |
90201-08047 |
US $1.89 |
||
|
9020408004
|
9020408004
90204-08004 New Genuine Part |
90204-08004 |
US $0.87 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9165660820
|
9165660820
91656-60820
New Genuine Part
|
91656-60820 |
— | ||
| replacement | |||||
|
9165660820
|
9165660820
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
|
9454301000
|
9454301000
94543-01000 New Genuine Part |
94543-01000 |
US $1.97 |
||
|
904801010203
|
904801010203
90480-10102-03
Grommet(For Rear Door Panel Lock Button)
|
90480-10102-03 |
— | ||
| replacement | |||||
|
904801010203
|
904801010203
90480-10102-01 Grommet(For Rear Door Panel Lock Button) |
90480-10102-01 |
from US $1.18 |
||
|
904801010226
|
904801010226
90480-10102-26
Grommet(For Rear Door Panel Lock Button)
|
90480-10102-26 |
— | ||
| replacement | |||||
|
904801010226
|
904801010226
90480-10102-01 Grommet(For Rear Door Panel Lock Button) |
90480-10102-01 |
from US $1.18 |
||
