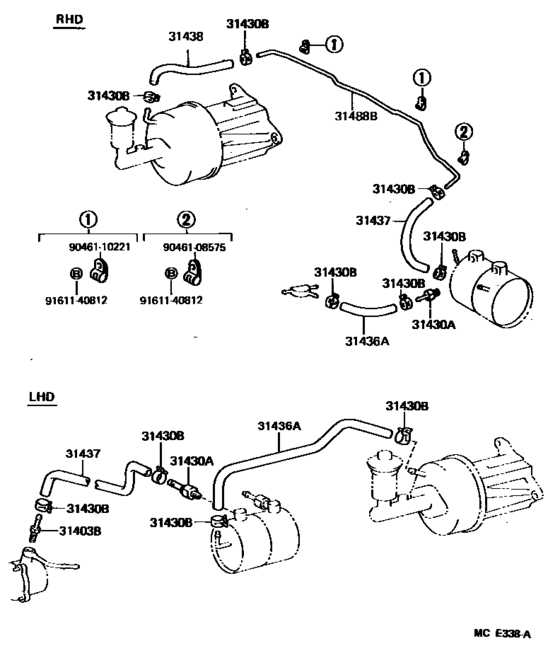

Clutch Booster ([08.1987 - ] (8708- )HJ6#..MTM) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- HJ61
- grade
- GX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31430A
|
31430A
44730-60040 Booster Kit, Brake[08.1987 - 08.1988] BJ60,HJ6#..MTM;FJ62..MTM..(ARL,GEN);FJ62..5F..(GX,VX)..ME |
44730-60040 |
US $77.93 |
||
|
31430A
|
31430A
44730-60050 Valve Assy, Vacuum Check(For Clutch Vacuum)[08.1988 - 01.1990] HJ6#..MTM |
44730-60050 |
from US $22.85 |
||
|
31430B
|
31430B
90467-16002
Clip(Vaccum Transmitting Hose No.1)
[08.1987 - 03.1992] BJ60..LHD;HJ6#..RHD..MTM;FJ62..MTM..(ARL,GEN);FJ62..5F..(GX,VX)..ME |
90467-16002 |
— | ||
| replacement | |||||
|
31430B
|
31430B
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1987 - 03.1992] BJ60..LHD;HJ6#..RHD..MTM;FJ62..MTM..(ARL,GEN);FJ62..5F..(GX,VX)..ME |
96133-41500 |
from US $2.26 |
||
|
31436A
|
31436A
95441-09200
Hose, No.1(For Clutch Booster Vacuum)
[08.1987 - 01.1990] BJ60,HJ6#..RHD..MTM |
95441-09200 |
— | ||
| replacement | |||||
|
31436A
|
31436A
95446-09300 Hose, Solenoid To Vacuum Tube[08.1987 - 01.1990] BJ60,HJ6#..RHD..MTM |
95446-09300 |
US $11.65 |
||
|
31437
|
31437
95441-09270
Hose, No.2(For Clutch Booster Vacuum)
[08.1987 - 01.1990] BJ60..LHD;HJ6#..RHD..MTM |
95441-09270 |
— | ||
| replacement | |||||
|
31437
|
31437
95446-09270 Hose, No.1(For Clutch Booster Vacuum)VACUUM, NO.1 [08.1987 - 01.1990] BJ60..LHD;HJ6#..RHD..MTM |
95446-09270 |
US $3.67 |
||
|
31438
|
31438
31436-60010
Hose, No.3(For Clutch Booster Vacuum)
[08.1987 - 01.1990] HJ6#..RHD..MTM |
31436-60010 |
— | ||
|
31488B
|
31488B
31488-60021
Tube, Vacuum Hose To Vacuum Hose
[08.1987 - 01.1990] HJ6#..RHD..MTM |
31488-60021 |
— | ||
|
9046108575
|
9046108575
90461-08575 New Genuine Part |
90461-08575 |
US $12.52 |
||
| replacement | |||||
|
9046108575
|
9046108575
90461-08058 New Genuine Part |
90461-08058 |
US $7.28 |
||
|
9046110221
|
9046110221
90461-10221
Clamp, Conneector Tube
|
90461-10221 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
