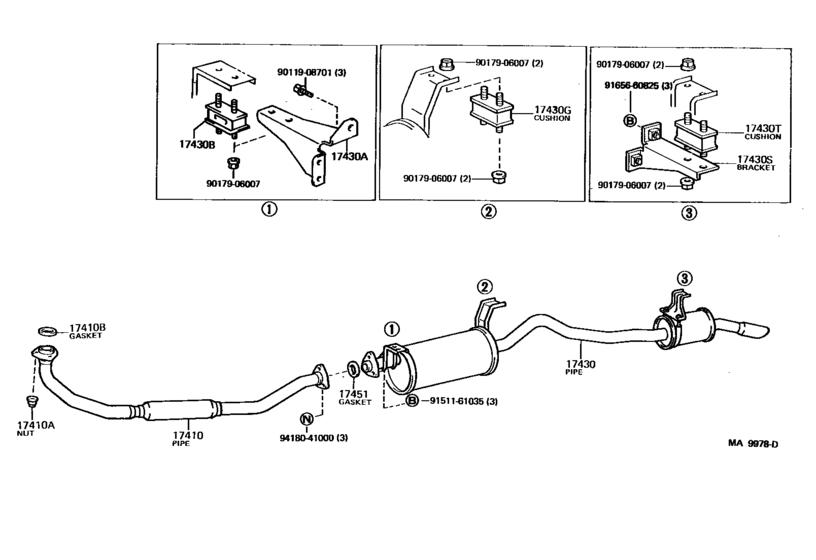

Exhaust Pipe ([08.1987 - ] (8708- )12HT) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- HJ61
- grade
- GX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-68040 Pipe Assy, Exhaust, Front[08.1987 - 01.1990] 12HT..HJ61 |
17401-68040 |
US $359.14 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1987 - 03.1992] 12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
90179-10070 |
from US $1.31 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1987 - 03.1992] 12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06034
Gasket, Exhaust Pipe
[08.1987 - 08.1988] 12HT..HJ61 |
90917-06034 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06059 Gasket, Exhaust Pipe[08.1987 - 08.1988] 12HT..HJ61 |
90917-06059 |
from US $4.64 |
||
|
17430
|
17430
17430-68061
Pipe Assy, Exhaust, Tail
[08.1987 - 01.1990] 12HT..HJ61 |
17430-68061 |
— | ||
|
17430A
|
17430A
17574-61071
Bracket, Exhaust Tail Pipe(For Front)
[08.1987 - 03.1992] 12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
17574-61071 |
— | ||
|
17430B
|
17430B
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1987 - 03.1992] 12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
17567-61030 |
from US $14.29 |
||
|
17430G
|
17430G
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1987 - 03.1992] 12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
17567-61030 |
from US $14.29 |
||
|
17430S
|
17430S
17574-61060
Bracket, Exhaust Tail Pipe (For Rear)
[08.1987 - 03.1992] 12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
17574-61060 |
— | ||
|
17430T
|
17430T
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1987 - 03.1992] 12HT,3B,3F,2H..BJ60,FJ62,HJ6# |
17567-61030 |
from US $14.29 |
||
|
17451
|
17451
90917-06024
Gasket, Exhaust Pipe, Center
[08.1987 - 12.1990] 12HT,3F,2H..FJ62,HJ6# |
90917-06024 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06073 Gasket, Exhaust Pipe, Center[08.1987 - 12.1990] 12HT,3F,2H..FJ62,HJ6# |
90917-06073 |
from US $8.06 |
||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
from US $0.97 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.95 |
||
|
9165660825
|
9165660825
91656-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91656-60825 |
— | ||
| replacement | |||||
|
9165660825
|
9165660825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.27 |
||
