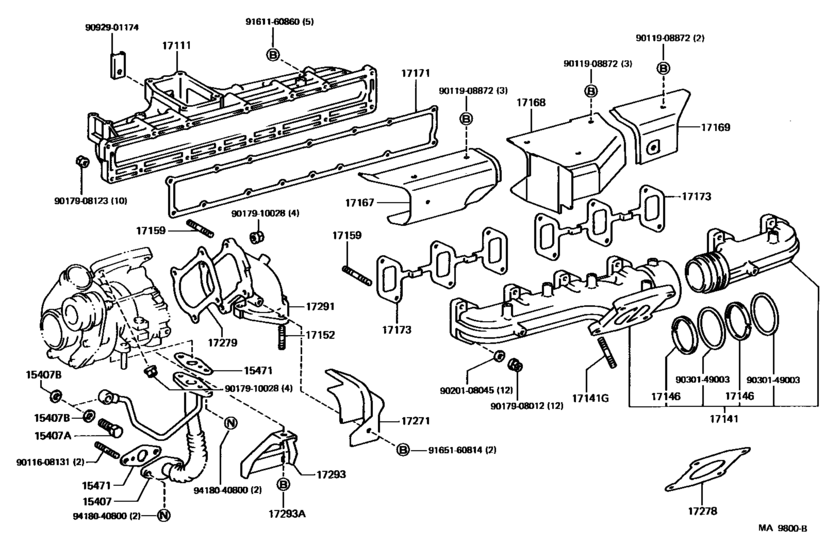

Manifold ([08.1987 - ] (8708- )12HT) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- HJ61
- grade
- GX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15407
|
15407
15407-68010
Pipe Sub-Assy, Turbo Oil Inlet
[08.1987 - 01.1990] 12HT..HJ61 |
15407-68010 |
— | ||
|
15407A
|
15407A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1987 - 01.1990] 12HT..HJ61 |
90401-12097 |
from US $2.87 |
||
|
15407B
|
15407B
90430-12221 Gasket[08.1987 - 01.1990] 12HT..HJ61 |
90430-12221 |
from US $1.05 |
||
|
15471
|
15471
15471-54010
Gasket, Turbo Oil Inlet
[08.1987 - 01.1990] 12HT..HJ61 |
15471-54010 |
— | ||
| replacement | |||||
|
15471
|
15471
15471-58010 Gasket, Turbo Oil Inlet[08.1987 - 01.1990] 12HT..HJ61 |
15471-58010 |
from US $2.34 |
||
|
17111
|
17111
17111-68060
Manifold, Intake
[08.1987 - 01.1990] 12HT..HJ61 |
17111-68060 |
— | ||
|
17141
|
17141
17140-68020
Manifold, Exhaust
[08.1987 - 01.1990] 12HT..HJ61 |
17140-68020 |
— | ||
|
17141G
|
17141G
90116-10117 Bolt, Stud(For Turbine Housing)[08.1987 - 01.1990] 12HT..HJ61 |
90116-10117 |
from US $1.43 |
||
|
17146
|
17146
17151-68010 Ring, Exhaust Manifold[08.1987 - 01.1990] 12HT,2H..HJ6# |
17151-68010 |
US $22.85 |
||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[08.1987 - 03.1992] 3B..BJ60; 3F..FJ62; 12HT,2H..HJ6# |
90116-10087 |
from US $2.24 |
||
|
17159
|
17159
90116-08131 Bolt, Stud(For Manifold To Cylinder Head)[08.1987 - 01.1990] 12HT..HJ61 INTAKE MANIFOLD |
90116-08131 |
US $4.30 |
||
|
17159
|
17159
90116-08222 Bolt, Stud(For Manifold To Cylinder Head)[08.1987 - 01.1990] 12HT,2H..HJ6# EXHAUST MANIFOLD |
90116-08222 |
from US $1.52 |
||
|
17167
|
17167
17167-68020
Insulator, Exhaust Manifold Heat, No.1
[08.1987 - 01.1990] 12HT..HJ61 |
17167-68020 |
— | ||
|
17169
|
17169
17169-68010
Insulator, Exhaust Manifold Heat, No.3
[08.1987 - 01.1990] 12HT..HJ61 |
17169-68010 |
— | ||
|
17171
|
17171
17171-68020 Gasket, Intake To Exhaust Manifold[08.1987 - 01.1990] 12HT..HJ61 |
17171-68020 |
US $34.44 |
||
|
17173
|
17173
17173-68021 Gasket, Exhaust Manifold To Head[08.1987 - 01.1990] 12HT..HJ61 |
17173-68021 |
US $37.46 |
||
|
17271
|
17271
17271-68010
Insulator, Turbo, No.1
[08.1987 - 01.1990] 12HT..HJ61 |
17271-68010 |
— | ||
|
17278
|
17278
17278-58010
Gasket, Turbo To Exhaust Manifold
[08.1987 - 10.1989] 12HT..HJ61 |
17278-58010 |
— | ||
| replacement | |||||
|
17278
|
17278
17278-58020 Gasket, Turbo To Exhaust Manifold[08.1987 - 10.1989] 12HT..HJ61 |
17278-58020 |
US $50.40 |
||
|
17279
|
17279
17279-58010
Gasket, Turbine Outlet Elbow
[08.1987 - 10.1989] 12HT..HJ61 |
17279-58010 |
— | ||
| replacement | |||||
|
17279
|
17279
17279-58020 Gasket, Turbine Outlet Elbow[08.1987 - 10.1989] 12HT..HJ61 |
17279-58020 |
US $39.14 |
||
|
17291
|
17291
17291-68010
Elbow, Turbine Outlet
[08.1987 - 01.1990] 12HT..HJ61 |
17291-68010 |
— | ||
|
17293
|
17293
17293-68010
Stay, Turbocharger
[08.1987 - 01.1990] 12HT..HJ61 |
17293-68010 |
— | ||
|
17293A
|
17293A
91659-61220
Bolt, Stud(For Turbocharger Stay)
[08.1987 - 01.1990] 12HT..HJ61 |
91659-61220 |
— | ||
|
9011608131
|
9011608131
90116-08131 Bolt, Stud(For Manifold To Cylinder Head) |
90116-08131 |
US $4.30 |
||
|
9011908872
|
9011908872
90119-08872 New Genuine Part |
90119-08872 |
US $2.33 |
||
|
9017908012
|
9017908012
90179-08012 NUT |
90179-08012 |
from US $1.92 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.78 |
||
|
9017910028
|
9017910028
90179-10028 Nut, Exhaust Pipe Set Stud Bolt |
90179-10028 |
from US $2.57 |
||
|
9020108045
|
9020108045
90201-08045 New Genuine Part |
90201-08045 |
US $2.51 |
||
|
9030149003
|
9030149003
90301-49003 Gasket, Injection Pump |
90301-49003 |
from US $2.15 |
||
|
9092901174
|
9092901174
90929-01174 New Genuine Part |
90929-01174 |
US $3.64 |
||
|
9161160860
|
9161160860
91611-60860 Bolt(For Rocker Support Set) |
91611-60860 |
US $1.79 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.52 |
||
