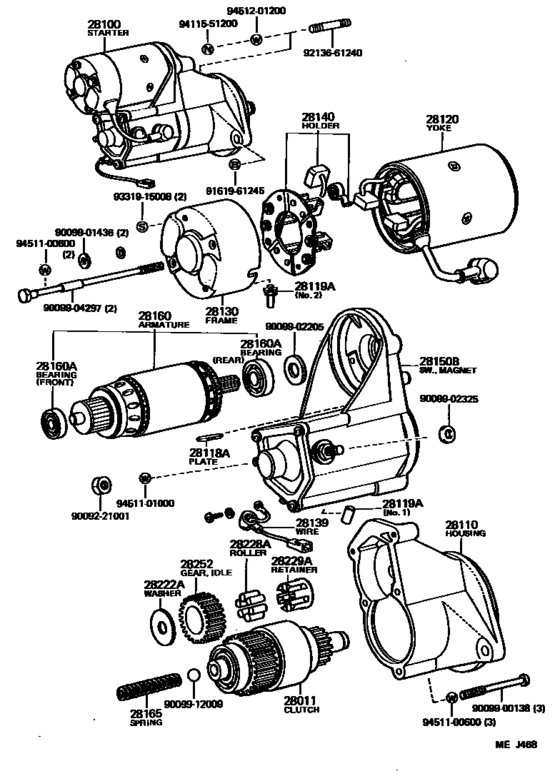

Starter ([08.1987 - ] 12V 2.5KW (8708- )12HT,2H) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- HJ61
- grade
- GX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[08.1987 - 01.1990] 12HT,3B,2H..BJ60,HJ6# |
28011-54010 |
from US $184.93 |
||
|
28100
|
28100
28100-47081 Starter Assy[08.1987 - 01.1990] 12HT,2H..HJ6# 12V 2.5KW |
28100-47081 |
US $2,052.96 |
||
| replacement | |||||
|
28100
|
28100
28100-47071 Starter Assy[08.1987 - 01.1990] 12HT,2H..HJ6# 12V 2.5KW |
28100-47071 |
US $2,052.96 |
||
|
28110
|
28110
28115-47070
Housing Assy, Starter Drive
[08.1987 - 01.1990] 12HT,2H..HJ6# |
28115-47070 |
— | ||
|
28118A
|
28118A
28118-77090
Plate(For Starter Yoke)
[08.1987 - 01.1990] 12HT,3B,2H..BJ60,HJ6# |
28118-77090 |
— | ||
|
28119A
|
28119A
28119-47070
Cover, Starter End Frame
[08.1987 - 01.1990] 12HT,2H..HJ6# NO.1 |
28119-47070 |
— | ||
|
28119A
|
28119A
28199-77090
Cover, Starter End Frame
[08.1987 - 01.1990] 3B..BJ60; 12HT,2H..HJ6# NO.2 |
28199-77090 |
— | ||
|
28120
|
28120
28120-56081
Yoke Assy, Starter
[08.1987 - 01.1990] 12HT,3B,2H..BJ60,HJ6# |
28120-56081 |
— | ||
|
28130
|
28130
28130-46030 Frame Assy, Starter Commutator End[08.1987 - 01.1990] 12HT,2H..HJ6# |
28130-46030 |
US $81.54 |
||
| replacements | |||||
|
28130
|
28130
28130-46040
Frame Assy, Starter Commutator End
[08.1987 - 01.1990] 12HT,2H..HJ6# |
28130-46040 |
— | ||
|
28130
|
28130
28199-46080 Cover, Starter End Frame[08.1987 - 01.1990] 12HT,2H..HJ6# |
28199-46080 |
from US $2.97 |
||
|
28130
|
28130
90099-04207
New Genuine Part
[08.1987 - 01.1990] 12HT,2H..HJ6# |
90099-04207 |
— | ||
|
28139
|
28139
28139-47070
Wire, Lead, No.1(For Starter)
[08.1987 - 01.1990] 12HT,2H..HJ6# |
28139-47070 |
— | ||
| replacement | |||||
|
28139
|
28139
28139-56160
Wire, Lead, No.1(For Starter)
[08.1987 - 01.1990] 12HT,2H..HJ6# |
28139-56160 |
— | ||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[08.1987 - 01.1990] 12HT,3B,2H..BJ60,HJ6# |
28140-77090 |
from US $55.39 |
||
|
28150B
|
28150B
28150-47070 Switch Assy, Magnet StarterMAGNET STARTER [08.1987 - 01.1990] 12HT,2H..HJ6# |
28150-47070 |
from US $243.73 |
||
|
28160
|
28160
28160-47040
Armature Assy, Starter
[08.1987 - 01.1990] 12HT,3B,2H..BJ60,HJ6# |
28160-47040 |
— | ||
| replacement | |||||
|
28160
|
28160
28160-54140 Armature Assy, Starter[08.1987 - 01.1990] 12HT,3B,2H..BJ60,HJ6# |
28160-54140 |
from US $180.33 |
||
|
28160A
|
28160A
90099-10107 Bearing, Starter Armature[08.1987 - 01.1990] 12HT,3B,2H..BJ60,HJ6# REAR |
90099-10107 |
from US $4.72 |
||
|
28160A
|
28160A
90099-10119 Bearing, Starter Armature[08.1987 - 01.1990] 12HT,3B,2H..BJ60,HJ6# FRONT |
90099-10119 |
from US $10.18 |
||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[08.1987 - 01.1990] 12HT,3B,2H..BJ60,HJ6# |
28165-77090 |
— | ||
|
28222A
|
28222A
28222-77090
Washer, Starter Idle Gear Clutch
[08.1987 - 01.1990] 12HT,3B,2H..BJ60,HJ6# |
28222-77090 |
— | ||
|
28228A
|
28228A
28228-56080
Roller, Starter Idle Gear Clutch
[08.1987 - 01.1990] 12HT,3B,2H..BJ60,HJ6# |
28228-56080 |
— | ||
|
28229A
|
28229A
28229-56080
Retainer, Starter Idle Gear
[08.1987 - 01.1990] 12HT,3B,2H..BJ60,HJ6# |
28229-56080 |
— | ||
|
28252
|
28252
28254-77090
Pinion, Starter Drive
[08.1987 - 01.1990] 12HT,3B,2H..BJ60,HJ6# |
28254-77090 |
— | ||
|
9009221001
|
9009221001
90092-21001 NUT |
90092-21001 |
US $0.42 |
||
|
9009900138
|
9009900138
90099-00138
New Genuine Part
|
90099-00138 |
— | ||
| replacement | |||||
|
9009900138
|
9009900138
90099-00158
SCREW
|
90099-00158 |
— | ||
|
9009901436
|
9009901436
90099-01436
New Genuine Part
|
90099-01436 |
— | ||
|
9009902205
|
9009902205
90099-02205
Washer, Felt, Starter
|
90099-02205 |
— | ||
|
9009902325
|
9009902325
90099-02325 WASHER |
90099-02325 |
from US $0.28 |
||
|
9009904297
|
9009904297
90099-04297
BOLT
|
90099-04297 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.77 |
||
|
9213661240
|
9213661240
92136-61240 Bolt, Stud(For Front Drive Shaft Bearing Bracket) |
92136-61240 |
US $1.51 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $3.05 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.70 |
||
