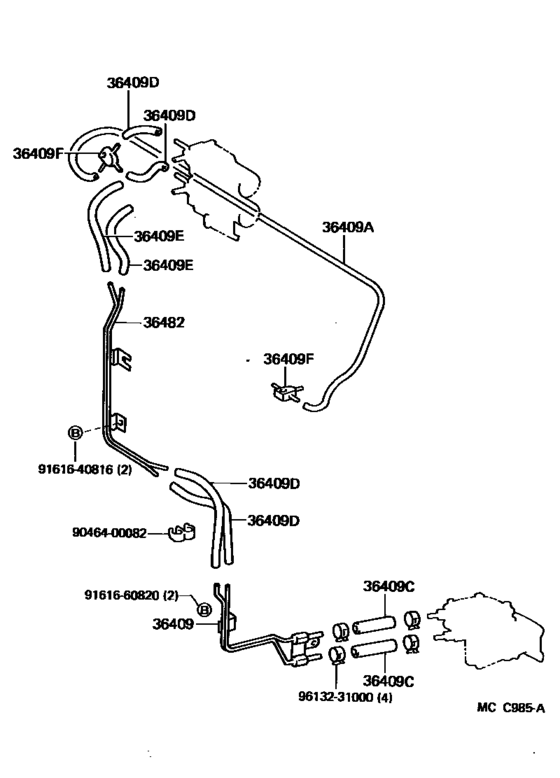

Transfer Vacuum Piping ([08.1987 - ] (8708- )HJ61) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- HJ61
- grade
- GX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36409
|
36409
36409-60040
Support Sub-Assy, Vacuum Tube Union
[08.1987 - 03.1992] FJ62,HJ6# |
36409-60040 |
— | ||
|
36409A
|
36409A
90445-08219 Hose (For Vacuum Tube)[08.1987 - 01.1990] HJ61; HJ60..RHD |
90445-08219 |
US $11.79 |
||
| replacement | |||||
|
36409A
|
36409A
90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift)[08.1987 - 01.1990] HJ61; HJ60..RHD |
90999-92006 |
from US $19.61 |
||
|
36409A
|
36409A
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)[08.1987 - 08.1988] HJ61 |
90999-92004 |
from US $8.76 |
||
|
36409C
|
36409C
95441-09200
Hose, No.1(For Clutch Booster Vacuum)
[08.1987 - 03.1992] BJ60,FJ62,HJ6#..MTM L=200 |
95441-09200 |
— | ||
| replacement | |||||
|
36409C
|
36409C
95446-09300 Hose, Solenoid To Vacuum Tube[08.1987 - 03.1992] BJ60,FJ62,HJ6#..MTM L=200 |
95446-09300 |
US $11.65 |
||
|
36409D
|
36409D
90999-92002
Air Hose (300 mm)
[08.1987 - 03.1992] BJ60,FJ62,HJ6# *H,L=300; FJ62,HJ6# *H,L=300 |
90999-92002 |
— | ||
|
36409E
|
36409E
90999-92002
Air Hose (300 mm)
[08.1987 - 03.1992] FJ62,HJ6# *H,L=300 |
90999-92002 |
— | ||
|
36409F
|
36409F
90413-04005 Way, 3, No.1 (For Front Drive Shift)[08.1987 - 03.1992] BJ60,FJ62,HJ6# |
90413-04005 |
from US $3.40 |
||
|
36482
|
36482
36482-60100
Tube, Front Drive Vacuum, No.2
[08.1987 - 03.1992] FJ62,HJ6# |
36482-60100 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9161640816
|
9161640816
91616-40816
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91616-40816 |
— | ||
| replacement | |||||
|
9161640816
|
9161640816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161660820
|
9161660820
91616-60820
Bolt(For Clutch Release Cylinder Setting)
|
91616-60820 |
— | ||
| replacement | |||||
|
9161660820
|
9161660820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9613231000
|
9613231000
96132-31000
Clip(For Ventilation Tube)
|
96132-31000 |
— | ||
| replacement | |||||
|
9613231000
|
9613231000
96132-41500 Clip(For Ventilation Tube) |
96132-41500 |
from US $1.44 |
||
