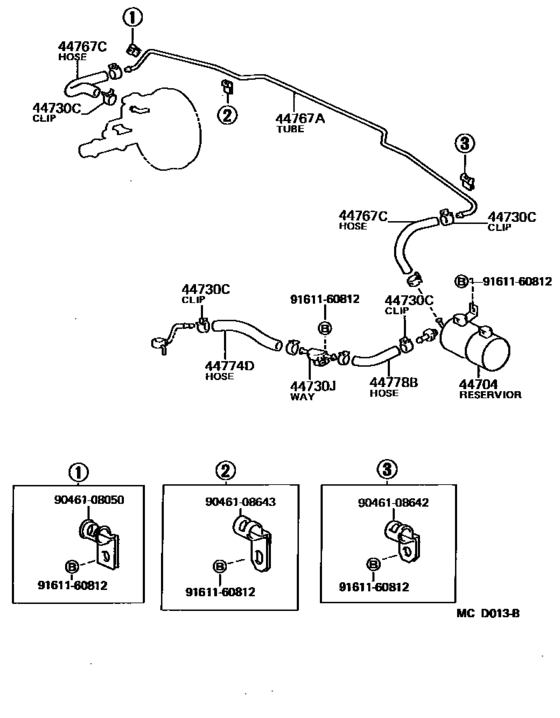

Brake Booster & Vacuum Tube ([10.1985 - ] (8510- )HJ6#..RHD..MTM) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- HJ61
- body
- WGG
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44704
|
44704
44704-60050
Reservoir Sub-Assy, Vacuum
[01.1983 - 01.1986] HJ60..RHD;BJ60,HJ61..ARL,GEN,ME |
44704-60050 |
— | ||
|
44704
|
44704
44704-60060
Reservoir Sub-Assy, Vacuum
[10.1982 - 08.1987] HJ6#..RHD..MTM W/CLUTCH BOOSTER |
44704-60060 |
— | ||
|
44730C
|
44730C
90467-16002
Clip(Vaccum Transmitting Hose No.1)
[11.1984 - 08.1987] BJ60,FJ62,HJ6# |
90467-16002 |
— | ||
| replacement | |||||
|
44730C
|
44730C
96133-41500 Clamp Or Clip(For Air Hose, No.5)[11.1984 - 08.1987] BJ60,FJ62,HJ6# |
96133-41500 |
from US $2.26 |
||
|
44730J
|
44730J
90413-09023
Way(For Booster Vacuum)
[10.1982 - 08.1987] HJ6#..RHD..MTM W/CLUTCH BOOSTER |
90413-09023 |
— | ||
|
44767A
|
44767A
44777-60091
Tube, Vacuum Reservoir To Brake Booster
[10.1985 - 08.1987] HJ6#..RHD |
44777-60091 |
— | ||
|
44767C
|
44767C
95441-09200
Hose, No.1(For Clutch Booster Vacuum)
[11.1982 - 08.1987] HJ6#..RHD BOOSTER SIDE |
95441-09200 |
— | ||
| replacement | |||||
|
44767C
|
44767C
95446-09300 Hose, Solenoid To Vacuum Tube[11.1982 - 08.1987] HJ6#..RHD BOOSTER SIDE |
95446-09300 |
US $11.65 |
||
|
44767C
|
44767C
95441-09270
Hose, No.2(For Clutch Booster Vacuum)
[10.1985 - 01.1986] HJ6#..RHD RESERVOIR SIDE |
95441-09270 |
— | ||
| replacement | |||||
|
44767C
|
44767C
95446-09270 Hose, No.1(For Clutch Booster Vacuum)VACUUM, NO.1 [10.1985 - 01.1986] HJ6#..RHD RESERVOIR SIDE |
95446-09270 |
US $3.67 |
||
|
44774D
|
44774D
44773-60080
Hose, Union To Check Valve
[10.1985 - 08.1987] HJ6#..RHD..MTM W/CLUTCH BOOSTER |
44773-60080 |
— | ||
|
44778B
|
44778B
95441-09140
Hose, Connector To Check Valve
[10.1982 - 08.1987] HJ6#..RHD..MTM W/CLUTCH BOOSTER |
95441-09140 |
— | ||
| replacement | |||||
|
44778B
|
44778B
95446-09190 Hose, Vacuum, No.1[10.1982 - 08.1987] HJ6#..RHD..MTM W/CLUTCH BOOSTER |
95446-09190 |
US $8.67 |
||
|
9046108050
|
9046108050
90461-08050 New Genuine Part |
90461-08050 |
US $4.37 |
||
|
9046108642
|
9046108642
90461-08642 New Genuine Part |
90461-08642 |
US $3.14 |
||
|
9046108643
|
9046108643
90461-08643 New Genuine Part |
90461-08643 |
US $3.20 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
