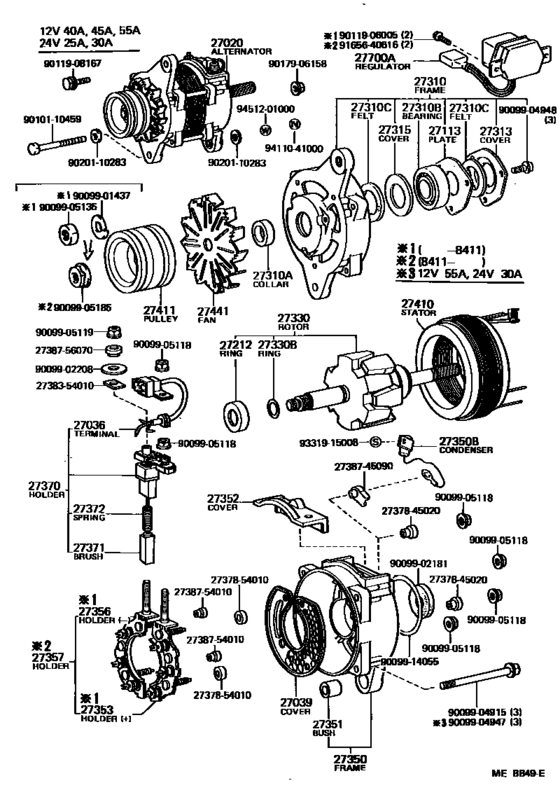

Alternator ([08.1980 - ] (8008- )12HT,2H) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- HJ61
- body
- WGG
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-68140
Alternator Assy
[10.1985 - 08.1987] 12HT,2H..HJ6#..ARL,GEN 12V 80A,12V 80A |
27020-68140 |
— | ||
|
27113
|
27113
27312-56070
Plate, Bearing Retainer, Alternator
[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
27312-56070 |
— | ||
|
27212
|
27212
27412-54040
Ring, Space(For Alternator Rotor)
[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
27412-54040 |
— | ||
|
27310
|
27310
27310-68140
Frame Assy, Drive End, Alternator
[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
27310-68140 |
— | ||
|
27310A
|
27310A
90099-19251
Collar Or Nut(For Alternator Drive End Frame)
[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
90099-19251 |
— | ||
|
27310B
|
27310B
90099-10120
Bearing(For Alternator Drive End Frame)
[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
90099-10120 |
— | ||
|
27310C
|
27310C
90099-02207
Felt(For Alternator Drive End Frame)
[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
90099-02207 |
— | ||
|
27315
|
27315
27315-56070
Cover, Alternator Felt, Inner No.1
[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
27315-56070 |
— | ||
|
27330
|
27330
27330-68140
Rotor Assy, Alternator
[10.1985 - 08.1987] 12HT,2H..HJ6#..ARL,GEN 12V 80A |
27330-68140 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-54330
Rotor Assy, Alternator
[10.1985 - 08.1987] 12HT,2H..HJ6#..ARL,GEN 12V 80A |
27330-54330 |
— | ||
|
27330B
|
27330B
90099-07108
Ring, Snap(For Alternator Rotor)
[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
90099-07108 |
— | ||
|
27350
|
27350
27350-68140
Frame Assy, Rectifier End
[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
27350-68140 |
— | ||
|
27350B
|
27350B
90099-52082 Condenser, Alternator[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
90099-52082 |
US $10.19 |
||
|
27351
|
27351
27351-56013
Bush(For Alternator Rectifier End Frame)
[08.1980 - 08.1987] 12HT,3B,2H..BJ60,HJ6# 12V 40A,45A,55A,24V 25A,30A |
27351-56013 |
— | ||
|
27352
|
27352
27388-68140
Cover, Frame Brush
[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
27388-68140 |
— | ||
| replacement | |||||
|
27352
|
27352
27388-56430
Cover, Frame Brush
[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
27388-56430 |
— | ||
|
27353
|
27353
27353-68140
Holder, W/rectifier Positive, Alternator
[10.1985 - 08.1987] 12HT,2H..HJ6#..ARL,GEN 12V 80A |
27353-68140 |
— | ||
|
27356
|
27356
27356-68140
Holder, W/rectifier Negative, Alternator
[10.1985 - 08.1987] 12HT,2H..HJ6#..ARL,GEN 12V 80A |
27356-68140 |
— | ||
|
27370
|
27370
27373-57070
Holder, Alternator Brush, A
[10.1985 - 08.1987] 12HT,2H..HJ6#..ARL,GEN 12V 80A |
27373-57070 |
— | ||
|
27371
|
27371
27371-56070
Brush, Alternator
[08.1980 - 08.1987] 3B..BJ60 12V 40A,24V 25A; 12HT,2H..HJ6# 12V 40A,24V 25A;12V 40A,45A,55A,24V 25A,30A |
27371-56070 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-54412 Brush, Alternator[08.1980 - 08.1987] 3B..BJ60 12V 40A,24V 25A; 12HT,2H..HJ6# 12V 40A,24V 25A;12V 40A,45A,55A,24V 25A,30A |
27371-54412 |
from US $3.32 |
||
|
27372
|
27372
27372-56070
Spring, Alternator Brush
[08.1980 - 08.1987] 12HT,3B,2H..BJ60,HJ6# 12V 40A,45A,55A,24V 25A,30A |
27372-56070 |
— | ||
|
27410
|
27410
27410-68140
Stator Assy, Alternator
[10.1985 - 08.1987] 12HT,2H..HJ6#..ARL,GEN 12V 80A |
27410-68140 |
— | ||
|
27411
|
27411
27411-68140
Pulley, Alternator
[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
27411-68140 |
— | ||
|
27441
|
27441
27441-54070
Fan, Alternator
[10.1985 - 08.1987] 12HT,2H..HJ6# 12V 80A,24V 40A |
27441-54070 |
— | ||
|
27700A
|
27700A
27700-57060 Regulator Assy, Generator[10.1985 - 08.1987] 12HT,2H..HJ6#..ARL,GEN 12V IC TYPE |
27700-57060 |
US $276.64 |
||
| replacements | |||||
|
27700A
|
27700A
27700-64030 Regulator Assy, Generator[10.1985 - 08.1987] 12HT,2H..HJ6#..ARL,GEN 12V IC TYPE |
27700-64030 |
US $276.64 |
||
|
27700A
|
27700A
90099-05118
New Genuine Part
[10.1985 - 08.1987] 12HT,2H..HJ6#..ARL,GEN 12V IC TYPE |
90099-05118 |
— | ||
|
2737845020
|
2737845020
27378-45020
Insulator, Alternator, No.1
|
27378-45020 |
— | ||
|
2737854010
|
2737854010
27378-54010
Insulator, Alternator, No.2
|
27378-54010 |
— | ||
|
2738354010
|
2738354010
27383-54010
Washer, Alternater Terminal Insulator, No.1
|
27383-54010 |
— | ||
|
2738745090
|
2738745090
27387-45090
Insulator, Terminal
|
27387-45090 |
— | ||
|
2738754010
|
2738754010
27387-54010
Insulator, Terminal
|
27387-54010 |
— | ||
|
2738756070
|
2738756070
27387-56070
Insulator, Terminal
|
27387-56070 |
— | ||
|
9009901437
|
9009901437
90099-01437
New Genuine Part
|
90099-01437 |
— | ||
|
9009902181
|
9009902181
90099-02181
Felt (For Alternator Rectifier End Frame)
|
90099-02181 |
— | ||
|
9009902208
|
9009902208
90099-02208
New Genuine Part
|
90099-02208 |
— | ||
|
9009904915
|
9009904915
90099-04915
New Genuine Part
|
90099-04915 |
— | ||
|
9009904947
|
9009904947
90099-04947
New Genuine Part
|
90099-04947 |
— | ||
|
9009904948
|
9009904948
90099-04948
New Genuine Part
|
90099-04948 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905135
|
9009905135
90099-05135
New Genuine Part
|
90099-05135 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9009914055
|
9009914055
90099-14055
Packing, Vacuum Pump
|
90099-14055 |
— | ||
|
9010110459
|
9010110459
90101-10459 New Genuine Part |
90101-10459 |
US $8.44 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011908167
|
9011908167
90119-08167 New Genuine Part |
90119-08167 |
US $1.79 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9020110283
|
9020110283
90201-10283 Washer, Plate(For Steering Tilt Lever) |
90201-10283 |
from US $0.76 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
