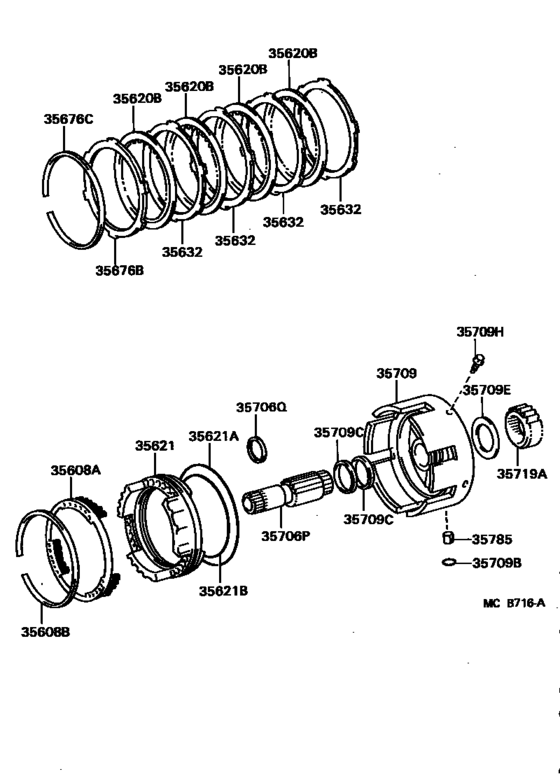

Center Support & Planetary Sun Gear (Atm) ([11.1984 - ] (8411- )4FC) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- HJ61
- body
- WGG
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35608A
|
35608A
35608-36010 Spring Sub-Assy, Overdrive Brake Return[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35608-36010 |
US $29.41 |
||
|
35608B
|
35608B
90521-99021 Ring, Hole Snap (For Overdrive Brake Return Spring)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90521-99021 |
US $4.22 |
||
| replacement | |||||
|
35608B
|
35608B
90521-99109 Ring, Hole Snap (For Overdrive Brake Return Spring)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90521-99109 |
US $3.40 |
||
|
35620B
|
35620B
35633-36010 Disc, Clutch (For Brake)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35633-36010 |
US $34.77 |
||
|
35621
|
35621
35621-36010 Piston, Overdrive Brake[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35621-36010 |
US $81.54 |
||
|
35621A
|
35621A
90301-99031 Ring, O (For Overdrive Brake Piston)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90301-99031 |
US $3.76 |
||
|
35621B
|
35621B
90301-99030 Ring, O (For Overdrive Brake Piston)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90301-99030 |
US $5.02 |
||
|
35632
|
35632
35632-36010 Plate, Brake[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35632-36010 |
US $39.66 |
||
|
35676B
|
35676B
35676-36010 Flange, Overdrive Brake, No.1[11.1984 - 08.1987] FJ62,HJ6#..4FC T=5.0,T=5.0 |
35676-36010 |
US $80.08 |
||
| replacement | |||||
|
35676B
|
35676B
35676-60010 Flange, Overdrive Brake, No.1[11.1984 - 08.1987] FJ62,HJ6#..4FC T=5.0,T=5.0 |
35676-60010 |
US $37.13 |
||
|
35676B
|
35676B
35676-36020 Flange, Brake, No.1[11.1984 - 08.1987] FJ62,HJ6#..4FC T=5.2,T=5.2 |
35676-36020 |
US $85.90 |
||
| replacement | |||||
|
35676B
|
35676B
35676-60020 Flange, Brake, No.1[11.1984 - 08.1987] FJ62,HJ6#..4FC T=5.2,T=5.2 |
35676-60020 |
US $37.13 |
||
|
35676B
|
35676B
35676-36030 Flange, Brake, No.1[11.1984 - 08.1987] FJ62,HJ6#..4FC T=5.4,T=5.4 |
35676-36030 |
US $85.90 |
||
| replacement | |||||
|
35676B
|
35676B
35676-60030 Flange, Brake, No.1[11.1984 - 08.1987] FJ62,HJ6#..4FC T=5.4,T=5.4 |
35676-60030 |
from US $37.13 |
||
|
35676B
|
35676B
35676-36040 Flange, Brake, No.1[11.1984 - 08.1987] FJ62,HJ6#..4FC T=5.6,T=5.6 |
35676-36040 |
US $85.90 |
||
| replacement | |||||
|
35676B
|
35676B
35676-60040 Flange, Brake, No.1[11.1984 - 08.1987] FJ62,HJ6#..4FC T=5.6,T=5.6 |
35676-60040 |
US $37.13 |
||
|
35676C
|
35676C
90521-99021 Ring, Hole Snap (For Overdrive Brake Return Spring)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90521-99021 |
US $4.22 |
||
| replacement | |||||
|
35676C
|
35676C
90521-99109 Ring, Hole Snap (For Overdrive Brake Return Spring)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90521-99109 |
US $3.40 |
||
|
35706P
|
35706P
35706-60010 Gear Sub-Assy, Front Planetary Sun[11.1984 - 06.1987] FJ62,HJ6#..4FC |
35706-60010 |
US $232.96 |
||
|
35706P
|
35706P
35706-60011 Gear Sub-Assy, Front Planetary Sun[06.1987 - 08.1987] FJ62,HJ61..4FC;HJ60..4FC..EUR |
35706-60011 |
US $133.95 |
||
|
35706Q
|
35706Q
90520-33009 Ring, Shaft Snap (For Front Planetary Sun Gear)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90520-33009 |
US $1.79 |
||
|
35709
|
35709
35709-36010 Support Sub-Assy, Center[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35709-36010 |
US $251.89 |
||
|
35709B
|
35709B
90301-09008 Ring, O (For Overdrive Case)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90301-09008 |
US $2.87 |
||
|
35709C
|
35709C
35617-36020 Ring, Clutch Drum Oil Seal (For Overdrive)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35617-36020 |
US $13.26 |
||
|
35709E
|
35709E
90209-52001 Washer (For Center Support)[11.1984 - 08.1987] FJ62,HJ6#..4FC T=1.8,T=1.8 |
90209-52001 |
US $5.39 |
||
| replacement | |||||
|
35709E
|
35709E
90209-52006 Washer (For Center Support)[11.1984 - 08.1987] FJ62,HJ6#..4FC T=1.8,T=1.8 |
90209-52006 |
US $3.14 |
||
|
35709E
|
35709E
90209-52002 Washer (For Center Support)[11.1984 - 08.1987] FJ62,HJ6#..4FC T=2.1,T=2.1 |
90209-52002 |
US $5.39 |
||
| replacement | |||||
|
35709E
|
35709E
90209-52007 Washer (For Center Support)[11.1984 - 08.1987] FJ62,HJ6#..4FC T=2.1,T=2.1 |
90209-52007 |
US $4.02 |
||
|
35709E
|
35709E
90209-52003 Washer (For Center Support)[11.1984 - 08.1987] FJ62,HJ6#..4FC T=2.4,T=2.4 |
90209-52003 |
US $6.84 |
||
| replacement | |||||
|
35709E
|
35709E
90209-52008 Washer (For Center Support)[11.1984 - 08.1987] FJ62,HJ6#..4FC T=2.4,T=2.4 |
90209-52008 |
US $4.02 |
||
|
35709E
|
35709E
90209-52004 Washer (For Center Support)[11.1984 - 08.1987] FJ62,HJ6#..4FC T=2.7,T=2.7 |
90209-52004 |
US $6.84 |
||
| replacement | |||||
|
35709E
|
35709E
90209-52009 Washer (For Center Support)[11.1984 - 08.1987] FJ62,HJ6#..4FC T=2.7,T=2.7 |
90209-52009 |
US $4.02 |
||
|
35709H
|
35709H
90105-10096 Bolt (For Overdrive Case & Transaxle Case Setting)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90105-10096 |
US $1.89 |
||
|
35719A
|
35719A
35719-60010 Gear, Rear Planetary Sun[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35719-60010 |
US $142.69 |
||
|
35785
|
35785
35785-36010 Retainer, Center Support Ring[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35785-36010 |
US $2.48 |
||
