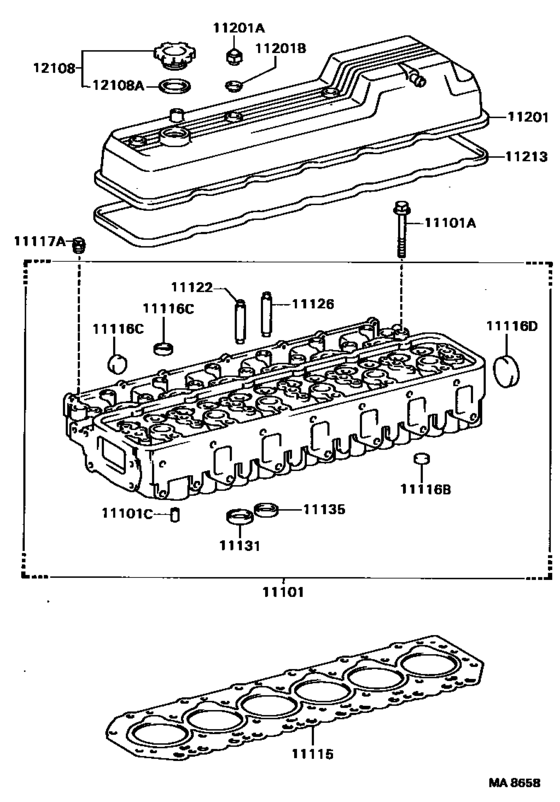

Cylinder Head ([10.1985 - ] (8510- )12HT) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- HJ61
- body
- WGG
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-68020
Head Sub-Assy, Cylinder
[10.1985 - 08.1987] 12HT..HJ61 |
11101-68020 |
— | ||
|
11101A
|
11101A
90910-02070 Bolt(For Cylinder Head Set)[04.1982 - 08.1987] 12HT,2H..HJ6# *12-1.25PX119-25 |
90910-02070 |
from US $8.91 |
||
|
11101C
|
11101C
90440-15141 Tube(For Cylinder Head)[08.1980 - 08.1987] 12HT,2H..HJ6# |
90440-15141 |
US $8.67 |
||
|
11115
|
11115
11115-68030
Gasket, Cylinder Head
[10.1985 - 08.1987] 12HT..HJ61 |
11115-68030 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-68050 Gasket, Cylinder Head[10.1985 - 08.1987] 12HT..HJ61 |
11115-68050 |
from US $98.29 |
||
|
11116B
|
11116B
96411-42500 Plug, Tight, No.1[08.1980 - 08.1987] 2F,3F..FJ6# OD=25; 12HT,2H..HJ6# OD=25 |
96411-42500 |
from US $2.95 |
||
|
11116C
|
11116C
96411-43000 Plug, Tight, No.1[08.1980 - 08.1987] 12HT,2H..HJ6# OD=30 |
96411-43000 |
from US $3.57 |
||
|
11116D
|
11116D
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1980 - 08.1987] 12HT,2H..HJ6# OD=50 |
96411-45000 |
from US $3.74 |
||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[06.1983 - 08.1987] 3B..BJ60; 12HT,2H..HJ6#; 2F..FJ60 |
90345-54005 |
from US $3.80 |
||
|
11122
|
11122
11122-68010 Bush, Intake Valve Guide[08.1980 - 08.1987] 12HT,2H..HJ6# STD,STD |
11122-68010 |
US $15.41 |
||
|
11126
|
11126
11122-68010 Bush, Intake Valve Guide[08.1980 - 08.1987] 12HT,2H..HJ6# STD,STD |
11122-68010 |
US $15.41 |
||
|
11131
|
11131
11131-68020
Seat, Intake Valve
[10.1985 - 08.1987] 12HT..HJ61 STD |
11131-68020 |
— | ||
|
11135
|
11135
11135-68010 Seat, Exhaust Valve[08.1980 - 08.1987] 12HT,2H..HJ6# STD |
11135-68010 |
US $24.32 |
||
|
11201
|
11201
11201-68020 Cover Sub-Assy, Cylinder Head[10.1985 - 08.1987] 12HT..HJ61 |
11201-68020 |
US $227.14 |
||
|
11201A
|
11201A
90176-08014 Nut, Cap(For Cylinder Head Cover)[08.1980 - 08.1987] 2F,3F..FJ6#; 12HT,2H..HJ6# |
90176-08014 |
from US $2.66 |
||
|
11201B
|
11201B
90210-13001 Washer, Seal(For Cylinder Head Cover)[08.1980 - 08.1987] 2F,3F..FJ6#; 12HT,2H..HJ6# |
90210-13001 |
from US $2.45 |
||
|
11213
|
11213
11213-68020 Gasket, Cylinder Head Cover[10.1985 - 08.1987] 12HT..HJ61 |
11213-68020 |
US $42 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[07.1986 - 08.1987] 12HT..HJ61;2H..HJ60..SRF;2H..HJ60..5F..HRF |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[07.1986 - 08.1987] 12HT..HJ61;2H..HJ60..SRF;2H..HJ60..5F..HRF |
12180-55010 |
from US $11.29 |
||
|
12108
|
12108
12180-70010
Cap Sub-Assy, Oil Filler
[09.1985 - 07.1986] 12HT,2H..HJ6# |
12180-70010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-E0010 Cap Sub-Assy, Oil Filler[09.1985 - 07.1986] 12HT,2H..HJ6# |
12180-E0010 |
from US $13 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1980 - 08.1987] 3B..BJ60; 2F..FJ60; 12HT,2H..HJ6# |
90430-37140 |
from US $1.14 |
||
