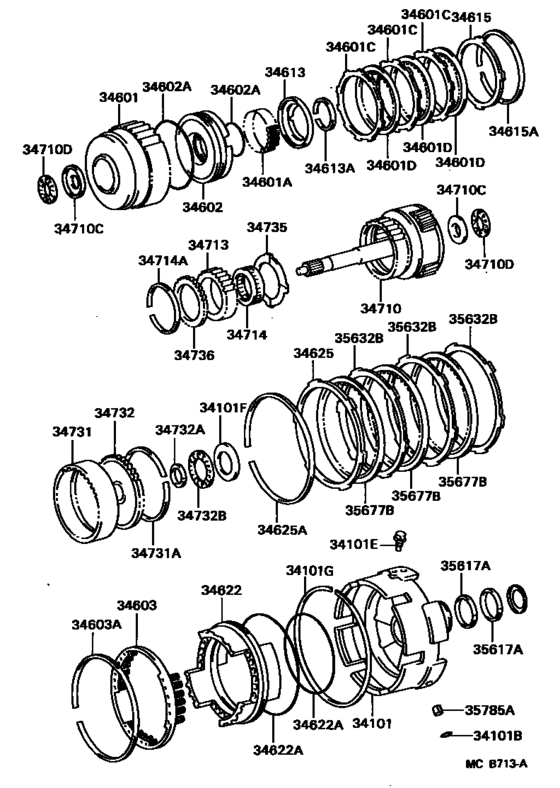

Overdrive Gear (Atm) ([11.1984 - ] (8411- )4FC) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- HJ61
- body
- WGG
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34101
|
34101
34101-60010 Case Sub-Assy, Overdrive[11.1984 - 08.1987] FJ62,HJ6#..4FC |
34101-60010 |
US $477.57 |
||
|
34101B
|
34101B
90301-09008 Ring, O (For Overdrive Case)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90301-09008 |
US $2.87 |
||
|
34101E
|
34101E
90105-10096 Bolt (For Overdrive Case & Transaxle Case Setting)[11.1984 - 08.1987] FJ62,HJ6#..4FC *10-1.25PX20.5-13 |
90105-10096 |
US $1.89 |
||
|
34101F
|
34101F
35789-36020 Race, Thrust Bearing (For Overdrive Case Front)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35789-36020 |
US $9.50 |
||
|
34101G
|
34101G
90521-99043 Ring, Hole Snap (For Overdrive Case)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90521-99043 |
US $5.39 |
||
|
34601
|
34601
34601-36010 Drum Sub-Assy, Overdrive Direct Clutch[11.1984 - 08.1987] FJ62,HJ6#..4FC |
34601-36010 |
US $448.45 |
||
|
34601A
|
34601A
90501-10087 Spring, Compression (For Overdrive Direct Clutch)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90501-10087 |
US $2.33 |
||
|
34601C
|
34601C
35634-36010 Plate, Clutch (For Overdrive)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35634-36010 |
US $22.85 |
||
|
34601D
|
34601D
35633-36020 Disc, Clutch (For Overdrive)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35633-36020 |
US $30.14 |
||
| replacement | |||||
|
34601D
|
34601D
35633-36040 Disc, Clutch (For Front Clutch)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35633-36040 |
from US $26.62 |
||
|
34602
|
34602
34602-36010 Piston Sub-Assy, Overdrive Direct Clutch[11.1984 - 08.1987] FJ62,HJ6#..4FC |
34602-36010 |
US $46.30 |
||
|
34602A
|
34602A
90301-59003 Ring, O (For Overdrive Direct Clutch Piston)[11.1984 - 08.1987] FJ62,HJ6#..4FC INNER |
90301-59003 |
US $3.84 |
||
|
34602A
|
34602A
90301-99027 Ring, O (For Overdrive Direct Clutch Piston)[11.1984 - 08.1987] FJ62,HJ6#..4FC OUTER |
90301-99027 |
US $3.76 |
||
|
34603
|
34603
35608-36010 Spring Sub-Assy, Overdrive Brake Return[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35608-36010 |
US $29.41 |
||
|
34603A
|
34603A
90521-99021 Ring, Hole Snap (For Overdrive Brake Return Spring)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90521-99021 |
US $4.22 |
||
| replacement | |||||
|
34603A
|
34603A
90521-99109 Ring, Hole Snap (For Overdrive Brake Return Spring)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90521-99109 |
US $3.40 |
||
|
34613
|
34613
34613-36010 Seat, Overdrive Direct Clutch Return Spring[11.1984 - 08.1987] FJ62,HJ6#..4FC |
34613-36010 |
US $23.73 |
||
|
34613A
|
34613A
90520-50001 Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90520-50001 |
US $2.33 |
||
|
34615
|
34615
35675-36010 Flange, Overdrive Clutch[11.1984 - 08.1987] FJ62,HJ6#..4FC T=5.0 |
35675-36010 |
US $74.26 |
||
| replacement | |||||
|
34615
|
34615
35675-60010 Flange, Overdrive Clutch[11.1984 - 08.1987] FJ62,HJ6#..4FC T=5.0 |
35675-60010 |
US $46.59 |
||
|
34615A
|
34615A
90521-99017 Ring, Hole Snap (For Overdrive Clutch Flange)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90521-99017 |
US $1.49 |
||
|
34622
|
34622
35621-36010 Piston, Overdrive Brake[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35621-36010 |
US $81.54 |
||
|
34622A
|
34622A
90301-99030 Ring, O (For Overdrive Brake Piston)[11.1984 - 08.1987] FJ62,HJ6#..4FC OUTER |
90301-99030 |
US $5.02 |
||
|
34622A
|
34622A
90301-99031 Ring, O (For Overdrive Brake Piston)[11.1984 - 08.1987] FJ62,HJ6#..4FC INNER |
90301-99031 |
US $3.76 |
||
|
34625
|
34625
35676-36010 Flange, Overdrive Brake, No.1[11.1984 - 08.1987] FJ62,HJ6#..4FC T=5.0 |
35676-36010 |
US $80.08 |
||
| replacement | |||||
|
34625
|
34625
35676-60010 Flange, Overdrive Brake, No.1[11.1984 - 08.1987] FJ62,HJ6#..4FC T=5.0 |
35676-60010 |
US $37.13 |
||
|
34625A
|
34625A
90521-99021 Ring, Hole Snap (For Overdrive Brake Return Spring)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90521-99021 |
US $4.22 |
||
| replacement | |||||
|
34625A
|
34625A
90521-99109 Ring, Hole Snap (For Overdrive Brake Return Spring)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90521-99109 |
US $3.40 |
||
|
34710
|
34710
34710-36010 Gear Assy, Overdrive Planetary[11.1984 - 08.1987] FJ62,HJ6#..4FC |
34710-36010 |
US $939.12 |
||
|
34710C
|
34710C
35789-36010
Race, Thrust Bearing(For Overdrive Planetary Gear)
[11.1984 - 08.1987] FJ62,HJ6#..4FC RR |
35789-36010 |
— | ||
|
34710C
|
34710C
35789-36070
Race, Thrust Bearing(For Overdrive Planetary Gear)
[11.1984 - 08.1987] FJ62,HJ6#..4FC FR |
35789-36070 |
— | ||
|
34710D
|
34710D
90374-25004
Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
[11.1984 - 08.1987] FJ62,HJ6#..4FC RR |
90374-25004 |
— | ||
|
34710D
|
34710D
90374-28007 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)[11.1984 - 08.1987] FJ62,HJ6#..4FC FR |
90374-28007 |
US $7.86 |
||
|
34713
|
34713
34713-36010 Race, 1 Way Clutch Outer (For Overdrive)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
34713-36010 |
US $67.41 |
||
|
34714
|
34714
35791-36010 Clutch, 1 Way(For Overdrive)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35791-36010 |
US $81.54 |
||
|
34714A
|
34714A
90521-90002 Ring, Hole Snap(For 1 Way Clutch)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90521-90002 |
US $2.62 |
||
|
34731
|
34731
34731-36010
Gear, Overdrive Planetary Ring
[11.1984 - 08.1987] FJ62,HJ6#..4FC |
34731-36010 |
— | ||
|
34731A
|
34731A
90521-99019 Ring, Hole Snap (For Overdrive Planetary Ring Gear)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90521-99019 |
US $4.08 |
||
|
34732
|
34732
34732-36010 Flange, Overdrive Planetary Ring Gear[11.1984 - 08.1987] FJ62,HJ6#..4FC |
34732-36010 |
US $97.55 |
||
| replacement | |||||
|
34732
|
34732
34732-36011
Flange, Overdrive Planetary Ring Gear
[11.1984 - 08.1987] FJ62,HJ6#..4FC |
34732-36011 |
— | ||
|
34732A
|
34732A
35712-36010 Ring, Oil Seal (For Overdrive Planetary Ring Gear Flange)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35712-36010 |
US $5.42 |
||
|
34732B
|
34732B
90374-34001 Bearing, Thrust(For Overdrive Planetary Ring Gear Flange)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90374-34001 |
US $14.87 |
||
|
34735
|
34735
34737-36010 Washer, Overdrive Planetary Gear Thrust, No.1[11.1984 - 08.1987] FJ62,HJ6#..4FC |
34737-36010 |
US $23.44 |
||
|
34736
|
34736
34738-36010 Washer, Overdrive Planetary Gear Thrust, No.2[11.1984 - 08.1987] FJ62,HJ6#..4FC |
34738-36010 |
US $11.53 |
||
|
35617A
|
35617A
35617-36020 Ring, Clutch Drum Oil Seal (For Overdrive)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35617-36020 |
US $13.26 |
||
|
35632B
|
35632B
35632-36010 Plate, Brake[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35632-36010 |
US $39.66 |
||
|
35677B
|
35677B
35633-36010 Disc, Clutch (For Brake)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35633-36010 |
US $34.77 |
||
|
35785A
|
35785A
35785-36010 Retainer, Center Support Ring[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35785-36010 |
US $2.48 |
||
