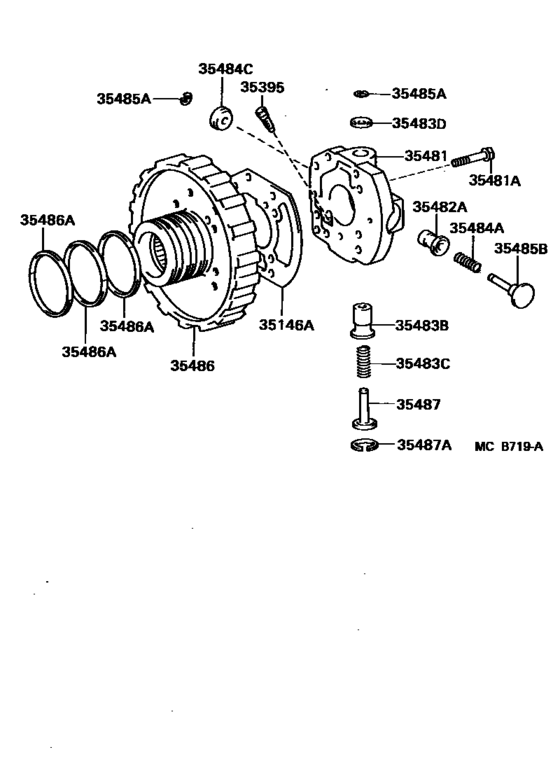

Rear Oil Pump & Governor (Atm) ([11.1984 - ] (8411- )4FC) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- HJ61
- body
- WGG
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35146A
|
35146A
35146-36010 Gasket, Governor Body[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35146-36010 |
US $5.07 |
||
|
35395
|
35395
35395-36010
Strainer, Governor Oil
[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35395-36010 |
— | ||
|
35481
|
35481
35481-36010
Body, Governor
[11.1984 - 02.1987] FJ62,HJ6#..4FC |
35481-36010 |
— | ||
|
35481
|
35481
35481-36011
Body, Governor
[02.1987 - 08.1987] FJ62,HJ61..4FC;HJ60..4FC..EUR |
35481-36011 |
— | ||
| replacement | |||||
|
35481
|
35481
35481-36012
Body, Governor
[02.1987 - 08.1987] FJ62,HJ61..4FC;HJ60..4FC..EUR |
35481-36012 |
— | ||
|
35481A
|
35481A
90105-06069 Bolt (For Governor Body)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90105-06069 |
US $0.87 |
||
|
35482A
|
35482A
35482-36010 Valve, Governor, No.1[11.1984 - 08.1987] HJ6#..4FC |
35482-36010 |
US $9.90 |
||
| replacement | |||||
|
35482A
|
35482A
35482-36011 Valve, Governor, No.1[11.1984 - 08.1987] HJ6#..4FC |
35482-36011 |
US $9.76 |
||
|
35483B
|
35483B
35483-36010 Valve, Governor, No.2[11.1984 - 08.1987] HJ6#..4FC |
35483-36010 |
US $7.28 |
||
|
35483C
|
35483C
90501-12081 Spring, Compression (For Governor Valve No.2)[11.1984 - 08.1987] HJ6#..4FC |
90501-12081 |
US $1.89 |
||
|
35483D
|
35483D
90561-06006 Spacer (For Governor Valve No.2)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90561-06006 |
US $1.60 |
||
|
35484A
|
35484A
90501-07038 Spring, Compression (For Governor Weight)[11.1984 - 08.1987] HJ6#..4FC |
90501-07038 |
US $2.18 |
||
| replacement | |||||
|
35484A
|
35484A
90501-07068 Spring, Compression (For Governor Weight)[11.1984 - 08.1987] HJ6#..4FC |
90501-07068 |
US $2.33 |
||
|
35484C
|
35484C
35484-36010 Weight, Governor[11.1984 - 02.1987] HJ6#..4FC |
35484-36010 |
US $9.03 |
||
| replacement | |||||
|
35484C
|
35484C
35484-36011 Weight, Governor[11.1984 - 02.1987] HJ6#..4FC |
35484-36011 |
US $8.88 |
||
|
35484C
|
35484C
35484-36011 Weight, Governor[02.1987 - 08.1987] HJ61..4FC;HJ60..4FC..EUR |
35484-36011 |
US $8.88 |
||
|
35485A
|
35485A
90523-05002 Ring, E (For Governor Valve Shaft)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90523-05002 |
US $1.60 |
||
|
35485B
|
35485B
35485-36010 Shaft, Governor Valve, No.1[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35485-36010 |
US $15.58 |
||
|
35486
|
35486
35486-36010 Support, Governor Body[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35486-36010 |
US $458.64 |
||
|
35486A
|
35486A
35735-36010 Ring (For Governor Body Support)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35735-36010 |
US $14.50 |
||
|
35487
|
35487
35487-36010 Shaft, Governor Valve, No.2[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35487-36010 |
US $12.81 |
||
|
35487A
|
35487A
96151-02500 Ring, Snap(For Hydraulic Gear Motor)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
96151-02500 |
US $1.31 |
||
