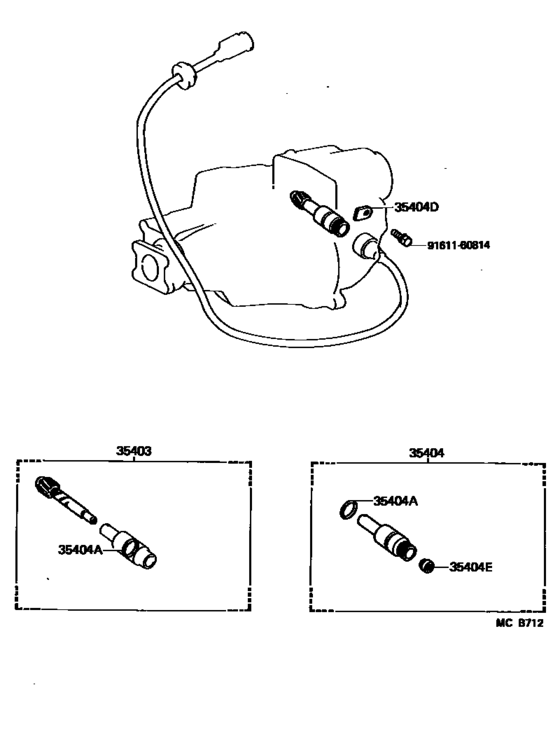

Speedometer Driven Gear (Atm) ([11.1984 - ] (8411- )4FC) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- HJ61
- body
- WGG
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35403
|
35403
33403-69075 Gear Sub-Assy, Speedometer Driven (Mtm)SPEEDOMETER DRIVEN (MTM) [10.1985 - 08.1987] FJ62,HJ6#..4FC..(ARL,GEN,ME) N=16,MARK:16X6 |
33403-69075 |
from US $23.52 |
||
|
35404
|
35404
33404-30040 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
33404-30040 |
from US $14.31 |
||
|
35404A
|
35404A
90301-18018 Ring, O (For Atm Speedometer Driven Hole Cover)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90301-18018 |
from US $3.08 |
||
|
35404D
|
35404D
33485-30020 Plate, Speedometer Sleeve Lock (For Atm)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
33485-30020 |
from US $1.62 |
||
|
35404E
|
35404E
90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90310-09001 |
from US $2.87 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
