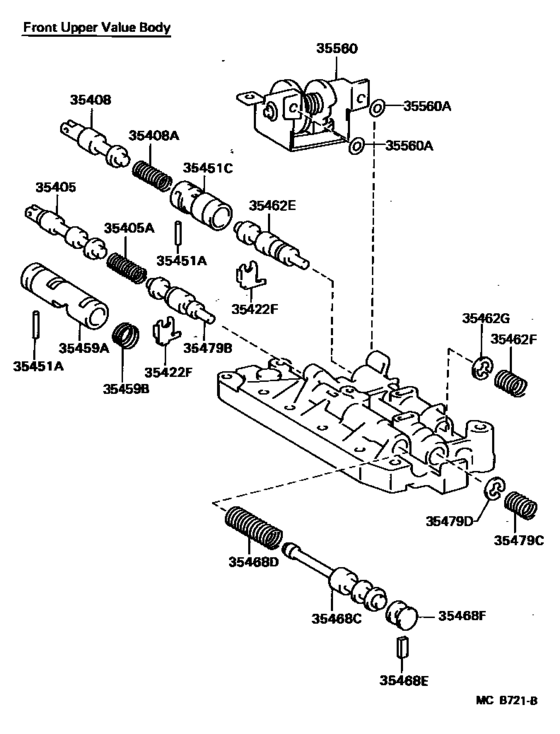

Valve Body & Oil Strainer (Atm) ([11.1984 - ] (8411- )4FC) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- HJ61
- body
- WGG
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35405
|
35405
35405-36010 Plug Sub-Assy, Secondary Down Shift[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35405-36010 |
US $32.47 |
||
|
35405A
|
35405A
90501-10093 Spring, Compression(For Secondary Down Shift Plug)[11.1984 - 08.1987] HJ6#..4FC |
90501-10093 |
US $1.89 |
||
|
35408
|
35408
35408-36010
Plug Sub-Assy, Primary Down Shift
[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35408-36010 |
— | ||
|
35408A
|
35408A
90501-11030 Spring, Compression (For Primary Down Shift Plug)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90501-11030 |
from US $1.51 |
||
|
35422F
|
35422F
35422-22010 Stopper, Valve Vibrating[11.1984 - 08.1987] FJ62,HJ6#..4FC SECONDARY THROTTLE VALVE |
35422-22010 |
US $3.49 |
||
|
35422F
|
35422F
35422-36010 St0Pper, Valve Vibrating[11.1984 - 08.1987] FJ62,HJ6#..4FC PRIMARY THROTTLE VALVE |
35422-36010 |
US $3.20 |
||
|
35451A
|
35451A
90250-03036 Pin, Straight (For Throttle Valve Sleeve)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90250-03036 |
US $0.73 |
||
|
35451C
|
35451C
35451-36010
Sleeve, Throttle Valve, No.1
[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35451-36010 |
— | ||
|
35459A
|
35459A
35459-36010 Sleeve, Throttle Valve, No.2[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35459-36010 |
US $17.04 |
||
|
35459B
|
35459B
90501-15006 Spring (For Throttle Valve Sleeve)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90501-15006 |
US $1.89 |
||
|
35462E
|
35462E
35462-36010 Valve, Throttle[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35462-36010 |
US $17.47 |
||
|
35462F
|
35462F
90501-07049 Spring, Compression (For Primary Down Shift Plug)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90501-07049 |
from US $1.51 |
||
|
35462G
|
35462G
90523-06005 Ring, E (For Throttle Valve)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90523-06005 |
US $1.75 |
||
|
35468C
|
35468C
35468-36010 Valve, Secondary Regulator[11.1984 - 06.1987] FJ62,HJ6#..4FC |
35468-36010 |
US $16.45 |
||
| replacement | |||||
|
35468C
|
35468C
35468-36011 Valve, Secondary Regulator[11.1984 - 06.1987] FJ62,HJ6#..4FC |
35468-36011 |
US $16.16 |
||
|
35468C
|
35468C
35468-36011 Valve, Secondary Regulator[06.1987 - 08.1987] FJ62,HJ61..4FC;HJ60..4FC..EUR |
35468-36011 |
US $16.16 |
||
|
35468D
|
35468D
90501-17008 Spring, Compression (For Secondary Regulator Valve)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90501-17008 |
US $2.48 |
||
|
35468E
|
35468E
90282-03006 Key, Straight (For Reverse Control Valve)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90282-03006 |
US $0.87 |
||
|
35468F
|
35468F
90339-04010 Plug (For Secondary Regulator Valve)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90339-04010 |
US $1.31 |
||
|
35479B
|
35479B
35479-36010 Valve, Secondary Throttle[11.1984 - 08.1987] FJ62,HJ6#..4FC |
35479-36010 |
US $14.10 |
||
|
35479C
|
35479C
90501-07049 Spring, Compression (For Primary Down Shift Plug)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90501-07049 |
from US $1.51 |
||
|
35479D
|
35479D
90523-06005 Ring, E (For Throttle Valve)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90523-06005 |
US $1.75 |
||
|
35560
|
35560
35560-60010 Cam Assy, Throttle Valve[10.1985 - 08.1987] HJ61..4FC |
35560-60010 |
US $113.57 |
||
|
35560A
|
35560A
90564-06002 Shim (For Throttle Valve Cam)[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90564-06002 |
US $1.60 |
||
