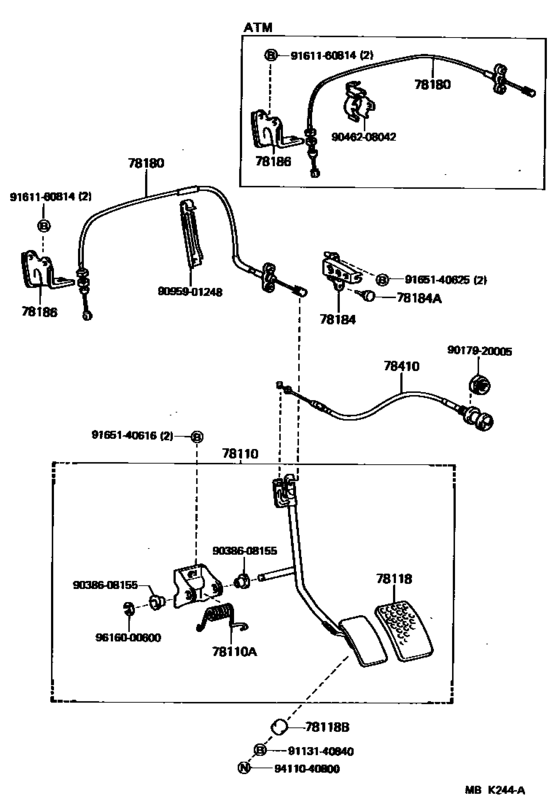

Accelerator Link ([10.1985 - ] (8510- )HJ61..ARL) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Europe
- Frame
- HJ61
- body
- WGG
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110
|
78110
78120-90A05 Rod Assy, Accelerator Pedal[11.1984 - 08.1987] BJ60,FJ62,HJ6#..RHD W/THROTTLE BUTTON |
78120-90A05 |
US $132.50 |
||
|
78110A
|
78110A
90508-29017 Spring (For Accelerator Pedal Rod)[10.1985 - 08.1987] HJ61 |
90508-29017 |
US $2.97 |
||
|
78118
|
78118
78111-95110 Pedal, Accelerator[08.1980 - 08.1987] BJ60,FJ6#,HJ6# |
78111-95110 |
from US $8.42 |
||
|
78118B
|
78118B
78118-90K00
Stopper, Accelerator Pedal
[11.1984 - 08.1987] BJ60,FJ62,HJ6# |
78118-90K00 |
— | ||
| replacement | |||||
|
78118B
|
78118B
45619-14010 Cover, Knuckle Stopper[11.1984 - 08.1987] BJ60,FJ62,HJ6# |
45619-14010 |
US $9.68 |
||
|
78180
|
78180
78180-90A21
Wire Assy, Accelerator
[10.1985 - 08.1987] HJ61..4FC; HJ60..RHD..4FC |
78180-90A21 |
— | ||
|
78184
|
78184
78184-90A02
Channel, Accelerator Idle Adjusting Stopper
[10.1985 - 08.1987] HJ61; HJ60..LHD..MTM |
78184-90A02 |
— | ||
|
78184A
|
78184A
90541-06008 Cushion, No.1(For Clutch Pedal)[08.1980 - 08.1987] BJ60,FJ6#,HJ6#..RHD |
90541-06008 |
from US $1.50 |
||
|
78186
|
78186
78186-90A03
Support, Accelerator Control Cable, No.1
[10.1985 - 08.1987] HJ61 |
78186-90A03 |
— | ||
|
78410
|
78410
78410-90A00
Cable Assy, Throttle Control
[11.1984 - 08.1987] BJ60,FJ62,HJ6#..RHD |
78410-90A00 |
— | ||
| replacement | |||||
|
78410
|
78410
78410-90A09
Cable Assy, Throttle Control
[11.1984 - 08.1987] BJ60,FJ62,HJ6#..RHD |
78410-90A09 |
— | ||
|
9017920005
|
9017920005
90179-20005
New Genuine Part
|
90179-20005 |
— | ||
|
9038608155
|
9038608155
90386-08155 Bush (For Accelerator Pedal Rod) |
90386-08155 |
US $1.14 |
||
|
9046208042
|
9046208042
90462-08042
Clamp, Cord
|
90462-08042 |
— | ||
| replacement | |||||
|
9046208042
|
9046208042
19242-15120
Clamp, Cord
|
19242-15120 |
— | ||
|
9095901248
|
9095901248
90959-01248
New Genuine Part
|
90959-01248 |
— | ||
|
9113140840
|
9113140840
91131-40840
Bolt, Accelerator Pedal Stopper
|
91131-40840 |
— | ||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.25 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.82 |
||
