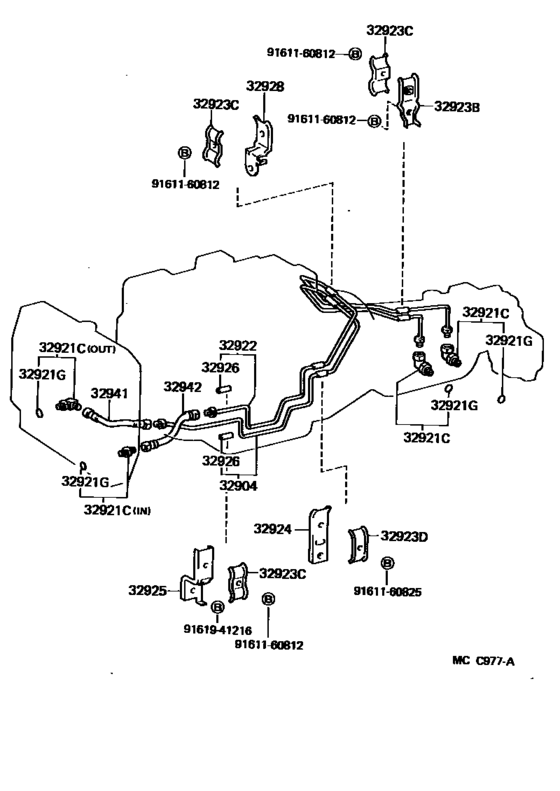

Oil Cooler & Tube (Atm) ([10.1985 - ] (8510- )HJ61..4FC) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Europe
- Frame
- HJ61
- body
- WGG
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32904
|
32904
32904-60040 Tube Sub-Assy, Oil Cooler Inlet, No.1[10.1985 - 08.1987] HJ61..4FC |
32904-60040 |
US $63.34 |
||
|
32921C
|
32921C
90404-16026 Union(For Oil Cooler Tube)[10.1985 - 08.1987] HJ61..4FC RADIATOR SIDE,INLET |
90404-16026 |
US $8.30 |
||
|
32921C
|
32921C
90407-14005
Union(For Oil Cooler Tube)
[11.1984 - 08.1987] FJ62,HJ6#..4FC RADIATOR SIDE,OUTLET |
90407-14005 |
— | ||
|
32921C
|
32921C
90407-16006
Union(For Oil Cooler Tube)
[11.1984 - 08.1987] FJ62,HJ6#..4FC TRANSMISSION SIDE |
90407-16006 |
— | ||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90301-11006 |
from US $2.43 |
||
|
32922
|
32922
32922-60040 Tube, Oil Cooler Outlet, No.1[10.1985 - 08.1987] HJ61..4FC |
32922-60040 |
US $31.30 |
||
|
32923B
|
32923B
32923-36010 Clamp, Automatic Transmission Oil Cooler Tube, No.1[11.1984 - 08.1987] FJ62,HJ6#..4FC |
32923-36010 |
US $8.74 |
||
|
32923C
|
32923C
90462-12038
Clamp, Automatic Transmission Oil Cooler Tube, No.4
[11.1984 - 08.1987] FJ62,HJ6#..4FC |
90462-12038 |
— | ||
|
32923D
|
32923D
90949-01189 Clamp, Automatic Transmission Oil Cooler Tube, No.5[10.1985 - 08.1987] HJ61..4FC |
90949-01189 |
US $3.79 |
||
|
32924
|
32924
32924-60040 Clamp, Oil Cooler Tube, No.2[10.1985 - 08.1987] HJ61..4FC |
32924-60040 |
US $5.97 |
||
|
32925
|
32925
32925-60050 Clamp, Oil Cooler Tube, No.3[10.1985 - 08.1987] HJ61..4FC |
32925-60050 |
US $9.17 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[10.1985 - 08.1987] HJ61..4FC L=35,ID=10 |
32926-30020 |
US $3.05 |
||
|
32928
|
32928
32928-60020 Clamp, Flexible Hose, No.1[11.1984 - 08.1987] HJ6#..4FC |
32928-60020 |
US $25.19 |
||
|
32941
|
32941
32942-60040 Hose(For Oil Cooler Inlet)[10.1985 - 08.1987] HJ61..4FC |
32942-60040 |
US $115.02 |
||
|
32942
|
32942
32942-60020 Hose(For Oil Cooler Outlet)[10.1985 - 08.1987] HJ61..4FC |
32942-60020 |
US $177.63 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161941216
|
9161941216
91619-41216 New Genuine Part |
91619-41216 |
US $1.60 |
||
