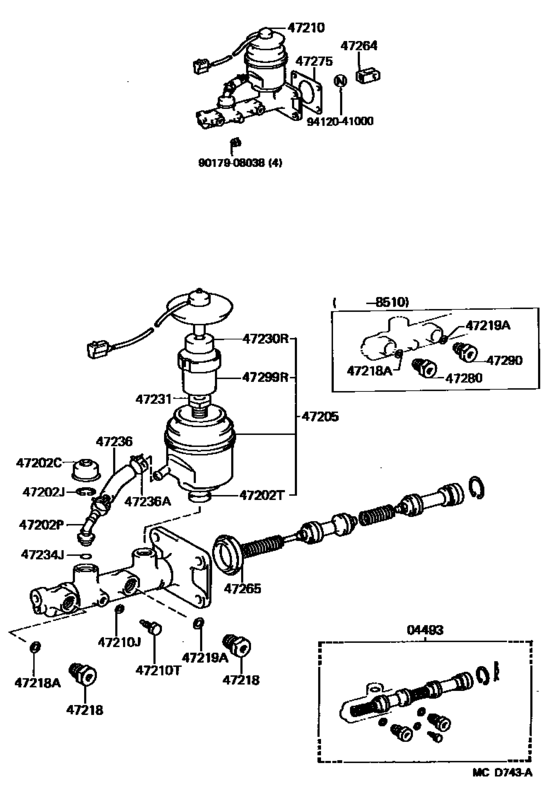

Brake Master Cylinder ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- HJ61
- body
- WGV
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-60160
Cylinder Kit, Brake Master
[11.1984 - 08.1987] BJ61,HJ6# FR DISC BRAKE |
04493-60160 |
— | ||
| replacement | |||||
|
04493
|
04493
04493-60170 Cylinder Kit, Brake MasterBRAKE MASTER [11.1984 - 08.1987] BJ61,HJ6# FR DISC BRAKE |
04493-60170 |
US $113.16 |
||
|
47202C
|
47202C
47265-20060
Boot, Reservoir, No.1(For Brake Master Cylinder Side)
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
47265-20060 |
— | ||
|
47202J
|
47202J
96151-02000 Ring, Snap (For Low Coast Shift Control Valve)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
96151-02000 |
US $1.27 |
||
|
47202P
|
47202P
90407-10004
Union, Reservoir(For Brake Master Cylinder Side)
[11.1984 - 08.1987] BJ61,HJ6# |
90407-10004 |
— | ||
|
47202T
|
47202T
90562-18151
Ring(For Clutch Master Cylinder Reservoir)
[11.1984 - 08.1987] BJ61,HJ6# |
90562-18151 |
— | ||
|
47205
|
47205
47202-60070
Reservoir Sub-Assy, Brake Master Cylinder
[11.1984 - 08.1987] BJ61,HJ6# |
47202-60070 |
— | ||
|
47210
|
47210
47201-60290
Cylinder Sub-Assy, Brake Master
[11.1984 - 08.1987] BJ61,HJ6# FR DISC BRAKE |
47201-60290 |
— | ||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90430-06104 |
from US $1.79 |
||
|
47210T
|
47210T
90109-06008 Bolt(For Brake Master Cylinder)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90109-06008 |
US $0.44 |
||
|
47218
|
47218
47218-12040
Plug, Master Cylinder Fluid Outlet
[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
47218-12040 |
— | ||
|
47218A
|
47218A
90430-09253
Gasket(For Clutch Master Cylinder Accumulator)
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90430-09253 |
— | ||
|
47219A
|
47219A
90430-09253
Gasket(For Clutch Master Cylinder Accumulator)
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90430-09253 |
— | ||
|
47230R
|
47230R
84460-20051
Cap Assy, Brake Master Cylinder Reservoir Filler
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
84460-20051 |
— | ||
| replacement | |||||
|
47230R
|
47230R
84460-12011 Cap Assy, Brake Master Cylinder Reservoir Filler[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
84460-12011 |
US $83.64 |
||
|
47231
|
47231
47231-20010 Bolt, Clutch Master Cylinder Reservoir Set[11.1984 - 08.1987] BJ61,HJ6# |
47231-20010 |
US $4.08 |
||
|
47234J
|
47234J
90301-14001 Ring, O(For Clutch Master Cylinder Union)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90301-14001 |
US $3.67 |
||
|
47236
|
47236
47234-14010 Tube, Reservoir, No.1[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU FR DISC BRAKE |
47234-14010 |
US $9.09 |
||
|
47236A
|
47236A
90467-16001
Clamp, Oil Cooler Hose
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90467-16001 |
— | ||
| replacement | |||||
|
47236A
|
47236A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
96133-41500 |
from US $2.26 |
||
|
47264
|
47264
47264-22010 Clevis, Master Cylinder Push Rod[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
47264-22010 |
US $6.12 |
||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..CBU FR DISC BRAKE |
47265-20050 |
from US $4.52 |
||
|
47275
|
47275
47275-22010 Gasket, Brake Master Cylinder[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
47275-22010 |
US $4.48 |
||
|
47299R
|
47299R
47299-14010
Strainer, Brake Master Cylinder Reservoir
[04.1982 - 08.1987] BJ6#,FJ6#,HJ6# |
47299-14010 |
— | ||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.74 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
