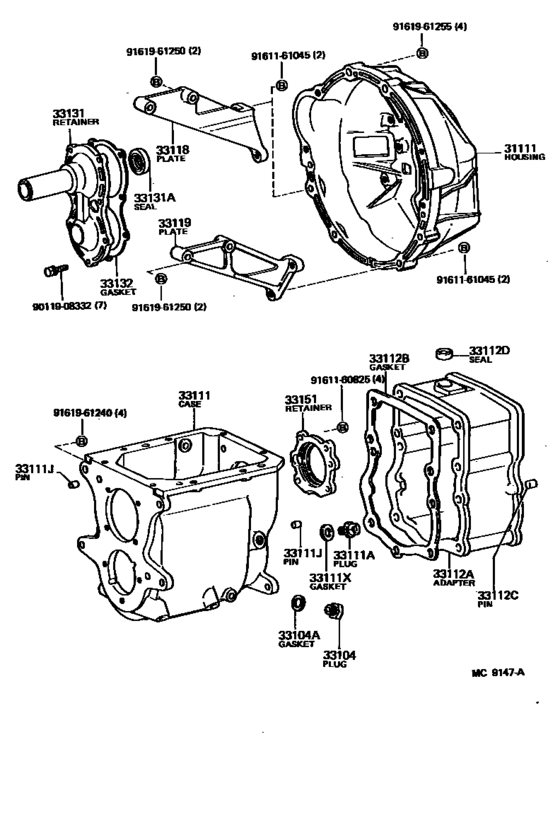

Clutch Housing & Transmission Case (Mtm) ([10.1982 - ] (8210- )HJ6#..5F) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- HJ61
- body
- WGV
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-60170 Housing, Clutch[05.1985 - 08.1987] HJ6#..5F W/TACHOMETER |
31111-60170 |
US $854.67 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.1984 - 08.1987] BJ61,FJ6#,HJ6# |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1984 - 08.1987] BJ61,FJ6#,HJ6# |
90430-T0021 |
US $0.99 |
||
|
33111
|
33111
33111-60080 Case, Manual Transmission[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
33111-60080 |
US $690.14 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[04.1983 - 08.1987] BJ61,FJ6#,HJ6# |
90341-18006 |
from US $3.23 |
||
|
33111J
|
33111J
90250-10214 Pin, Straight(For End Plate)[10.1982 - 08.1987] BJ61,FJ62,HJ6#..5F 長さ＝１４，外径＝１０,L=14,OD=10 |
90250-10214 |
from US $1.35 |
||
|
33111J
|
33111J
90250-12146 Pin, Straight(For Flywheel Housing)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# 長さ＝１７，外径＝１２,L=17,OD=12 |
90250-12146 |
US $2.15 |
||
|
33111J
|
33111J
90250-12216 Pin, Straight(For Manual Transmission Case)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# 長さ＝１４，外径＝１２,L=14,OD=12 |
90250-12216 |
US $2.04 |
||
|
33111X
|
33111X
90430-18008 Gasket[08.1984 - 08.1987] BJ61,FJ6#,HJ6# |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1984 - 08.1987] BJ61,FJ6#,HJ6# |
90430-T0021 |
US $0.99 |
||
|
33112A
|
33112A
36117-60020 Adapter, Transfer[10.1982 - 03.1987] BJ61,HJ6#..5F |
36117-60020 |
US $337.79 |
||
| replacement | |||||
|
33112A
|
33112A
36117-60021
Adapter, Transfer
[10.1982 - 03.1987] BJ61,HJ6#..5F |
36117-60021 |
— | ||
|
33112A
|
33112A
36117-60021
Adapter, Transfer
[03.1987 - 08.1987] HJ6#..5F |
36117-60021 |
— | ||
|
33112B
|
33112B
33142-60020 Gasket, Transfer Adapter[10.1982 - 08.1987] BJ61,FJ62,HJ6#..5F |
33142-60020 |
from US $6.92 |
||
|
33112C
|
33112C
90250-12216 Pin, Straight(For Manual Transmission Case)[10.1982 - 08.1987] BJ61,FJ62,HJ6#..5F |
90250-12216 |
US $2.04 |
||
|
33112D
|
33112D
90312-17001 Seal, Oil(For Transfer Adapter)[10.1982 - 08.1987] BJ61,FJ62,HJ6#..5F |
90312-17001 |
from US $1.97 |
||
|
33118
|
33118
33118-60010
Plate, Stiffener, Rh(Mtm)
[10.1982 - 08.1987] HJ6#..5F |
33118-60010 |
— | ||
|
33119
|
33119
33119-60010
Plate, Stiffener, Lh(Mtm)
[10.1982 - 08.1987] HJ6#..5F |
33119-60010 |
— | ||
|
33131
|
33131
33131-60040 Retainer, Bearing, Front(Mtm)[10.1985 - 08.1987] FJ62,HJ6#..5F |
33131-60040 |
from US $83.52 |
||
|
33131A
|
33131A
90311-32013 Seal, Oil(For Transmission Front Bearing Retainer)[10.1985 - 08.1987] BJ61,FJ62,HJ6#..MTM |
90311-32013 |
from US $5.56 |
||
|
33132
|
33132
33132-60020 Gasket, Front Bearing Retainer(Mtm)[10.1985 - 08.1987] BJ61,FJ62,HJ6#..MTM |
33132-60020 |
US $4.84 |
||
|
33151
|
33151
33151-60010
Retainer, Output Shaft Rear Bearing(Mtm)
[10.1982 - 08.1987] BJ61,FJ62,HJ6#..5F |
33151-60010 |
— | ||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.20 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9161961240
|
9161961240
91619-61240 New Genuine Part |
91619-61240 |
US $1.38 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
|
9161961255
|
9161961255
91619-61255 Bolt(For Transaxle & Engine Setting) |
91619-61255 |
US $2.15 |
||
