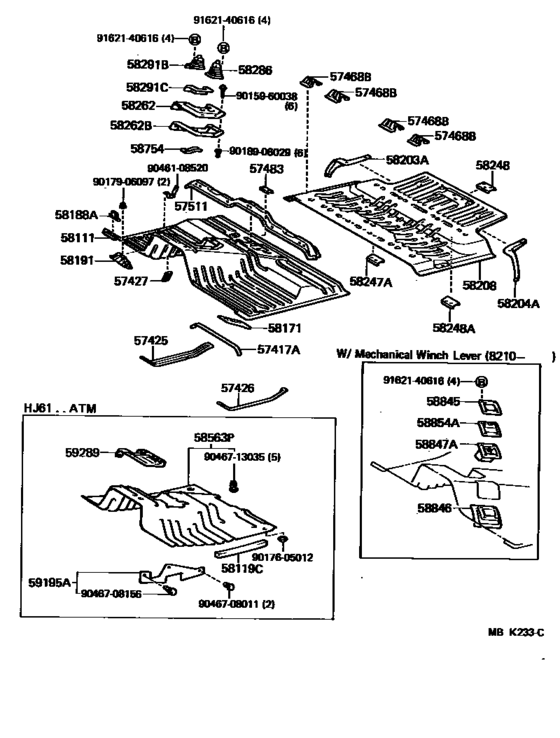

Front Floor Panel & Front Floor Member ([10.1985 - ] (8510- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- HJ61
- body
- WGV
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57417A
|
57417A
57417-90A00 Reinforcement, Front Floor UnderFRONT FLOOR UNDER [08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..MTM |
57417-90A00 |
US $48.78 |
||
| replacement | |||||
|
57417A
|
57417A
57417-90A03 Reinforcement, Front Floor Under[08.1980 - 08.1987] BJ6#,FJ6#,HJ6#..MTM |
57417-90A03 |
US $18.78 |
||
|
57425
|
57425
57425-90A02 Reinforcement, Front Floor, No.2 Rh[11.1984 - 08.1986] BJ61,FJ62,HJ6# |
57425-90A02 |
US $126.67 |
||
|
57425
|
57425
57506-90A00
Reinforcement, Front Floor, No.2 Rh
[08.1986 - 08.1987] FJ62,HJ6# |
57506-90A00 |
— | ||
|
57426
|
57426
57426-90A01 Reinforcement, Front Floor, No.2 LhFRONT FLOOR, NO.2 LH [11.1984 - 08.1986] BJ61,FJ62,HJ6# |
57426-90A01 |
US $131.04 |
||
| replacement | |||||
|
57426
|
57426
57426-90A04 Reinforcement, Front Floor, No.2 Lh[11.1984 - 08.1986] BJ61,FJ62,HJ6# |
57426-90A04 |
US $31.74 |
||
|
57426
|
57426
57507-90A00
Reinforcement, Front Floor, No.2 Lh
[08.1986 - 08.1987] FJ62,HJ6# |
57507-90A00 |
— | ||
|
57427
|
57427
57427-90A00 Reinforcement, Front Floor To Brace[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
57427-90A00 |
US $21.11 |
||
|
57468B
|
57468B
57468-90A01 Bracket, Front Seat, Rear[10.1985 - 08.1987] BJ61,FJ62,HJ6# OUTER |
57468-90A01 |
US $43.97 |
||
|
57468B
|
57468B
57468-90A02 Bracket, Front Seat, Rear[10.1985 - 08.1987] BJ61,FJ62,HJ6# INNER |
57468-90A02 |
US $48.19 |
||
|
57483
|
57483
57483-90A00 Retainer, Differential Lock Lever Support[10.1985 - 08.1987] BJ61,FJ62,HJ6#..CBU |
57483-90A00 |
US $8.30 |
||
|
57511
|
57511
57511-90A03 Reinforcement, Front Floor, Center[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
57511-90A03 |
US $101.92 |
||
|
58111
|
58111
58111-90A29 Pan, Front FloorFRONT FLOOR [11.1984 - 08.1987] BJ61,FJ62,HJ6#..MTM..CBU |
58111-90A29 |
US $979.89 |
||
| replacement | |||||
|
58111
|
58111
58111-90A50
Pan, Front Floor
[11.1984 - 08.1987] BJ61,FJ62,HJ6#..MTM..CBU |
58111-90A50 |
— | ||
|
58111
|
58111
58111-90A30 Pan, Front FloorFRONT FLOOR [11.1984 - 08.1987] BJ61,FJ62,HJ6#..MTM W/WINCH |
58111-90A30 |
US $979.89 |
||
| replacement | |||||
|
58111
|
58111
58111-90A51 Pan, Front Floor[11.1984 - 08.1987] BJ61,FJ62,HJ6#..MTM W/WINCH |
58111-90A51 |
US $614.43 |
||
|
58171
|
58171
58107-90A00 Reinforcement, Parking Brake Base[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
58107-90A00 |
US $50.96 |
||
|
58188A
|
58188A
58188-90A02 Bracket, Accelerator Pedal Stopper[11.1984 - 08.1987] BJ61,FJ62,HJ6#..MTM |
58188-90A02 |
US $53.14 |
||
|
58203A
|
58203A
58203-90A00 Reinforcement Sub-Assy, Center Floor Panel, Rh[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
58203-90A00 |
US $116.48 |
||
|
58204A
|
58204A
58204-90A00 Reinforcement Sub-Assy, Center Floor Panel, Lh[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
58204-90A00 |
US $116.48 |
||
|
58208
|
58208
58211-90A17 Pan, Center FloorCENTER FLOOR [10.1985 - 12.1986] HJ61 |
58211-90A17 |
US $685.78 |
||
| replacements | |||||
|
58208
|
58208
58211-90A31 Pan, Center Floor[10.1985 - 12.1986] HJ61 |
58211-90A31 |
US $688.69 |
||
|
58208
|
58208
90950-01006 Plug, Hole(For Front Fender)[10.1985 - 12.1986] HJ61 |
90950-01006 |
from US $2.07 |
||
|
58208
|
58208
58211-90A19 Pan, Center Floor[10.1985 - 12.1986] HJ61 W/*DL |
58211-90A19 |
US $685.78 |
||
| replacements | |||||
|
58208
|
58208
58211-90A33 Pan, Center Floor[10.1985 - 12.1986] HJ61 W/*DL |
58211-90A33 |
US $688.69 |
||
|
58208
|
58208
90950-01006 Plug, Hole(For Front Fender)[10.1985 - 12.1986] HJ61 W/*DL |
90950-01006 |
from US $2.07 |
||
|
58208
|
58208
58211-90A31 Pan, Center Floor[12.1986 - 08.1987] HJ61 |
58211-90A31 |
US $688.69 |
||
|
58208
|
58208
58211-90A33 Pan, Center Floor[12.1986 - 08.1987] HJ61 |
58211-90A33 |
US $688.69 |
||
|
58247A
|
58247A
58249-90A00 Reinforcement, Rear Seat Cushion Hinge, Rh[10.1985 - 08.1987] HJ61 W/DIVISION RR SEAT |
58249-90A00 |
US $16.16 |
||
|
58248A
|
58248A
58249-90A00 Reinforcement, Rear Seat Cushion Hinge, Rh[10.1985 - 08.1987] HJ61 W/DIVISION RR SEAT |
58249-90A00 |
US $16.16 |
||
|
58262
|
58262
58261-90A03 Cover, Transmission[11.1984 - 08.1987] BJ61,FJ62,HJ6#..MTM |
58261-90A03 |
US $279.55 |
||
|
58262B
|
58262B
58263-90A02
Packing, Transmission Cover
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
58263-90A02 |
— | ||
|
58286
|
58286
58280-90A03 Boot, Shift & Select Lever, No.1SHIFT & SELECT LEVER, NO.1 [11.1984 - 04.1986] BJ61,FJ62,HJ6#..MTM |
58280-90A03 |
US $77.17 |
||
| replacement | |||||
|
58286
|
58286
58280-90A04
Boot, Shift & Select Lever, No.1
[11.1984 - 04.1986] BJ61,FJ62,HJ6#..MTM |
58280-90A04 |
— | ||
|
58286
|
58286
58280-90A04
Boot, Shift & Select Lever, No.1
[04.1986 - 08.1987] BJ61,FJ62,HJ6#..MTM |
58280-90A04 |
— | ||
|
58291B
|
58291B
58290-90A04
Boot, Transfer Shift Lever
[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
58290-90A04 |
— | ||
| replacement | |||||
|
58291B
|
58291B
58290-90A05
Boot, Transfer Shift Lever
[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
58290-90A05 |
— | ||
|
58291C
|
58291C
58268-90A04
Cover, Transfer Shift Lever Boot
[11.1984 - 04.1986] BJ61,FJ62,HJ6# |
58268-90A04 |
— | ||
| replacement | |||||
|
58291C
|
58291C
58268-90A05
Seal, Transfer Lever Boot
[11.1984 - 04.1986] BJ61,FJ62,HJ6# |
58268-90A05 |
— | ||
|
58291C
|
58291C
58268-90A05
Seal, Transfer Lever Boot
[04.1986 - 08.1987] BJ61,FJ62,HJ6# |
58268-90A05 |
— | ||
|
58754
|
58754
58754-90A00 Plate, Engine Service Cover Catch[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
58754-90A00 |
US $8.59 |
||
|
58845
|
58845
58845-90A01
Retainer, Winch Lever Boot
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
58845-90A01 |
— | ||
|
58846
|
58846
58846-90A01 Cover, Winch Lever[10.1985 - 08.1987] BJ61,FJ62,HJ6# W/WINCH |
58846-90A01 |
US $161.62 |
||
|
58847A
|
58847A
58847-90A01
Seal, Winch Lever
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
58847-90A01 |
— | ||
|
58854A
|
58854A
58854-90A01
Boot, Winch Lever
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
58854-90A01 |
— | ||
|
9015960038
|
9015960038
90159-60038 SCREWTAPPING |
90159-60038 |
US $3.40 |
||
|
9017605012
|
9017605012
90176-05012 New Genuine Part |
90176-05012 |
US $2.33 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.76 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
from US $0.84 |
||
|
9046108520
|
9046108520
90461-08520 New Genuine Part |
90461-08520 |
US $2.62 |
||
|
9046708011
|
9046708011
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
9046708011
|
9046708011
90467-08011-TH CLIP |
90467-08011-TH |
US $0.30 |
||
|
9046708011
|
9046708011
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) |
90467-08011-83 |
US $0.51 |
||
|
9046708156
|
9046708156
90467-08156 Clip(For Hood To Radiator Support Seal) |
90467-08156 |
US $2.33 |
||
|
9046713035
|
9046713035
90467-13035 Clip |
90467-13035 |
US $1.93 |
||
|
9162140616
|
9162140616
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.43 |
||
