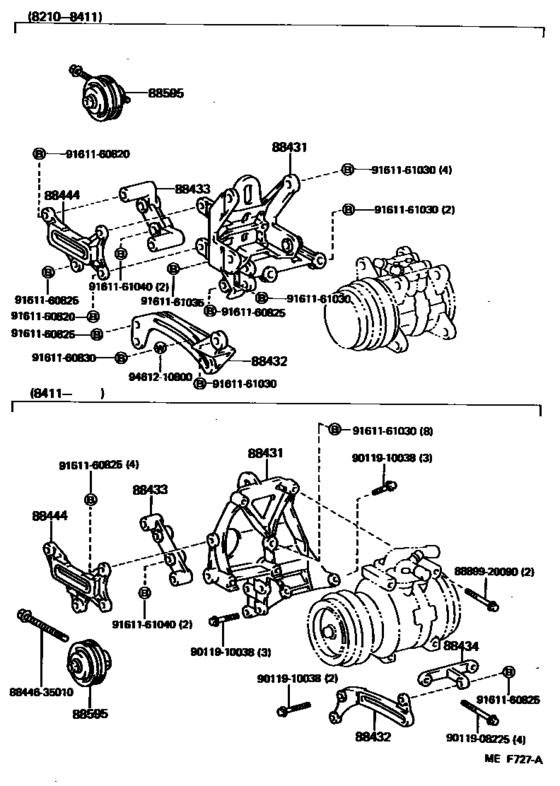

Heating & Air Conditioning - Compressor ([10.1982 - ] (8210- )HJ6#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- HJ61
- body
- WGV
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88431
|
88431
88431-60060
Bracket, Compressor Mounting, No.1
[11.1984 - 08.1987] HJ6# |
88431-60060 |
— | ||
|
88432
|
88432
88437-60200
Bracket, Compressor Mounting, No.2
[10.1985 - 08.1987] HJ6# ALTERNATOR=24V 30A |
88437-60200 |
— | ||
|
88432
|
88432
88437-60230
Bracket, Compressor Mounting, No.2
[10.1985 - 08.1987] HJ6# ALTERNATOR=24V 40A |
88437-60230 |
— | ||
|
88433
|
88433
88437-60141
Bracket, Compressor Mounting, No.3
[10.1985 - 08.1987] HJ6# |
88437-60141 |
— | ||
|
88434
|
88434
88437-60240
Bracket, Compressor Mounting, No.4
[10.1985 - 08.1987] HJ6# |
88437-60240 |
— | ||
|
88444
|
88444
88444-60041
Bracket, Idle Pulley
[10.1985 - 08.1987] HJ6# |
88444-60041 |
— | ||
|
88595
|
88595
88440-35010 Pulley Assy, Idle[11.1984 - 08.1987] FJ62,HJ6# |
88440-35010 |
from US $59.98 |
||
|
8844635010
|
8844635010
88446-35010 Bolt, Idle Pulley |
88446-35010 |
from US $3.32 |
||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9011908225
|
9011908225
90119-08225
BOLT
|
90119-08225 |
— | ||
|
9011910038
|
9011910038
90119-10038 New Genuine Part |
90119-10038 |
US $6.45 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.41 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.05 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
