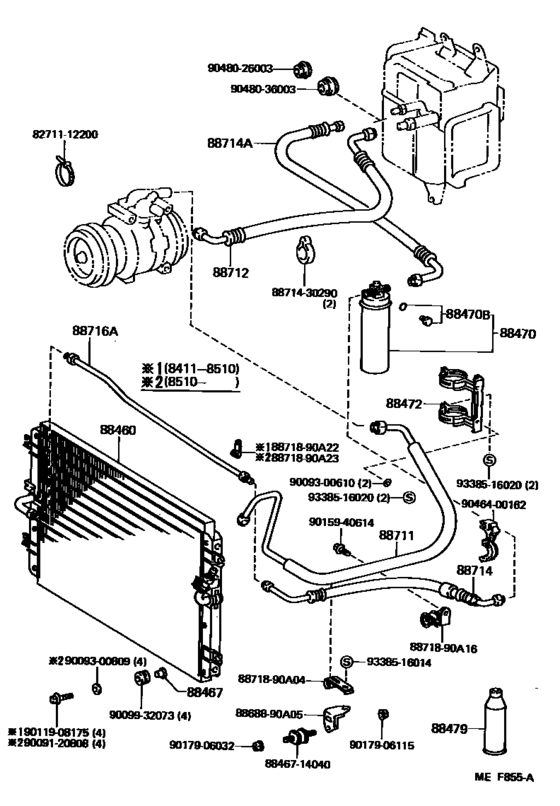

Heating & Air Conditioning - Cooler Piping ([11.1984 - ] (8411- )HJ6#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- HJ61
- body
- WGV
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-90A07
Condenser Assy, Cooler
[11.1984 - 08.1987] HJ6# |
88460-90A07 |
— | ||
|
88467
|
88467
88469-22010
Collar(For Radiator)
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
88469-22010 |
— | ||
|
88470
|
88470
88470-14010
Receiver & Dryer Assy, Cooler
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
88470-14010 |
— | ||
| replacement | |||||
|
88470
|
88470
04884-33110 New Genuine Part[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
04884-33110 |
US $85.28 |
||
|
88470B
|
88470B
90099-04579
Bolt, Fuse
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90099-04579 |
— | ||
| replacement | |||||
|
88470B
|
88470B
88475-12020
Bolt, Fuse
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
88475-12020 |
— | ||
|
88472
|
88472
88472-90A00
Bracket, Receiver Tank, No.1
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
88472-90A00 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# ４００Ｇ |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# ４００Ｇ |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# ４００Ｇ |
90986-02005 |
— | ||
|
88711
|
88711
88711-90A08
Hose, Cooler Refrigerant Discharge, No.1
[10.1985 - 08.1987] HJ6# |
88711-90A08 |
— | ||
|
88712
|
88712
88712-90A23 Hose, Cooler Refrigerant Suction, No.1[10.1985 - 08.1987] HJ6# |
88712-90A23 |
US $199.47 |
||
|
88714
|
88714
88721-90A12 Hose, Cooler Refrigerant Liquid, No.1[10.1985 - 08.1987] HJ6# |
88721-90A12 |
US $206.75 |
||
|
88714A
|
88714A
88721-90A01
Hose, Cooler Refrigerant Liquid, No.1
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
88721-90A01 |
— | ||
|
88716A
|
88716A
88716-90A08
Pipe, Cooler Refrigerant Liquid, A
[11.1984 - 08.1987] HJ6# |
88716-90A08 |
— | ||
|
8868890A05
|
8868890A05
88688-90A05
Bracket, Cooler Condenser, No.1
|
88688-90A05 |
— | ||
|
8871890A04
|
8871890A04
88718-90A04
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A04 |
— | ||
|
8871890A16
|
8871890A16
88718-90A16
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A16 |
— | ||
|
8871890A22
|
8871890A22
88718-90A22
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A22 |
— | ||
|
8871890A23
|
8871890A23
88718-90A23
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90A23 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8846714040
|
8846714040
88467-14040 Cushion, Cooler Condenser, No.1 |
88467-14040 |
from US $2.06 |
||
|
8871430290
|
8871430290
88714-30290
Insulator, Cooler Refrigerant Hose, No.1
|
88714-30290 |
— | ||
|
9009120808
|
9009120808
90091-20808
New Genuine Part
|
90091-20808 |
— | ||
|
9009300610
|
9009300610
90093-00610
New Genuine Part
|
90093-00610 |
— | ||
|
9009300809
|
9009300809
90093-00809
New Genuine Part
|
90093-00809 |
— | ||
|
9009932073
|
9009932073
90099-32073
Grommet
|
90099-32073 |
— | ||
|
9011908175
|
9011908175
90119-08175
New Genuine Part
|
90119-08175 |
— | ||
|
9015940614
|
9015940614
90159-40614
New Genuine Part
|
90159-40614 |
— | ||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9046400162
|
9046400162
90464-00162 New Genuine Part |
90464-00162 |
US $4.22 |
||
|
9048026003
|
9048026003
90480-26003 Grommet (For Cooler Unit) |
90480-26003 |
US $2.80 |
||
|
9048036003
|
9048036003
90480-36003 Grommet (For Cooler Unit) |
90480-36003 |
US $2.97 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.43 |
||
|
9338516020
|
9338516020
93385-16020
New Genuine Part
|
93385-16020 |
— | ||
| replacement | |||||
|
9338516020
|
9338516020
93385-26020 New Genuine Part |
93385-26020 |
US $1.61 |
||
