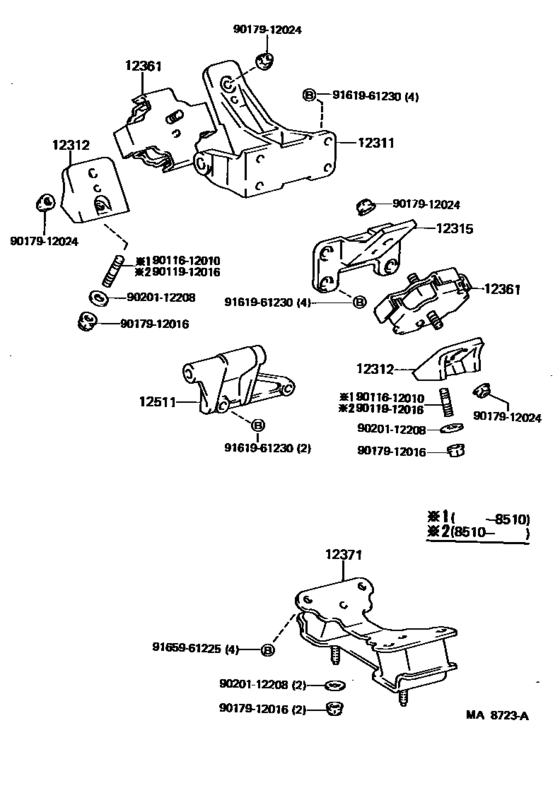

Mounting ([11.1984 - ] (8411- )12HT,2H) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- HJ61
- body
- WGV
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12301-68010 Bracket, Engine Mounting, Front No.1 Rh[11.1984 - 08.1987] 12HT,2H..HJ6# |
12301-68010 |
US $155.79 |
||
|
12312
|
12312
12312-68010
Bracket, Engine Mounting, Front No.2
[11.1984 - 08.1987] 12HT,2H..HJ6# RH |
12312-68010 |
— | ||
|
12312
|
12312
12316-68010
Bracket, Engine Mounting, Front No.2
[11.1984 - 08.1987] 12HT,2H..HJ6# LH |
12316-68010 |
— | ||
|
12315
|
12315
12315-68040 Bracket, Engine Mounting, Front No.1 Lh[11.1984 - 08.1987] 12HT,2H..HJ6# |
12315-68040 |
US $20.97 |
||
|
12361
|
12361
12361-68051 Insulator, Engine Mounting, Front[10.1985 - 08.1987] 12HT,2H..HJ6# |
12361-68051 |
from US $109.65 |
||
|
12371
|
12371
12371-68040
Insulator, Engine Mounting, Rear No.1
[11.1984 - 08.1987] 12HT,2H..HJ6#..5F |
12371-68040 |
— | ||
| replacement | |||||
|
12371
|
12371
12371-68041
Insulator, Engine Mounting, Rear No.1
[11.1984 - 08.1987] 12HT,2H..HJ6#..5F |
12371-68041 |
— | ||
|
12511
|
12511
12511-68011 Bracket, Alternator, No.1[09.1984 - 08.1987] 12HT,2H..HJ6# |
12511-68011 |
US $133.95 |
||
|
12511
|
12511
12511-68030 Bracket, Alternator, No.1[10.1985 - 08.1987] 12HT,2H..HJ6# 24V-40A OR COLD SPEC |
12511-68030 |
US $81.54 |
||
|
9011612010
|
9011612010
90116-12010
New Genuine Part
|
90116-12010 |
— | ||
|
9011912016
|
9011912016
90119-12016
New Genuine Part
|
90119-12016 |
— | ||
|
9017912016
|
9017912016
90179-12016 NUT |
90179-12016 |
US $2.51 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.06 |
||
|
9020112208
|
9020112208
90201-12208 WASHER |
90201-12208 |
from US $1.25 |
||
|
9161961230
|
9161961230
91619-61230 BOLT |
91619-61230 |
US $1.97 |
||
|
9165961225
|
9165961225
91659-61225 BOLT |
91659-61225 |
US $3.76 |
||
