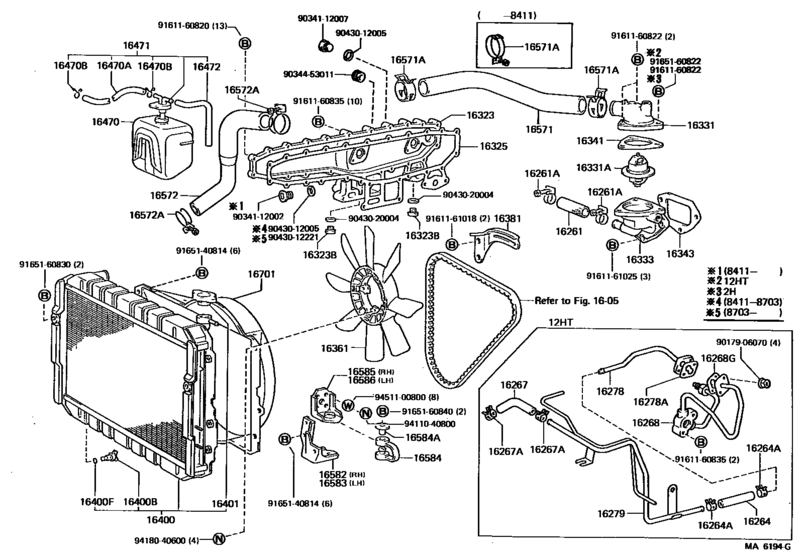

Radiator & Water Outlet ([10.1982 - ] (8210- )12HT,2H) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- HJ61
- body
- WGV
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
99555-40090 Hose, Water By-Pass[09.1983 - 08.1987] 12HT,2H..HJ6# |
99555-40090 |
US $9.50 |
||
|
16261A
|
16261A
96111-10330 Clamp Or Clip, Hose(For Water By-Pass Hose)[10.1982 - 08.1987] 12HT,2H..HJ6# |
96111-10330 |
US $2.33 |
||
|
16264
|
16264
99556-10110
Hose, Water By-Pass
[10.1985 - 08.1987] 12HT..HJ61 ＊Ｈ，Ｌ＝１１０ |
99556-10110 |
— | ||
| replacement | |||||
|
16264
|
16264
99556-10200
Hose, Turbo Water, No.2
[10.1985 - 08.1987] 12HT..HJ61 ＊Ｈ，Ｌ＝１１０ |
99556-10200 |
— | ||
|
16264A
|
16264A
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[10.1985 - 08.1987] 12HT..HJ61 |
90467-13001 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[10.1985 - 08.1987] 12HT..HJ61 |
96135-51300 |
from US $1.86 |
||
|
16267
|
16267
99556-10185
Hose, Water By-Pass, No.3
[10.1985 - 08.1987] 12HT..HJ61 |
99556-10185 |
— | ||
| replacement | |||||
|
16267
|
16267
99556-10200
Hose, Turbo Water, No.2
[10.1985 - 08.1987] 12HT..HJ61 |
99556-10200 |
— | ||
|
16267A
|
16267A
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[10.1985 - 08.1987] 12HT..HJ61 |
90467-13001 |
— | ||
| replacement | |||||
|
16267A
|
16267A
96135-51300 Clamp, Hose[10.1985 - 08.1987] 12HT..HJ61 |
96135-51300 |
from US $1.86 |
||
|
16268
|
16268
16268-68010
Pipe, Water By-Pass, No.1
[10.1985 - 08.1987] 12HT..HJ61 |
16268-68010 |
— | ||
|
16268G
|
16268G
16347-28010
Gasket(For Water By-Pass Pipe)
[10.1985 - 08.1987] 12HT..HJ61 |
16347-28010 |
— | ||
| replacement | |||||
|
16268G
|
16268G
16347-42020 Gasket, Water By-Pass[10.1985 - 08.1987] 12HT..HJ61 |
16347-42020 |
from US $2.64 |
||
|
16278
|
16278
16278-68010
Pipe, Water By-Pass, No.2
[10.1985 - 08.1987] 12HT..HJ61 |
16278-68010 |
— | ||
|
16278A
|
16278A
16347-28010
Gasket(For Water By-Pass Pipe)
[10.1985 - 08.1987] 12HT..HJ61 |
16347-28010 |
— | ||
| replacement | |||||
|
16278A
|
16278A
16347-42020 Gasket, Water By-Pass[10.1985 - 08.1987] 12HT..HJ61 |
16347-42020 |
from US $2.64 |
||
|
16279
|
16279
16279-68020
Pipe, Water By-Pass, No.3
[10.1985 - 08.1987] 12HT..HJ61 |
16279-68020 |
— | ||
|
16323
|
16323
16323-68030
Housing, Water Inlet
[10.1985 - 08.1987] 12HT..HJ61 |
16323-68030 |
— | ||
|
16323B
|
16323B
90341-20002 Plug, W/head Taper Screw, No.1[10.1982 - 08.1987] 12HT,2H..HJ6# |
90341-20002 |
from US $2.95 |
||
|
16325
|
16325
16325-68020
Gasket, Water Inlet Housing, No.1
[11.1984 - 08.1987] 12HT,2H..HJ6# |
16325-68020 |
— | ||
| replacement | |||||
|
16325
|
16325
16325-68030 Gasket, Water Inlet Housing, No.1WATER INLET HOUSING, NO.1 [11.1984 - 08.1987] 12HT,2H..HJ6# |
16325-68030 |
US $18.70 |
||
|
16331
|
16331
16331-68011
Outlet, Water
[11.1984 - 08.1987] 12HT,2H..HJ6# |
16331-68011 |
— | ||
|
16331A
|
16331A
90916-03059
Thermostat
[11.1984 - 08.1987] 12HT,2H..HJ6# ＊ＷＡＸ ８８−１００,*WAX 88-100 |
90916-03059 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03103 Thermostat[11.1984 - 08.1987] 12HT,2H..HJ6# ＊ＷＡＸ ８８−１００,*WAX 88-100 |
90916-03103 |
from US $37.09 |
||
|
16333
|
16333
16333-68010 Housing, Water Outlet[10.1982 - 08.1987] 12HT,2H..HJ6# |
16333-68010 |
from US $45.77 |
||
|
16341
|
16341
16341-68010
Gasket, Water Outlet
[10.1982 - 08.1987] 12HT,2H..HJ6# |
16341-68010 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-68020 Gasket, Water OutletWATER OUTLET [10.1982 - 08.1987] 12HT,2H..HJ6# |
16341-68020 |
from US $3.86 |
||
|
16343
|
16343
16343-68010
Gasket, Water Outlet Housing
[10.1982 - 08.1987] 12HT,2H..HJ6# |
16343-68010 |
— | ||
| replacement | |||||
|
16343
|
16343
16343-68020 Gasket, Water Outlet HousingWATER OUTLET HOUSING [10.1982 - 08.1987] 12HT,2H..HJ6# |
16343-68020 |
from US $5.78 |
||
|
16361
|
16361
16361-68010
Fan
[10.1982 - 08.1987] 12HT,2H..HJ6# |
16361-68010 |
— | ||
|
16381
|
16381
16381-68010 Bar, Fan Belt Adjusting[10.1982 - 08.1987] 12HT,2H..HJ6# |
16381-68010 |
US $34.36 |
||
|
16381
|
16381
16381-68030 Bar, Fan Belt Adjusting[10.1985 - 08.1987] 12HT,2H..HJ6# 24A-40A OR COLD SPEC |
16381-68030 |
US $32.61 |
||
|
16400
|
16400
16400-68100
Radiator Assy
[11.1984 - 08.1987] 12HT,2H..HJ6#..5F |
16400-68100 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-68160
Radiator Assy
[11.1984 - 08.1987] 12HT,2H..HJ6#..5F |
16400-68160 |
— | ||
|
16400B
|
16400B
16417-24200 Plug, Radiator Drain Cock[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
16417-24200 |
from US $3.50 |
||
|
16400F
|
16400F
16418-24200 Packing(For Radiator Drain Cock)[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
16418-24200 |
from US $1.24 |
||
|
16401
|
16401
16401-71010
Cap Sub-Assy(For Water Outlet)
[11.1984 - 08.1987] 3B..BJ61; 3F..FJ62; 12HT,2H..HJ6# |
16401-71010 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-54750 Radiator Cap[11.1984 - 08.1987] 3B..BJ61; 3F..FJ62; 12HT,2H..HJ6# |
16401-54750 |
from US $16.13 |
||
|
16470
|
16470
16480-90A00 Tank Assy, Radiator Reserve[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
16480-90A00 |
from US $58.46 |
||
|
16470A
|
16470A
90445-12002
Hose Or Pipe(For Radiator Reserve Tank)
[10.1982 - 05.1987] 12HT,2H..HJ6# ＊Ｈ，Ｌ＝２６０ |
90445-12002 |
— | ||
| replacement | |||||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[10.1982 - 05.1987] 12HT,2H..HJ6# ＊Ｈ，Ｌ＝２６０ |
90445-12078 |
from US $6.57 |
||
|
16470A
|
16470A
90445-12043
Hose Or Pipe(For Radiator Reserve Tank)
[05.1987 - 08.1987] 12HT,2H..HJ6# ＊Ｈ，Ｌ＝３６０ |
90445-12043 |
— | ||
| replacement | |||||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[05.1987 - 08.1987] 12HT,2H..HJ6# ＊Ｈ，Ｌ＝３６０ |
90445-12078 |
from US $6.57 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
90467-11085 |
from US $0.70 |
||
|
16471
|
16471
16405-90A02
Cap Sub-Assy, Reserve Tank
[10.1982 - 08.1987] 12HT,2H..HJ6# |
16405-90A02 |
— | ||
| replacement | |||||
|
16471
|
16471
16405-90A03
Cap Sub-Assy, Reserve Tank
[10.1982 - 08.1987] 12HT,2H..HJ6# |
16405-90A03 |
— | ||
|
16472
|
16472
85338-22020 Hose, Breather[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
85338-22020 |
US $2.45 |
||
|
16571
|
16571
16571-68010 Hose, Radiator, Inlet[10.1982 - 08.1987] 12HT,2H..HJ6# |
16571-68010 |
from US $33.69 |
||
|
16571A
|
16571A
90467-42001
Clamp Or Clip, Hose(For Radiator Inlet)
[11.1984 - 08.1987] 3B..BJ61; 12HT,2H..HJ6# |
90467-42001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90466-41008 Clamp, Hose(For Radiator Hose)[11.1984 - 08.1987] 3B..BJ61; 12HT,2H..HJ6# |
90466-41008 |
from US $4.07 |
||
|
16572
|
16572
16572-68010 Hose, Radiator, Outlet[10.1982 - 08.1987] 12HT,2H..HJ6# |
16572-68010 |
from US $36.01 |
||
|
16572A
|
16572A
96111-10510 Clamp Or Clip, Sub Radiator Hose[10.1985 - 08.1987] 12HT,2H..HJ6# ID=51 |
96111-10510 |
US $4.66 |
||
|
16572A
|
16572A
96111-10560 Clamp Or Clip, Hose(For Radiator Outlet No.1)[10.1982 - 08.1987] 12HT,2H..HJ6# ID=56 |
96111-10560 |
US $4.12 |
||
|
16582
|
16582
16582-61010 Bracket, Radiator, No.1[08.1980 - 08.1987] 3B..BJ6#; 3F..FJ62; 12HT,2H..HJ6# |
16582-61010 |
US $37.13 |
||
|
16583
|
16583
16583-61010 Bracket, Radiator, No.2[08.1980 - 08.1987] 3B..BJ6#; 3F..FJ62; 12HT,2H..HJ6# |
16583-61010 |
US $37.13 |
||
|
16584
|
16584
16584-61010
Insulator, Radiator Mounting
[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
16584-61010 |
— | ||
|
16584A
|
16584A
90561-09005
Spacer, Radiator Mounting Insulator
[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
90561-09005 |
— | ||
|
16585
|
16585
16585-61010 Bracket, Radiator, No.3[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
16585-61010 |
US $30.87 |
||
|
16586
|
16586
16586-61010 Bracket, Radiator, No.4[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
16586-61010 |
US $30.87 |
||
|
16701
|
16701
16711-68010 Shroud Sub-Assy, Fan[10.1982 - 08.1987] 12HT,2H..HJ6# |
16711-68010 |
US $244.61 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9034112002
|
9034112002
90341-12002 Plug, Straight, No.2 |
90341-12002 |
US $3.35 |
||
| replacement | |||||
|
9034112002
|
9034112002
90341-12013 Plug, Straight, No.2 |
90341-12013 |
US $3.06 |
||
|
9034112007
|
9034112007
90341-12007 Plug, No.4 |
90341-12007 |
from US $3.20 |
||
|
9034453011
|
9034453011
90344-53011 Plug, W/head Taper Screw, No.1 |
90344-53011 |
US $4.30 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.67 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.05 |
||
|
9043020004
|
9043020004
90430-20004 Gasket(For Cylinder Head Screw Plug) |
90430-20004 |
from US $0.93 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9161161018
|
9161161018
91611-61018
Bolt (For Transfer Case)Cover No.2
|
91611-61018 |
— | ||
| replacement | |||||
|
9161161018
|
9161161018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165160822
|
9165160822
91651-60822
New Genuine Part
|
91651-60822 |
— | ||
| replacement | |||||
|
9165160822
|
9165160822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.89 |
||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
from US $1.58 |
||
|
9165160840
|
9165160840
91651-60840 BOLT |
91651-60840 |
US $1.61 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.61 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
