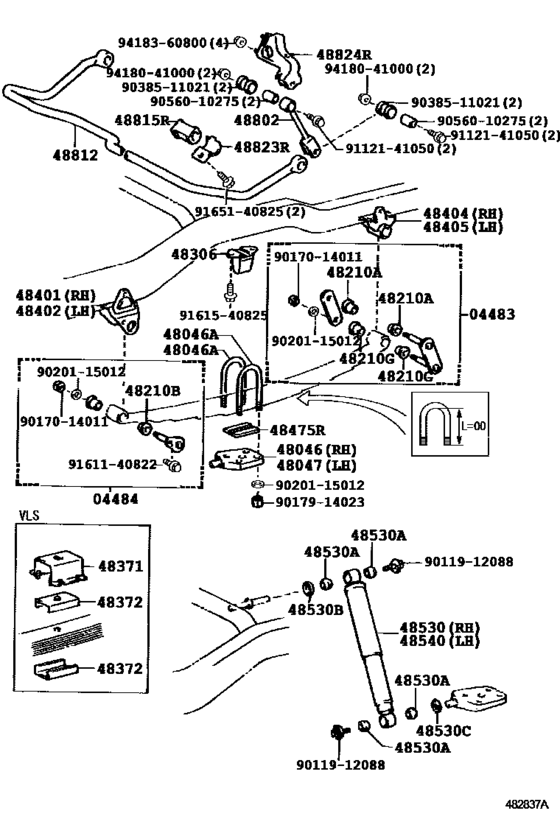

Rear Spring & Shock Absorber ([10.1985 - ] (8510- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- HJ61
- body
- WGV
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-60050
Shackle Kit, Rear Spring
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
04483-60050 |
— | ||
| replacement | |||||
|
04483
|
04483
04483-60101 Shackle Kit, Rear Spring[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
04483-60101 |
US $96.76 |
||
|
04484
|
04484
04482-60040 Pin Kit, Front Spring[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
04482-60040 |
from US $28.29 |
||
|
48046
|
48046
48046-60051
Seat Sub-Assy, Spring U Bolt, Rh
[10.1985 - 08.1986] BJ61,HJ6#..VLS |
48046-60051 |
— | ||
| replacement | |||||
|
48046
|
48046
48046-60052
Seat Sub-Assy, Spring U Bolt, Rh
[10.1985 - 08.1986] BJ61,HJ6#..VLS |
48046-60052 |
— | ||
|
48046A
|
48046A
90117-14180 Bolt, U(For Rear Spring)[08.1986 - 08.1987] HJ6#..VLS 長さ＝２０５ |
90117-14180 |
US $25.19 |
||
| replacement | |||||
|
48046A
|
48046A
90117-14002 Bolt, U(For Rear Spring)U(FOR REAR SPRING) [08.1986 - 08.1987] HJ6#..VLS 長さ＝２０５ |
90117-14002 |
from US $22.55 |
||
|
48046A
|
48046A
90118-14110
Bolt, U(For Rear Spring)
[11.1984 - 08.1986] BJ61,HJ6#..VLS L=205 |
90118-14110 |
— | ||
| replacement | |||||
|
48046A
|
48046A
90117-14002 Bolt, U(For Rear Spring)U(FOR REAR SPRING) [11.1984 - 08.1986] BJ61,HJ6#..VLS L=205 |
90117-14002 |
from US $22.55 |
||
|
48046A
|
48046A
90118-14210
Bolt, U(For Rear Spring)
[11.1984 - 08.1986] BJ61,HJ6#..VLS 長さ＝２００ |
90118-14210 |
— | ||
| replacement | |||||
|
48046A
|
48046A
90117-14032 Bolt, U(For Rear Spring)[11.1984 - 08.1986] BJ61,HJ6#..VLS 長さ＝２００ |
90117-14032 |
from US $21.51 |
||
|
48047
|
48047
48047-60051
Seat Sub-Assy, Spring U Bolt, Lh
[10.1985 - 08.1986] BJ61,HJ6#..VLS |
48047-60051 |
— | ||
| replacement | |||||
|
48047
|
48047
48047-60052
Seat Sub-Assy, Spring U Bolt, Lh
[10.1985 - 08.1986] BJ61,HJ6#..VLS |
48047-60052 |
— | ||
|
48210A
|
48210A
90389-18002 Bush(For Spring Shackle, Pin)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90389-18002 |
from US $6.38 |
||
|
48210B
|
48210B
90389-18002 Bush(For Spring Shackle, Pin)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90389-18002 |
from US $6.38 |
||
|
48210G
|
48210G
90389-18002 Bush(For Spring Shackle, Pin)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
90389-18002 |
from US $6.38 |
||
|
48306
|
48306
48306-60030 Bumper Sub-Assy, Rear Spring[11.1984 - 08.1987] BJ61,FJ62,HJ6#..CBU |
48306-60030 |
US $21.84 |
||
|
48371
|
48371
48371-60030
Retainer, Rear Spring Pad
[11.1984 - 08.1986] BJ61,HJ6#..VLS |
48371-60030 |
— | ||
|
48371
|
48371
48371-60040 Retainer, Rear Spring PadREAR SPRING PAD [11.1984 - 08.1986] BJ61,HJ6#..VLS W/DISTANCE PLATE |
48371-60040 |
US $22.86 |
||
|
48372
|
48372
48372-23030 Pad, Rear Spring[10.1981 - 08.1986] BJ6#,HJ6#..VLS |
48372-23030 |
from US $15.41 |
||
|
48401
|
48401
48414-60042
Bracket Sub-Assy, Rear Spring, Front Rh
[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
48414-60042 |
— | ||
|
48402
|
48402
48415-60042
Bracket Sub-Assy, Rear Spring, Front Lh
[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
48415-60042 |
— | ||
|
48404
|
48404
48416-60030
Bracket Sub-Assy, Rear Spring, Rear Rh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
48416-60030 |
— | ||
|
48405
|
48405
48416-60030
Bracket Sub-Assy, Rear Spring, Rear Rh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
48416-60030 |
— | ||
|
48530
|
48530
48531-60160
Absorber Assy, Shock, Rear Rh
[10.1985 - 08.1987] BJ61,FJ62,HJ6#..CBU |
48531-60160 |
— | ||
| replacement | |||||
|
48530
|
48530
48531-69086
Absorber Assy, Shock, Rear Rh
[10.1985 - 08.1987] BJ61,FJ62,HJ6#..CBU |
48531-69086 |
— | ||
|
48530A
|
48530A
90385-19057 Bush(For Front Shock Absorber)[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
90385-19057 |
US $7.17 |
||
|
48530B
|
48530B
90948-03011 Washer, Front Shock Absorber Cushion, No.1[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
90948-03011 |
from US $2.33 |
||
|
48530C
|
48530C
90948-03011 Washer, Front Shock Absorber Cushion, No.1[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
90948-03011 |
from US $2.33 |
||
|
48540
|
48540
48541-60020 Absorber Assy, Shock, Rear LhSHOCK, REAR LH [10.1985 - 08.1987] BJ61,FJ62,HJ6# |
48541-60020 |
US $94.64 |
||
| replacement | |||||
|
48540
|
48540
48541-69016 Absorber Assy, Shock, Rear Lh[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
48541-69016 |
US $94.64 |
||
|
48802
|
48802
48802-60020 Link Sub-Assy, Stabilizer[11.1984 - 08.1986] BJ61,HJ6#..VLS |
48802-60020 |
from US $12.37 |
||
|
48812
|
48812
48812-60030 Bar, Stabilizer, Rear[01.1985 - 08.1986] BJ61,HJ6#..VLS |
48812-60030 |
US $152.88 |
||
|
48815R
|
48815R
48815-20030 Bush, Front Stabilizer Bar, No.1[01.1985 - 08.1986] BJ61,HJ6#..VLS |
48815-20030 |
from US $9.82 |
||
|
48823R
|
48823R
48823-27010 Cover, Stabilizer Link(For Front)[11.1984 - 08.1986] BJ61,HJ6#..VLS |
48823-27010 |
from US $5.47 |
||
|
48824R
|
48824R
48825-60031
Bracket, Stabilizer(For Rear)
[10.1985 - 08.1986] BJ61,HJ6#..VLS |
48825-60031 |
— | ||
|
9011912088
|
9011912088
90119-12088 BOLT |
90119-12088 |
from US $2.01 |
||
|
9017014011
|
9017014011
90170-14011
New Genuine Part
|
90170-14011 |
— | ||
|
9017914023
|
9017914023
90179-14023 Nut(For Rear Spring U Bolt) |
90179-14023 |
from US $1.98 |
||
|
9020115012
|
9020115012
90201-15012 Washer(For Rear Spring U Bolt) |
90201-15012 |
from US $1.18 |
||
|
9038511021
|
9038511021
90385-11021 Bush, Stabilizer Link |
90385-11021 |
from US $1.41 |
||
|
9056010275
|
9056010275
90560-10275 Spacer(For Rear Stabilizer Bar) |
90560-10275 |
from US $2 |
||
|
9112141050
|
9112141050
91121-41050 BOLT |
91121-41050 |
US $4.12 |
||
|
9161140822
|
9161140822
91611-40822
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40822 |
— | ||
| replacement | |||||
|
9161140822
|
9161140822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9161540825
|
9161540825
91615-40825
Bolt(for Intake Manifold To Exhaust Manifold)
|
91615-40825 |
— | ||
| replacement | |||||
|
9161540825
|
9161540825
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
from US $1.67 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.27 |
||
|
9418360800
|
9418360800
94183-60800 Nut(For Front Stabilizer Bar) |
94183-60800 |
US $1.43 |
||
