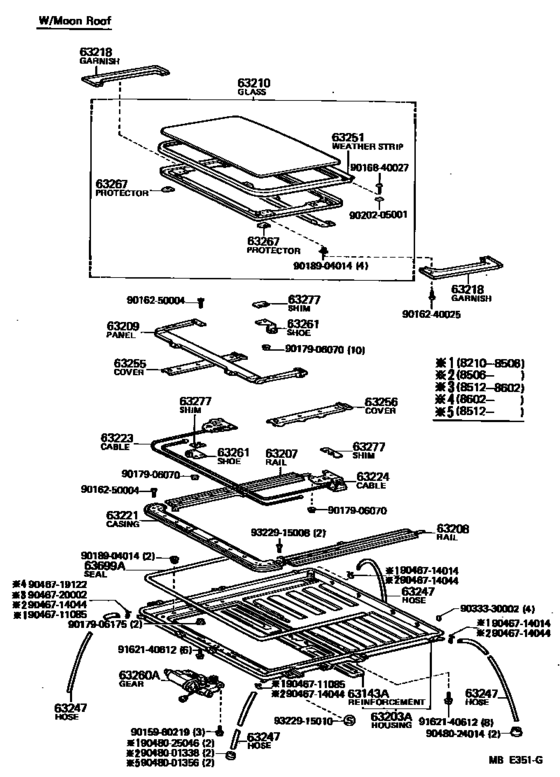

Roof Panel & Back Panel ([10.1982 - ] (8210- )HRF) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- HJ61
- body
- WGV
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63143A
|
63143A
63046-90A00
Reinforcement Sub-Assy, Roof Panel, No.4 A
[10.1982 - 08.1987] BJ61,HJ6#..HRF |
63046-90A00 |
— | ||
|
63203A
|
63203A
63250-90A00 Housing Sub-Assy, Sliding Roof Or Removable Roof[10.1985 - 12.1985] BJ61,HJ6#..HRF |
63250-90A00 |
US $570.75 |
||
| replacement | |||||
|
63203A
|
63203A
63250-90A02 Housing Sub-Assy, Sliding Roof Or Removable Roof[10.1985 - 12.1985] BJ61,HJ6#..HRF |
63250-90A02 |
US $576.58 |
||
|
63203A
|
63203A
63250-90A02 Housing Sub-Assy, Sliding Roof Or Removable Roof[12.1985 - 08.1987] BJ61,HJ6#..HRF |
63250-90A02 |
US $576.58 |
||
|
63207
|
63207
63207-30020 Rail Sub-Assy, Sliding Roof Guide, Rh[10.1982 - 08.1987] BJ61,HJ6#..HRF |
63207-30020 |
US $97.55 |
||
|
63208
|
63208
63208-30020 Rail Sub-Assy, Sliding Roof Guide, Lh[10.1982 - 08.1987] BJ61,HJ6#..HRF |
63208-30020 |
US $97.55 |
||
|
63209
|
63209
63209-90A01 Panel Sub-Assy, Roof Wind Deflector[04.1985 - 08.1987] BJ61,HJ6#..HRF |
63209-90A01 |
US $204.42 |
||
|
63210
|
63210
63201-30020
Glass Sub-Assy, Sliding Roof
[10.1982 - 08.1987] BJ61,HJ6#..HRF |
63201-30020 |
— | ||
| replacement | |||||
|
63210
|
63210
63201-60030
Glass Sub-Assy, Removable Roof
[10.1982 - 08.1987] BJ61,HJ6#..HRF |
63201-60030 |
— | ||
|
63218
|
63218
63217-30010-18 Garnish, Sliding Roof Side, Rh[11.1984 - 08.1987] BJ61,HJ6#..HRF RH,IVORY,IVORY |
63217-30010-18 |
US $50.96 |
||
|
63218
|
63218
63218-30010-18 Garnish, Sliding Roof, Side[11.1984 - 08.1987] BJ61,HJ6#..HRF LH,IVORY,IVORY |
63218-30010-18 |
US $50.96 |
||
|
63221
|
63221
63221-90A00
Casing, Sliding Roof Cable Guide
[08.1983 - 08.1987] BJ61,HJ6#..HRF |
63221-90A00 |
— | ||
| replacement | |||||
|
63221
|
63221
63221-22010
Casing, Sliding Roof Cable Guide
[08.1983 - 08.1987] BJ61,HJ6#..HRF |
63221-22010 |
— | ||
|
63223
|
63223
63223-30020
Cable, Sliding Roof Drive, Rh
[10.1982 - 08.1987] BJ61,HJ6#..HRF |
63223-30020 |
— | ||
| replacement | |||||
|
63223
|
63223
63223-60010 Cable, Sliding Roof Drive, Rh[10.1982 - 08.1987] BJ61,HJ6#..HRF |
63223-60010 |
US $138.03 |
||
|
63224
|
63224
63224-30020 Cable, Sliding Roof Drive, Lh[10.1982 - 08.1987] BJ61,HJ6#..HRF |
63224-30020 |
US $138.03 |
||
|
63247
|
63247
63249-90A01
Hose(For Sliding Roof Or Removable Roof Drain)
[12.1985 - 08.1987] BJ61,HJ6#..HRF RR |
63249-90A01 |
— | ||
|
63247
|
63247
63249-90A05
Hose, Sliding Roof Housing Drain
[12.1985 - 02.1986] BJ61,HJ6#..HRF FR |
63249-90A05 |
— | ||
| replacements | |||||
|
63247
|
63247
63249-90A06
Hose(For Sliding Roof Or Removable Roof Drain)
[12.1985 - 02.1986] BJ61,HJ6#..HRF FR |
63249-90A06 |
— | ||
|
63247
|
63247
90467-19122
Clip Or Clamp(For Ventilation Hose)
[12.1985 - 02.1986] BJ61,HJ6#..HRF FR |
90467-19122 |
— | ||
|
63247
|
63247
63249-90A06
Hose(For Sliding Roof Or Removable Roof Drain)
[02.1986 - 08.1987] BJ61,HJ6#..HRF FR |
63249-90A06 |
— | ||
|
63251
|
63251
63251-30030
Weatherstrip, Sliding Roof Panel Or Removable Roof
[10.1982 - 08.1987] BJ61,HJ6#..HRF |
63251-30030 |
— | ||
|
63255
|
63255
63255-30020 Cover, Sliding Roof Guide Rail, RhSLIDING ROOF GUIDE RAIL, RH [09.1983 - 08.1987] BJ61,HJ6#..HRF |
63255-30020 |
US $17.33 |
||
| replacement | |||||
|
63255
|
63255
63255-30010 Cover, Sliding Roof Guide Rail, Rh[09.1983 - 08.1987] BJ61,HJ6#..HRF |
63255-30010 |
US $16.45 |
||
|
63256
|
63256
63255-30020 Cover, Sliding Roof Guide Rail, RhSLIDING ROOF GUIDE RAIL, RH [09.1983 - 08.1987] BJ61,HJ6#..HRF |
63255-30020 |
US $17.33 |
||
| replacement | |||||
|
63256
|
63256
63255-30010 Cover, Sliding Roof Guide Rail, Rh[09.1983 - 08.1987] BJ61,HJ6#..HRF |
63255-30010 |
US $16.45 |
||
|
63260A
|
63260A
63260-90A03 Gear Sub-Assy, Sliding Roof Drive[11.1984 - 08.1987] BJ61,HJ6#..HRF |
63260-90A03 |
US $717.81 |
||
|
63261
|
63261
63261-30020 Shoe, Sliding Roof, Front[10.1982 - 08.1987] BJ61,HJ6#..HRF RH |
63261-30020 |
US $15.87 |
||
| replacement | |||||
|
63261
|
63261
63261-60010 Shoe, Sliding Roof, Front Rh[10.1982 - 08.1987] BJ61,HJ6#..HRF RH |
63261-60010 |
US $16.16 |
||
|
63261
|
63261
63262-30010 Shoe, Sliding Roof, Front[10.1982 - 08.1987] BJ61,HJ6#..HRF LH |
63262-30010 |
US $15.87 |
||
| replacement | |||||
|
63261
|
63261
63262-60010 Shoe, Sliding Roof, Front Lh[10.1982 - 08.1987] BJ61,HJ6#..HRF LH |
63262-60010 |
US $16.16 |
||
|
63267
|
63267
63267-30020 Protector, Sliding Roof Weatherstrip[10.1982 - 08.1987] BJ61,HJ6#..HRF RH |
63267-30020 |
US $9.03 |
||
|
63267
|
63267
63268-30020 Protector, Sliding Roof Weatherstrip[10.1982 - 08.1987] BJ61,HJ6#..HRF LH |
63268-30020 |
US $9.03 |
||
|
63277
|
63277
63277-30020 Shim, Sliding Roof Rail[10.1982 - 08.1987] BJ61,HJ6#..HRF 52X28 |
63277-30020 |
US $2.91 |
||
|
63277
|
63277
63277-30030 Shim, Sliding Roof Rail[10.1982 - 08.1987] BJ61,HJ6#..HRF 70X28 |
63277-30030 |
US $2.91 |
||
|
63699A
|
63699A
63699-12010
Seal, Sliding Roof Guide Rail
[10.1982 - 08.1987] BJ61,HJ6#..HRF |
63699-12010 |
— | ||
| replacement | |||||
|
63699A
|
63699A
63699-12040
Seal, Sliding Roof Guide Rail
[10.1982 - 08.1987] BJ61,HJ6#..HRF |
63699-12040 |
— | ||
|
9015960219
|
9015960219
90159-60219
New Genuine Part
|
90159-60219 |
— | ||
|
9016240025
|
9016240025
90162-40025 New Genuine Part |
90162-40025 |
US $1.46 |
||
|
9016250004
|
9016250004
90162-50004
New Genuine Part
|
90162-50004 |
— | ||
|
9016840027
|
9016840027
90168-40027 New Genuine Part |
90168-40027 |
from US $1.43 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017906175
|
9017906175
90179-06175 New Genuine Part |
90179-06175 |
US $3.05 |
||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $0.95 |
||
|
9020205001
|
9020205001
90202-05001
New Genuine Part
|
90202-05001 |
— | ||
| replacement | |||||
|
9020205001
|
9020205001
90202-05129 New Genuine Part |
90202-05129 |
US $1.65 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9046711085
|
9046711085
90467-11085 Clamp Or Clip(For Radiator Breather Hose) |
90467-11085 |
from US $0.70 |
||
|
9046714014
|
9046714014
90467-14014 New Genuine Part |
90467-14014 |
US $1.89 |
||
|
9046714044
|
9046714044
90467-14044 Clip(For Clutch Reservoir Tube) |
90467-14044 |
US $1.46 |
||
| replacement | |||||
|
9046714044
|
9046714044
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.70 |
||
|
9046719122
|
9046719122
90467-19122
Clip Or Clamp(For Ventilation Hose)
|
90467-19122 |
— | ||
|
9046720002
|
9046720002
90467-20002 Clip(For Ventilation Tube) |
90467-20002 |
from US $1.12 |
||
|
9048001338
|
9048001338
90480-01338 New Genuine Part |
90480-01338 |
US $3.49 |
||
|
9048001356
|
9048001356
90480-01356 New Genuine Part |
90480-01356 |
US $5.10 |
||
|
9048024014
|
9048024014
90480-24014 New Genuine Part |
90480-24014 |
US $3.35 |
||
|
9048025046
|
9048025046
90480-25046 Wire, Drain Hose(For Cooler) |
90480-25046 |
US $5.24 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.89 |
||
|
9322915008
|
9322915008
93229-15008 SCREW |
93229-15008 |
US $1.43 |
||
|
9322915010
|
9322915010
93229-15010
New Genuine Part
|
93229-15010 |
— | ||
| replacement | |||||
|
9322915010
|
9322915010
90151-50010 Screw |
90151-50010 |
US $1.25 |
||
