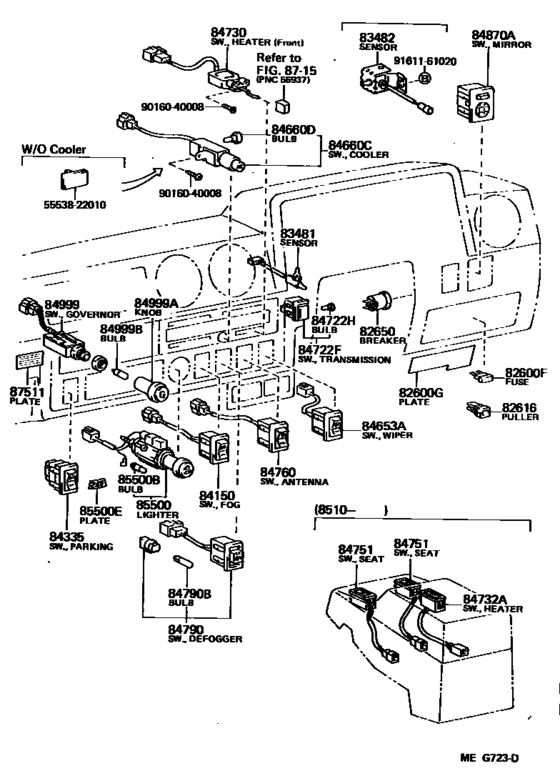

Switch & Relay & Computer ([10.1985 - ] (8510- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- HJ61
- body
- WGV
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09002 Fusible Link[10.1982 - 08.1987] BJ61,FJ6#,HJ6# １０Ａ,10A |
90982-09002 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[10.1982 - 08.1987] BJ61,FJ6#,HJ6# １５Ａ,15A |
90982-09003 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[10.1982 - 08.1987] BJ61,FJ6#,HJ6# ２０Ａ,20A |
90982-09004 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[10.1982 - 08.1987] BJ61,FJ6#,HJ6# ７．５Ａ,7.5A |
90982-09005 |
from US $0.97 |
||
|
82600G
|
82600G
82683-90A10
Plate, Caution(For Fuse)
[11.1984 - 08.1987] BJ61,HJ6# |
82683-90A10 |
— | ||
|
82616
|
82616
82616-12010 Lever, Fuse[10.1982 - 08.1987] BJ61,FJ6#,HJ6# |
82616-12010 |
US $3.40 |
||
|
82650
|
82650
82650-12020 Breaker Assy, Wiring Circuit, No.1[02.1986 - 08.1987] BJ61,HJ6# １４Ａ,14A |
82650-12020 |
US $21.17 |
||
|
82650
|
82650
82650-17010 Breaker Assy, Wiring Circuit, No.1[11.1984 - 02.1986] BJ61,HJ6# 6A |
82650-17010 |
US $21.69 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[12.1981 - 08.1987] BJ6#,FJ6#,HJ6# ３０Ａ,30A |
82650-20011 |
US $15.77 |
||
|
83481
|
83481
83481-90K00
Sensor, Inner Ambient Temperature
[10.1985 - 08.1987] BJ61,HJ6#..VLS |
83481-90K00 |
— | ||
|
83482
|
83482
83482-90A00
Sensor, Outer Ambient Temperature
[10.1985 - 08.1986] BJ61,HJ6#..HRF W/O WINCH |
83482-90A00 |
— | ||
|
83482
|
83482
83482-90A01
Sensor, Outer Ambient Temperature
[10.1985 - 08.1986] BJ61,HJ6#..HRF W/WINCH |
83482-90A01 |
— | ||
|
84150
|
84150
84160-90A01
Switch Assy, Fog Lamp
[10.1981 - 08.1987] BJ6#,FJ6#,HJ6# |
84160-90A01 |
— | ||
|
84335
|
84335
84330-22140
Switch Assy, Parking Lamp
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
84330-22140 |
— | ||
|
84653A
|
84653A
84653-90A00
Switch, Rear Wiper
[10.1981 - 08.1987] BJ6#,HJ6#..VLS |
84653-90A00 |
— | ||
|
84660C
|
84660C
88610-90A00
Switch, Cooler
[08.1980 - 08.1987] BJ6#,HJ6# |
88610-90A00 |
— | ||
|
84660D
|
84660D
88607-90A00
Bulb(For Cooler Switch)
[08.1980 - 08.1987] BJ6#,HJ6# |
88607-90A00 |
— | ||
|
84722F
|
84722F
84722-60080
Switch, Transmission Control
[11.1984 - 08.1987] BJ61,HJ6# |
84722-60080 |
— | ||
|
84722H
|
84722H
84999-10100 Bulb, Position Indicator Lamp[11.1984 - 08.1987] BJ61,HJ6# ２４Ｖ １．１２Ｗ |
84999-10100 |
US $7.17 |
||
|
84730
|
84730
84730-90A00 Switch Assy, Heater Blower[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# FR HEATER |
84730-90A00 |
US $48.78 |
||
| replacement | |||||
|
84730
|
84730
84730-90A02
Switch Assy, Heater Blower
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# FR HEATER |
84730-90A02 |
— | ||
|
84732A
|
84732A
84732-90A00
Switch Assy, Heater Blower
[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
84732-90A00 |
— | ||
|
84751
|
84751
84751-90A04
Switch, Seat Heater
[10.1985 - 08.1987] BJ61,HJ6# |
84751-90A04 |
— | ||
|
84760
|
84760
84760-90A00
Switch Assy, Antenna
[10.1985 - 08.1986] BJ61,HJ6# |
84760-90A00 |
— | ||
|
84790
|
84790
84790-90A07 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [10.1985 - 08.1987] BJ61,HJ6# 24V |
84790-90A07 |
US $63.48 |
||
|
84790B
|
84790B
90981-16022 Bulb (For Winch Control Switch)[10.1985 - 08.1987] BJ61,HJ6# ２４Ｖ １．４Ｗ,24V 1.4W |
90981-16022 |
US $5.53 |
||
|
84870A
|
84870A
84870-14060 Switch Assy, Outer Mirror[10.1982 - 08.1987] BJ61,HJ6#..VLS |
84870-14060 |
US $78.62 |
||
|
85500
|
85500
85500-95402 Lighter Assy, Cigarette[11.1984 - 08.1987] BJ61,HJ6# |
85500-95402 |
US $66.54 |
||
|
85500B
|
85500B
90981-16020 Bulb, Position Indicator Lamp[11.1984 - 08.1987] BJ61,HJ6# ２４Ｖ １．８Ｗ,24V 1.8W |
90981-16020 |
US $6.09 |
||
|
85500E
|
85500E
74534-90K00 Plate, Fog Lamp Switch Caution, No.2[11.1984 - 08.1987] BJ61,HJ6# |
74534-90K00 |
US $3.58 |
||
|
87511
|
87511
87511-90A00 Plate, Seat Heater Caution[10.1985 - 08.1987] BJ61,HJ6# |
87511-90A00 |
US $9.46 |
||
|
5553822010
|
5553822010
55538-22010
Cover, Cooler Switch Hole
|
55538-22010 |
— | ||
|
9016040008
|
9016040008
90160-40008
New Genuine Part
|
90160-40008 |
— | ||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.68 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
