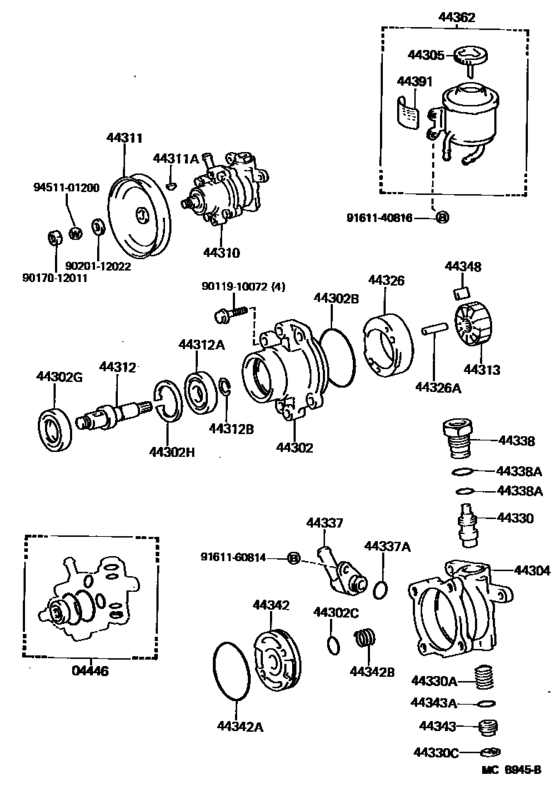

Vane Pump & Reservoir (Power Steering) ([11.1984 - ] (8411- )HJ6#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- HJ61
- body
- WGV
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-35010
Gasket Kit, Power Steering Pump
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
04446-35010 |
— | ||
| replacement | |||||
|
04446
|
04446
04446-30030 Gasket Kit, Power Steering Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
04446-30030 |
from US $36.27 |
||
|
44302
|
44302
44302-12010
Housing Sub-Assy, Vane Pump, Front
[11.1984 - 08.1987] HJ6# |
44302-12010 |
— | ||
|
44302B
|
44302B
90301-60001 Ring, O, No.1(For Vane Pump Housing)[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
90301-60001 |
US $4.89 |
||
|
44302C
|
44302C
96711-19016 Ring, O (For 5Th Shift Arm Shaft)[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
96711-19016 |
US $5.38 |
||
|
44302G
|
44302G
90311-24001 Seal, Oil, No.1(For Vane Pump Housing)[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
90311-24001 |
from US $3.94 |
||
|
44302H
|
44302H
90521-44002 Ring, Hole Snap(For Power Steering Gear Housing)[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
90521-44002 |
from US $2.93 |
||
|
44304
|
44304
44304-35040 Housing Sub-Assy, Vane Pump, Rear[11.1984 - 10.1986] HJ6# |
44304-35040 |
US $473.20 |
||
| replacements | |||||
|
44304
|
44304
44304-35041 Housing Sub-Assy, Vane Pump, Rear[11.1984 - 10.1986] HJ6# |
44304-35041 |
US $473.20 |
||
|
44304
|
44304
44343-12040 Seat, Flow Control Spring[11.1984 - 10.1986] HJ6# |
44343-12040 |
US $9.43 |
||
|
44304
|
44304
90501-12103 Spring, Compression(For Flow Control Valve)[11.1984 - 10.1986] HJ6# |
90501-12103 |
US $2.87 |
||
|
44304
|
44304
44304-35041 Housing Sub-Assy, Vane Pump, Rear[10.1986 - 08.1987] HJ6# |
44304-35041 |
US $473.20 |
||
|
44305
|
44305
44305-30020
Cap Sub-Assy, Vane Pump Oil Reservoir
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
44305-30020 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
44305-22061 |
from US $15.88 |
||
|
44310
|
44310
44320-60110
Pump Assy, Vane
[11.1984 - 08.1987] HJ6# |
44320-60110 |
— | ||
|
44311
|
44311
44311-60030
Pulley, Vane Pump
[10.1982 - 08.1987] HJ6# |
44311-60030 |
— | ||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[10.1981 - 08.1987] BJ6#,FJ6#,HJ6# |
90280-05008 |
US $3.94 |
||
|
44312
|
44312
44312-12010
Shaft, Vane Pump
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
44312-12010 |
— | ||
|
44312A
|
44312A
90363-17004 Bearing(For Vane Pump Shaft)[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
90363-17004 |
US $11.71 |
||
|
44312B
|
44312B
90520-15001
Ring, Snap, No.1(For Vane Pump Shaft)
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
90520-15001 |
— | ||
| replacement | |||||
|
44312B
|
44312B
90520-15005 Ring, Snap, No.1(For Vane Pump Shaft)[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
90520-15005 |
US $0.70 |
||
|
44313
|
44313
44313-12010
Rotor, Vane Pump
[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク無し,NO MARK |
44313-12010 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク無し,NO MARK |
44313-22040 |
US $103.38 |
||
|
44313
|
44313
44313-12020
Rotor, Vane Pump
[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク １,MARK 1 |
44313-12020 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク １,MARK 1 |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-12030 Rotor, Vane Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク ２,MARK 2 |
44313-12030 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク ２,MARK 2 |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-12040 Rotor, Vane Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク ３,MARK 3 |
44313-12040 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク ３,MARK 3 |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-12050 Rotor, Vane Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク ４,MARK 4 |
44313-12050 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク ４,MARK 4 |
44313-22080 |
US $103.38 |
||
|
44326
|
44326
44325-12010 Ring, Cam(For Vane Pump)[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク無し,NO MARK |
44325-12010 |
US $109.78 |
||
|
44326
|
44326
44325-12020 Ring, Cam(For Vane Pump)[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク １,MARK 1 |
44325-12020 |
US $113.57 |
||
|
44326
|
44326
44325-12030 Ring, Cam(For Vane Pump)[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク ２,MARK 2 |
44325-12030 |
US $116.48 |
||
|
44326
|
44326
44325-12040 Ring, Cam(For Vane Pump)[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク ３,MARK 3 |
44325-12040 |
US $116.48 |
||
|
44326
|
44326
44325-12050 Ring, Cam(For Vane Pump)[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク ４,MARK 4 |
44325-12050 |
US $116.48 |
||
|
44326A
|
44326A
90250-05008 Pin, Straight(For Vane Pump Cam Ring)[11.1984 - 08.1987] BJ61,FJ62,HJ6# 長さ＝２５，外径＝５．０ |
90250-05008 |
US $3.20 |
||
|
44330
|
44330
44330-30100 Valve Assy, Flow Control[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク Ａ,MARK A |
44330-30100 |
US $123.76 |
||
| replacement | |||||
|
44330
|
44330
44330-32670
Valve Assy, Flow Control
[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク Ａ,MARK A |
44330-32670 |
— | ||
|
44330
|
44330
44330-30110 Valve Assy, Flow Control[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク Ｂ,MARK B |
44330-30110 |
US $123.76 |
||
| replacement | |||||
|
44330
|
44330
44330-32680 Valve Assy, Flow Control[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク Ｂ,MARK B |
44330-32680 |
US $115.02 |
||
|
44330
|
44330
44330-30120 Valve Assy, Flow Control[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク Ｃ,MARK C |
44330-30120 |
US $123.76 |
||
| replacement | |||||
|
44330
|
44330
44330-32690 Valve Assy, Flow Control[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク Ｃ,MARK C |
44330-32690 |
US $115.02 |
||
|
44330
|
44330
44330-30130 Valve Assy, Flow Control[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク Ｄ,MARK D |
44330-30130 |
US $123.76 |
||
| replacement | |||||
|
44330
|
44330
44330-32700 Valve Assy, Flow Control[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク Ｄ,MARK D |
44330-32700 |
US $115.02 |
||
|
44330
|
44330
44330-30140 Valve Assy, Flow Control[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク Ｅ,MARK E |
44330-30140 |
US $123.76 |
||
| replacement | |||||
|
44330
|
44330
44330-32710 Valve Assy, Flow Control[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク Ｅ,MARK E |
44330-32710 |
US $115.02 |
||
|
44330
|
44330
44330-30150 Valve Assy, Flow Control[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク Ｆ,MARK F |
44330-30150 |
US $123.76 |
||
| replacement | |||||
|
44330
|
44330
44330-32720 Valve Assy, Flow Control[11.1984 - 08.1987] BJ61,FJ62,HJ6# マーク Ｆ,MARK F |
44330-32720 |
US $115.02 |
||
|
44330A
|
44330A
90501-12103 Spring, Compression(For Flow Control Valve)[10.1986 - 08.1987] FJ62,HJ6# |
90501-12103 |
US $2.87 |
||
|
44330A
|
44330A
90501-12447
Spring, Compression(For Flow Control Valve)
[10.1981 - 10.1986] BJ6#,FJ6#,HJ6# |
90501-12447 |
— | ||
|
44330C
|
44330C
96151-01700 Ring, Snap(For Flow Control Valve)[10.1981 - 08.1987] BJ6#,FJ6#,HJ6# |
96151-01700 |
US $3.30 |
||
|
44337
|
44337
44337-60020 Union, Power Steering Suction Port[11.1984 - 08.1987] HJ6# |
44337-60020 |
US $20.82 |
||
|
44337A
|
44337A
96711-19013 Ring, O(For Power Steering Suction Port)[11.1984 - 08.1987] HJ6# |
96711-19013 |
from US $2.57 |
||
|
44338
|
44338
44308-35030
Union Sub-Assy, Pressure Port
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
44308-35030 |
— | ||
|
44338A
|
44338A
90301-22001 Ring, O(For Pressure Port Union)[11.1984 - 08.1987] BJ61,FJ62,HJ6# 外径＝２５．５，内径＝２２．５,OD=25.5 |
90301-22001 |
US $10.57 |
||
|
44338A
|
44338A
96711-19014 O-Ring[11.1984 - 08.1987] HJ6# 外径＝１７．０，内径＝１３．０,OD=17.6 |
96711-19014 |
from US $2.19 |
||
|
44342
|
44342
44341-12010 Plate, Vane Pump Side, Front[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
44341-12010 |
US $91.73 |
||
|
44342A
|
44342A
90301-53002 Ring, O(For Vane Pump Side Plate Rear)[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
90301-53002 |
US $4.19 |
||
|
44343
|
44343
44343-12010
Seat, Flow Control Spring
[02.1982 - 10.1986] BJ6#,FJ6#,HJ6# |
44343-12010 |
— | ||
|
44343
|
44343
44343-12040 Seat, Flow Control Spring[10.1986 - 08.1987] FJ62,HJ6# |
44343-12040 |
US $9.43 |
||
|
44343A
|
44343A
96711-19014 O-Ring[11.1984 - 08.1987] HJ6# |
96711-19014 |
from US $2.19 |
||
|
44348
|
44348
44345-12010 Plate, Vane Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# 長さ＝１４．９９７,ROTOR:NO MARK |
44345-12010 |
US $11.83 |
||
|
44348
|
44348
44345-12020 Plate, Vane Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# 長さ＝１４．９９５,ROTOR:MARK 1 |
44345-12020 |
US $6.12 |
||
|
44348
|
44348
44345-12030 Plate, Vane Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# 長さ＝１４．９９３,ROTOR:MARK 2 |
44345-12030 |
US $6.12 |
||
|
44348
|
44348
44345-12040 Plate, Vane Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# 長さ＝１４．９９１,ROTOR:MARK 3 |
44345-12040 |
US $6.12 |
||
|
44348
|
44348
44345-12050 Plate, Vane Pump[11.1984 - 08.1987] BJ61,FJ62,HJ6# 長さ＝１４．９８９,ROTOR:MARK 4 |
44345-12050 |
US $6.12 |
||
|
44362
|
44362
44360-60011
Reservoir Assy, Vane Pump Oil
[10.1982 - 08.1987] HJ6# |
44360-60011 |
— | ||
|
44391
|
44391
44391-14010
Plate, Power Steering Oil Reservoir Caution
[09.1986 - 08.1987] FJ62,HJ6# |
44391-14010 |
— | ||
|
44391
|
44391
44391-30020
Plate, Power Steering Oil Reservoir Caution
[10.1981 - 09.1986] BJ6#,FJ6#,HJ6# |
44391-30020 |
— | ||
|
9011910072
|
9011910072
90119-10072 New Genuine Part |
90119-10072 |
US $2.87 |
||
|
9017012011
|
9017012011
90170-12011 Nut(For Vane Pump Pulley) |
90170-12011 |
from US $1.24 |
||
|
9020112022
|
9020112022
90201-12022 New Genuine Part |
90201-12022 |
US $1.51 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.59 |
||
