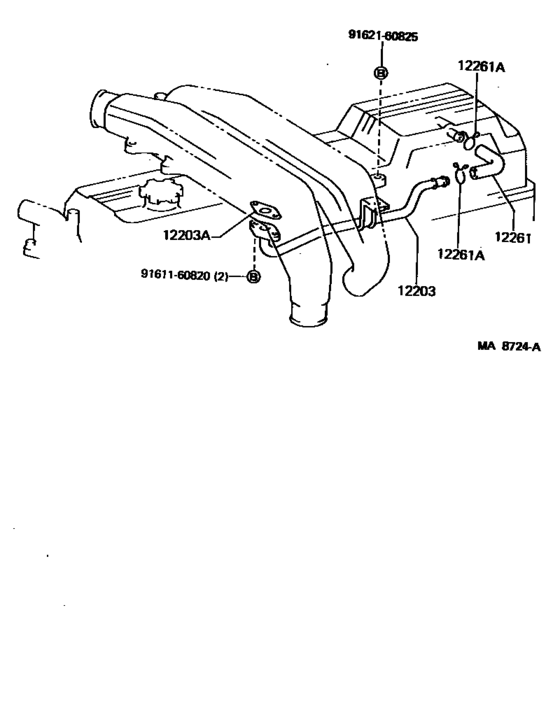

Ventilation Hose ([10.1985 - ] (8510- )12HT) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- HJ61
- body
- WGV
- Roof
- HRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 10.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VLS
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12203
|
12203
12203-68010
Pipe Sub-Assy, Ventilation
[10.1985 - 08.1987] 12HT..HJ61 |
12203-68010 |
— | ||
|
12203A
|
12203A
15149-68010
Gasket(For Ventilation Pipe)
[10.1985 - 08.1987] 12HT..HJ61 |
15149-68010 |
— | ||
| replacement | |||||
|
12203A
|
12203A
15149-68020 Gasket[10.1985 - 08.1987] 12HT..HJ61 |
15149-68020 |
from US $3.30 |
||
|
12261
|
12261
12261-68030
Hose, Ventilation
[10.1985 - 08.1987] 12HT..HJ61 |
12261-68030 |
— | ||
|
12261A
|
12261A
90467-23002 Clip Or Clamp(For Ventilation Hose)[10.1982 - 08.1987] 12HT,2H..HJ6# |
90467-23002 |
US $1.61 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9162160825
|
9162160825
91621-60825
BOLT
|
91621-60825 |
— | ||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
