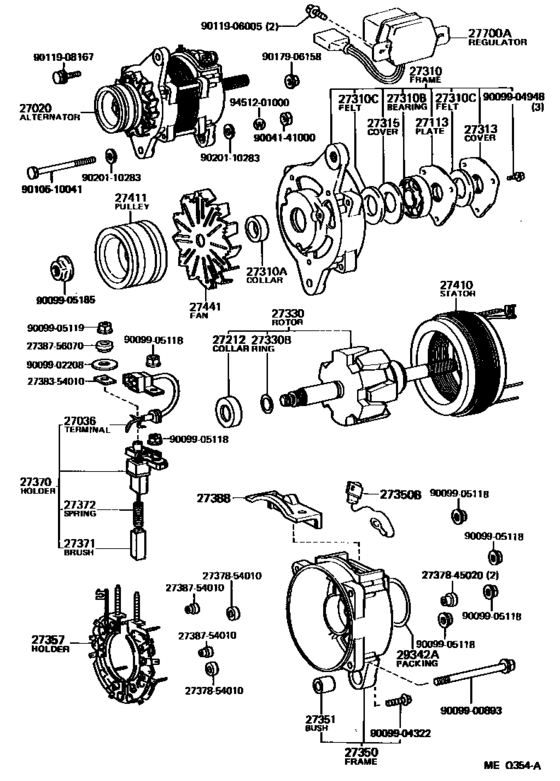

Alternator ([01.1990 - 08.1991] 12V 40A (9001-9108)2H) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1991
- Sales region
- U.S.A.
- Frame
- HJ75
- grade
- STD
- body
- PIC
- ENGINE
- 2H
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- LAND CRUISER 70
- From
- 01.1990
- To
- 08.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-56380 Alternator Assy[01.1990 - 08.1991] 2H..HJ75 12V 40A |
27020-56380 |
US $777.50 |
||
| replacement | |||||
|
27020
|
27020
27020-56270 Alternator Assy[01.1990 - 08.1991] 2H..HJ75 12V 40A |
27020-56270 |
US $866.32 |
||
|
27036
|
27036
27036-56100
Terminal Sub-Assy, Lead Wire, Alternator
[01.1990 - 08.1991] 2H..HJ75 |
27036-56100 |
— | ||
|
27113
|
27113
27312-57060
Plate, Bearing Retainer, Alternator
[01.1990 - 08.1991] 2H..HJ75 |
27312-57060 |
— | ||
|
27212
|
27212
27333-57060
Ring, Space(For Alternator Rotor)
[01.1990 - 08.1991] 2H..HJ75 |
27333-57060 |
— | ||
|
27310
|
27310
27310-56140
Frame Assy, Drive End, Alternator
[01.1990 - 08.1991] 2H..HJ75 |
27310-56140 |
— | ||
|
27310A
|
27310A
27412-57060
Collar Or Nut(For Alternator Drive End Frame)
[01.1990 - 08.1991] 2H..HJ75 |
27412-57060 |
— | ||
|
27310B
|
27310B
90099-10137 Bearing(For Alternator Drive End Frame)[01.1990 - 08.1991] 2H..HJ75 |
90099-10137 |
US $12.58 |
||
|
27310C
|
27310C
90099-02209
Felt(For Alternator Drive End Frame)
[01.1990 - 08.1991] 2H..HJ75 |
90099-02209 |
— | ||
|
27313
|
27313
27313-57060
Cover, Alternator Felt, Inner No.2
[01.1990 - 08.1991] 2H..HJ75 |
27313-57060 |
— | ||
|
27315
|
27315
27315-57060
Cover, Alternator Felt, Inner No.1
[01.1990 - 08.1991] 2H..HJ75 |
27315-57060 |
— | ||
|
27330
|
27330
27330-56140
Rotor Assy, Alternator
[01.1990 - 08.1991] 2H..HJ75 |
27330-56140 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-54200
Rotor Assy, Alternator
[01.1990 - 08.1991] 2H..HJ75 |
27330-54200 |
— | ||
|
27330B
|
27330B
90099-07103
Ring, Snap(For Alternator Rotor)
[01.1990 - 08.1991] 2H..HJ75 |
90099-07103 |
— | ||
|
27350
|
27350
27350-56140
Frame Assy, Rectifier End
[01.1990 - 08.1991] 2H..HJ75 |
27350-56140 |
— | ||
|
27350B
|
27350B
90099-52082 Condenser, Alternator[01.1990 - 08.1991] 2H..HJ75 |
90099-52082 |
US $10.19 |
||
|
27351
|
27351
27351-56013
Bush(For Alternator Rectifier End Frame)
[01.1990 - 08.1991] 2H..HJ75 |
27351-56013 |
— | ||
|
27357
|
27357
27357-54190
Holder, Alternator, W/rectifier
[01.1990 - 08.1991] 2H..HJ75 |
27357-54190 |
— | ||
|
27370
|
27370
27370-56100
Holder Assy, Alternator Brush
[01.1990 - 08.1991] 2H..HJ75 |
27370-56100 |
— | ||
|
27371
|
27371
27371-56070
Brush, Alternator
[01.1990 - 08.1991] 2H..HJ75 |
27371-56070 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-54412 Brush, Alternator[01.1990 - 08.1991] 2H..HJ75 |
27371-54412 |
US $3.32 |
||
|
27372
|
27372
27372-56070
Spring, Alternator Brush
[01.1990 - 08.1991] 2H..HJ75 |
27372-56070 |
— | ||
|
27388
|
27388
27388-56100
Cover, Frame Brush
[01.1990 - 08.1991] 2H..HJ75 |
27388-56100 |
— | ||
|
27410
|
27410
27410-54190
Stator Assy, Alternator
[01.1990 - 08.1991] 2H..HJ75 |
27410-54190 |
— | ||
| replacement | |||||
|
27410
|
27410
27410-54340
Stator Assy, Alternator
[01.1990 - 08.1991] 2H..HJ75 |
27410-54340 |
— | ||
|
27411
|
27411
27411-56380
Pulley, Alternator
[01.1990 - 08.1991] 2H..HJ75 |
27411-56380 |
— | ||
|
27441
|
27441
27441-56090
Fan, Alternator
[01.1990 - 08.1991] 2H..HJ75 |
27441-56090 |
— | ||
|
27700A
|
27700A
27700-15030
Regulator Assy, Generator
[01.1990 - 05.1993] 22R..RJ70;22R,3F,2H..FJ7#,HJ75,RJ77..GCC,GEN,SA |
27700-15030 |
— | ||
| replacement | |||||
|
27700A
|
27700A
27700-15040 Regulator Assy, Generator[01.1990 - 05.1993] 22R..RJ70;22R,3F,2H..FJ7#,HJ75,RJ77..GCC,GEN,SA |
27700-15040 |
US $211.20 |
||
|
29342A
|
29342A
90099-14055
Packing, Vacuum Pump
[01.1990 - 08.1991] 2H..HJ75 |
90099-14055 |
— | ||
|
2737845020
|
2737845020
27378-45020
Insulator, Alternator, No.1
|
27378-45020 |
— | ||
|
2737854010
|
2737854010
27378-54010
Insulator, Alternator, No.2
|
27378-54010 |
— | ||
|
2738354010
|
2738354010
27383-54010
Washer, Alternater Terminal Insulator, No.1
|
27383-54010 |
— | ||
|
2738754010
|
2738754010
27387-54010
Insulator, Terminal
|
27387-54010 |
— | ||
|
2738756070
|
2738756070
27387-56070
Insulator, Terminal
|
27387-56070 |
— | ||
|
9004141000
|
9004141000
90041-41000
New Genuine Part
|
90041-41000 |
— | ||
|
9009900893
|
9009900893
90099-00893
BOLT
|
90099-00893 |
— | ||
|
9009902208
|
9009902208
90099-02208
New Genuine Part
|
90099-02208 |
— | ||
|
9009904322
|
9009904322
90099-04322
New Genuine Part
|
90099-04322 |
— | ||
|
9009904948
|
9009904948
90099-04948
New Genuine Part
|
90099-04948 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9010510041
|
9010510041
90105-10041
New Genuine Part
|
90105-10041 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011908167
|
9011908167
90119-08167 New Genuine Part |
90119-08167 |
US $1.79 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
US $1.25 |
||
|
9020110283
|
9020110283
90201-10283 Washer, Plate(For Steering Tilt Lever) |
90201-10283 |
US $3.23 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
US $1.61 |
||
