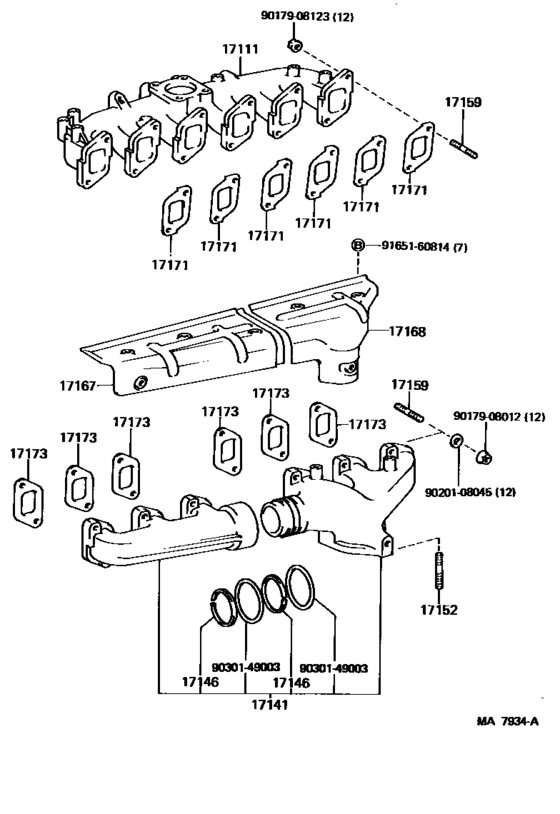

Manifold ([11.1984 - ] (8411- )2H) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- General
- Frame
- HJ75
- grade
- STD
- body
- PIC
- ENGINE
- 2H
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17141
|
17141
17140-68010 Manifold, Exhaust[11.1984 - 01.1990] 2H..HJ75 |
17140-68010 |
US $451.36 |
||
|
17146
|
17146
17151-68010 Ring, Exhaust Manifold[11.1984 - 01.1990] 2H..HJ75 |
17151-68010 |
US $22.85 |
||
|
17152
|
17152
90116-10056
Bolt, Stud(For Turbocharger)
[11.1984 - 05.1987] 3F..FJ7#; 2H..HJ75; 13BT,3B..BJ7# |
90116-10056 |
— | ||
| replacement | |||||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[11.1984 - 05.1987] 3F..FJ7#; 2H..HJ75; 13BT,3B..BJ7# |
90116-10087 |
from US $2.24 |
||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[05.1987 - 01.1990] 2H..HJ75; 3F..FJ7#; 13BT,3B..BJ7# |
90116-10087 |
from US $2.24 |
||
|
17159
|
17159
90116-08131 Bolt, Stud(For Manifold To Cylinder Head)[11.1984 - 01.1990] 2H..HJ75 INTAKE MANIFOLD |
90116-08131 |
US $4.30 |
||
|
17159
|
17159
90116-08188 Bolt, Stud(For Manifold To Cylinder Head)[11.1984 - 07.1986] 2H..HJ75 EXHAUST MANIFOLD |
90116-08188 |
US $2.77 |
||
| replacement | |||||
|
17159
|
17159
90116-08222 Bolt, Stud(For Manifold To Cylinder Head)[11.1984 - 07.1986] 2H..HJ75 EXHAUST MANIFOLD |
90116-08222 |
from US $1.52 |
||
|
17159
|
17159
90116-08222 Bolt, Stud(For Manifold To Cylinder Head)[07.1986 - 01.1990] 2H..HJ75 EXHAUST MANIFOLD |
90116-08222 |
from US $1.52 |
||
|
17167
|
17167
17167-68010
Insulator, Exhaust Manifold Heat, No.1
[11.1984 - 05.1987] 2H..HJ75 |
17167-68010 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-68011
Insulator, Exhaust Manifold Heat, No.1
[11.1984 - 05.1987] 2H..HJ75 |
17167-68011 |
— | ||
|
17167
|
17167
17167-68011
Insulator, Exhaust Manifold Heat, No.1
[05.1987 - 01.1990] 2H..HJ75 |
17167-68011 |
— | ||
|
17168
|
17168
17168-68010
Insulator, Exhaust Manifold Heat, No.2
[11.1984 - 05.1987] 2H..HJ75 |
17168-68010 |
— | ||
| replacement | |||||
|
17168
|
17168
17168-68011
Insulator, Exhaust Manifold Heat, No.2
[11.1984 - 05.1987] 2H..HJ75 |
17168-68011 |
— | ||
|
17168
|
17168
17168-68011
Insulator, Exhaust Manifold Heat, No.2
[05.1987 - 01.1990] 2H..HJ75 |
17168-68011 |
— | ||
|
17171
|
17171
17171-68011 Gasket, Intake To Exhaust Manifold[11.1984 - 01.1990] 2H..HJ75 |
17171-68011 |
US $5.56 |
||
|
17173
|
17173
17173-68010 Gasket, Exhaust Manifold To Head[11.1984 - 01.1990] 2H..HJ75 |
17173-68010 |
from US $5.42 |
||
|
9017908012
|
9017908012
90179-08012 NUT |
90179-08012 |
from US $1.92 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.78 |
||
|
9020108045
|
9020108045
90201-08045 New Genuine Part |
90201-08045 |
US $2.51 |
||
|
9030149003
|
9030149003
90301-49003 Gasket, Injection Pump |
90301-49003 |
from US $2.15 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
