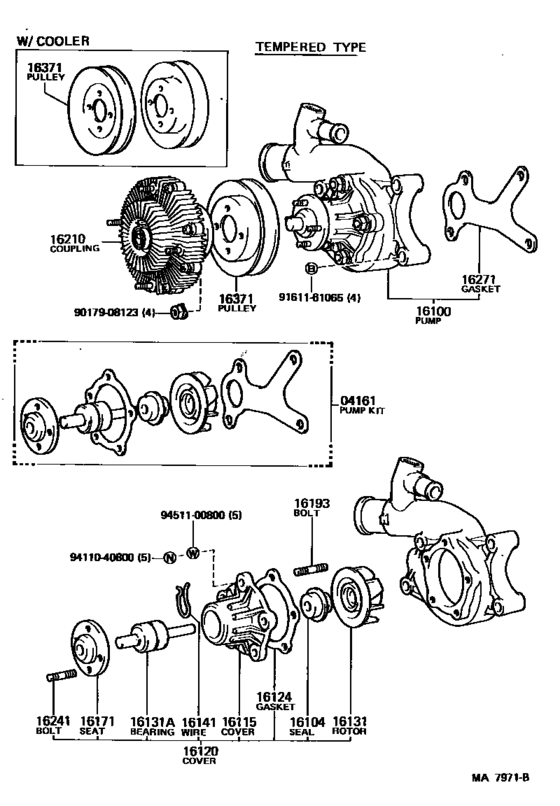

Water Pump ([11.1984 - ] (8411- )2H..ARL,SA) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- General
- Frame
- HJ75
- grade
- STD
- body
- PIC
- ENGINE
- 2H
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16104
|
16104
16104-15020 Seal Set, Water Pump[07.1985 - 01.1990] 2H..HJ75 |
16104-15020 |
US $21.26 |
||
|
16115
|
16115
16115-68010 Cover, Water Pump[11.1984 - 01.1990] 2H..HJ75 |
16115-68010 |
US $37.86 |
||
|
16124
|
16124
16129-68010
Gasket, Water Pump Cover
[11.1984 - 01.1990] 2H..HJ75 |
16129-68010 |
— | ||
| replacement | |||||
|
16124
|
16124
16129-68011
Gasket, Water Pump Cover
[11.1984 - 01.1990] 2H..HJ75 |
16129-68011 |
— | ||
|
16131
|
16131
16131-68010 Rotor, Water Pump[11.1984 - 01.1990] 2H..HJ75 |
16131-68010 |
US $12.81 |
||
|
16141
|
16141
16141-68010 Wire, Water Pump Bearing Retaining[11.1984 - 01.1990] 2H..HJ75 |
16141-68010 |
US $2.48 |
||
|
16193
|
16193
16193-47020
Bolt, Stud(For Water Pump Cover)
[11.1984 - 01.1990] 2H..HJ75 |
16193-47020 |
— | ||
|
16210
|
16210
16210-58012 Coupling Assy, Fluid[10.1985 - 01.1990] 2H..HJ75..SA |
16210-58012 |
US $515.42 |
||
|
16241
|
16241
92112-60818 Bolt, Stud(For Water Pump Coupling)[10.1985 - 01.1990] 2H..HJ75..SA |
92112-60818 |
US $3.58 |
||
|
16271
|
16271
16271-68010
Gasket, Water Pump
[11.1984 - 01.1990] 2H..HJ75 |
16271-68010 |
— | ||
| replacement | |||||
|
16271
|
16271
16271-68020 Gasket, Water PumpWATER PUMP [11.1984 - 01.1990] 2H..HJ75 |
16271-68020 |
US $17.92 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.78 |
||
|
9161161065
|
9161161065
91611-61065
Bolt(For Transaxle & Engine Setting)
|
91611-61065 |
— | ||
| replacement | |||||
|
9161161065
|
9161161065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.87 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
