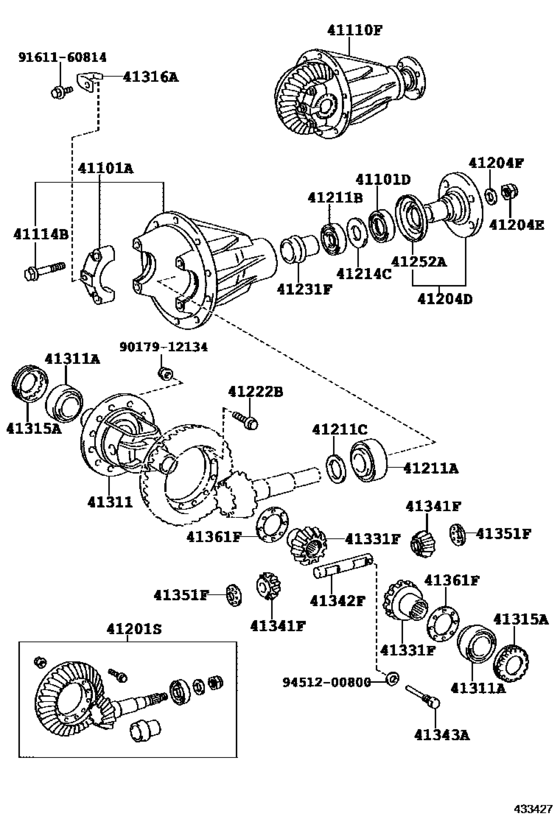

Front Axle Housing & Differential ([01.1990 - 08.1991] (9001-9108)HJ75) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1991
- Sales region
- General
- Frame
- HJ75
- grade
- STD
- body
- PIC
- ENGINE
- 2H
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- LAND CRUISER 70
- From
- 01.1990
- To
- 08.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101A
|
41101A
41101-60041
Carrier Sub-Assy, Differential, Rear
[01.1990 - 08.1991] HJ75 |
41101-60041 |
— | ||
|
41101D
|
41101D
90311-38035
Seal, Oil (For Differential Carrier)
[01.1990 - 05.1993] FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
90311-38035 |
— | ||
| replacement | |||||
|
41101D
|
41101D
90311-38047 Seal, Oil (For Differential Carrier)[01.1990 - 05.1993] FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
90311-38047 |
from US $6.06 |
||
|
41110F
|
41110F
41110-60450 Carrier Assy, Differential, Rear[01.1990 - 08.1991] HJ75 *FGR=37:10=3.700 |
41110-60450 |
US $2,839.20 |
||
| replacement | |||||
|
41110F
|
41110F
41110-60452 Carrier Assy, Differential, Rear[01.1990 - 08.1991] HJ75 *FGR=37:10=3.700 |
41110-60452 |
US $2,708.16 |
||
|
41114B
|
41114B
90105-12053 Bolt (For Rear Differential Carrier)[01.1990 - 05.1993] HZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7 #,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,LJ7#,PZJ7#,RJ7# |
90105-12053 |
from US $1.43 |
||
|
41201S
|
41201S
41201-69305 Final Gear Kit, Differential, Rear[01.1990 - 08.1991] HJ75 *FGR=37:10=3.700 |
41201-69305 |
US $1,108.02 |
||
| replacements | |||||
|
41201S
|
41201S
41201-69306 Final Gear Kit, Differential, Rear[01.1990 - 08.1991] HJ75 *FGR=37:10=3.700 |
41201-69306 |
US $1,103.65 |
||
|
41201S
|
41201S
41204-60050 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[01.1990 - 08.1991] HJ75 *FGR=37:10=3.700 |
41204-60050 |
from US $90.17 |
||
|
41201S
|
41201S
41214-26011 Slinger, Rear Differential Drive Pinion Oil[01.1990 - 08.1991] HJ75 *FGR=37:10=3.700 |
41214-26011 |
from US $4.39 |
||
|
41204D
|
41204D
41204-60030
Flange Sub-Assy, Rear Drive Pinion Companion, Rear
[01.1990 - 08.1991] HJ75 |
41204-60030 |
— | ||
| replacement | |||||
|
41204D
|
41204D
41204-60050 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[01.1990 - 08.1991] HJ75 |
41204-60050 |
from US $90.17 |
||
|
41204E
|
41204E
90179-22011
Nut (For Rear Drive Pinion)
[01.1990 - 08.1991] HJ75 |
90179-22011 |
— | ||
| replacement | |||||
|
41204E
|
41204E
90179-22016 Nut (For Manual Transmission Output Shaft Rear Set)[01.1990 - 08.1991] HJ75 |
90179-22016 |
from US $2.34 |
||
|
41204F
|
41204F
90201-22007 Washer (For Manual Transmission Output Shaft Set)[01.1990 - 08.1991] HJ75 |
90201-22007 |
from US $3.17 |
||
|
41211A
|
41211A
90366-40059 Bearing (For Rear Drive Pinion Rear)[01.1990 - 08.1991] HJ75 |
90366-40059 |
from US $47.54 |
||
|
41211B
|
41211B
90366-30038 Bearing (For Rear Drive Pinion Front)[01.1990 - 08.1991] HJ75 |
90366-30038 |
from US $32.09 |
||
|
41211C
|
41211C
90201-40551
Washer, Plate (For Rear Differential Drive Pinion)
[01.1990 - 08.1991] HJ75 T=1.05 |
90201-40551 |
— | ||
| replacement | |||||
|
41211C
|
41211C
90564-40004 Washer, Plate (For Rear Differential Drive Pinion)[01.1990 - 08.1991] HJ75 T=1.05 |
90564-40004 |
from US $2.74 |
||
|
41211C
|
41211C
90201-40552
Washer, Plate (For Rear Differential Drive Pinion)
[01.1990 - 08.1991] HJ75 T=1.10 |
90201-40552 |
— | ||
| replacement | |||||
|
41211C
|
41211C
90564-40007 Washer, Plate (For Rear Differential Drive Pinion)[01.1990 - 08.1991] HJ75 T=1.10 |
90564-40007 |
from US $2.72 |
||
|
41211C
|
41211C
90201-40553
Washer, Plate (For Rear Differential Drive Pinion)
[01.1990 - 08.1991] HJ75 T=1.15 |
90201-40553 |
— | ||
| replacement | |||||
|
41211C
|
41211C
90564-40009 Washer, Plate (For Rear Differential Drive Pinion)[01.1990 - 08.1991] HJ75 T=1.15 |
90564-40009 |
US $2.34 |
||
|
41211C
|
41211C
90201-40554
Washer, Plate (For Rear Differential Drive Pinion)
[01.1990 - 08.1991] HJ75 T=1.20 |
90201-40554 |
— | ||
| replacement | |||||
|
41211C
|
41211C
90564-40011 Washer, Plate (For Rear Differential Drive Pinion)[01.1990 - 08.1991] HJ75 T=1.20 |
90564-40011 |
from US $3.12 |
||
|
41211C
|
41211C
90201-40555
Washer, Plate (For Rear Differential Drive Pinion)
[01.1990 - 08.1991] HJ75 T=1.25 |
90201-40555 |
— | ||
| replacement | |||||
|
41211C
|
41211C
90564-40013 Washer, Plate (For Rear Differential Drive Pinion)[01.1990 - 08.1991] HJ75 T=1.25 |
90564-40013 |
US $2.34 |
||
|
41211C
|
41211C
90201-40556
Washer, Plate (For Rear Differential Drive Pinion)
[01.1990 - 08.1991] HJ75 T=1.30 |
90201-40556 |
— | ||
| replacement | |||||
|
41211C
|
41211C
90564-40015 Washer, Plate (For Rear Differential Drive Pinion)[01.1990 - 08.1991] HJ75 T=1.30 |
90564-40015 |
from US $3.40 |
||
|
41211C
|
41211C
90201-40557
Washer, Plate (For Rear Differential Drive Pinion)
[01.1990 - 08.1991] HJ75 T=1.35 |
90201-40557 |
— | ||
| replacement | |||||
|
41211C
|
41211C
90564-40017 Washer, Plate (For Rear Differential Drive Pinion)[01.1990 - 08.1991] HJ75 T=1.35 |
90564-40017 |
US $2.34 |
||
|
41211C
|
41211C
90201-40558
Washer, Plate (For Rear Differential Drive Pinion)
[01.1990 - 08.1991] HJ75 T=1.40 |
90201-40558 |
— | ||
| replacement | |||||
|
41211C
|
41211C
90564-40019 Washer, Plate (For Rear Differential Drive Pinion)[01.1990 - 08.1991] HJ75 T=1.40 |
90564-40019 |
US $2.34 |
||
|
41211C
|
41211C
90201-40559
Washer, Plate (For Rear Differential Drive Pinion)
[01.1990 - 08.1991] HJ75 T=1.45 |
90201-40559 |
— | ||
| replacement | |||||
|
41211C
|
41211C
90564-40021 Washer, Plate (For Rear Differential Drive Pinion)[01.1990 - 08.1991] HJ75 T=1.45 |
90564-40021 |
from US $3.12 |
||
|
41211C
|
41211C
90201-40560
Washer, Plate (For Rear Differential Drive Pinion)
[01.1990 - 08.1991] HJ75 T=1.50 |
90201-40560 |
— | ||
| replacement | |||||
|
41211C
|
41211C
90564-40023 Washer, Plate (For Rear Differential Drive Pinion)[01.1990 - 08.1991] HJ75 T=1.50 |
90564-40023 |
from US $3.17 |
||
|
41211C
|
41211C
90201-40561
Washer, Plate (For Rear Differential Drive Pinion)
[01.1990 - 08.1991] HJ75 T=1.55 |
90201-40561 |
— | ||
| replacement | |||||
|
41211C
|
41211C
90564-40025 Washer, Plate (For Rear Differential Drive Pinion)[01.1990 - 08.1991] HJ75 T=1.55 |
90564-40025 |
from US $3.12 |
||
|
41214C
|
41214C
41214-26010 Slinger, Rear Differential Drive Pinion Oil[01.1990 - 08.1991] HJ75 |
41214-26010 |
from US $7.33 |
||
|
41222B
|
41222B
41226-35012
Bolt (For Front Differential Ring Gear Set)
[01.1990 - 08.1991] HJ75 |
41226-35012 |
— | ||
|
41231F
|
41231F
41231-60030 Spacer, Rear Differential Drive Pinion Bearing[01.1990 - 08.1991] HJ75 |
41231-60030 |
from US $12.52 |
||
|
41252A
|
41252A
41252-35010
Deflector, Dust (For Rear Differential)
[01.1990 - 03.1993] FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
41252-35010 |
— | ||
| replacement | |||||
|
41252A
|
41252A
41252-35020 Deflector, Dust (For Rear Differential)[01.1990 - 03.1993] FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
41252-35020 |
from US $7.54 |
||
|
41311
|
41311
41311-60070 Case Sub-Assy, Rear Differential[01.1990 - 08.1991] HJ75 |
41311-60070 |
US $391.37 |
||
|
41311A
|
41311A
90368-50024 Bearing(For Rear Differential Case)[01.1990 - 08.1991] HJ75 |
90368-50024 |
from US $49.39 |
||
|
41315A
|
41315A
41315-30010 Nut, Rear Differential Bearing Adjusting[01.1990 - 08.1991] HJ75 |
41315-30010 |
US $8.06 |
||
|
41316A
|
41316A
41316-30010 Lock, Rear Differential Bearing Adjusting Nut[01.1990 - 05.1993] HJ75,LJ7#,RJ7# |
41316-30010 |
US $1.97 |
||
|
41331F
|
41331F
41331-25010 Gear, Rear Differential Side[01.1990 - 08.1991] HJ75 |
41331-25010 |
from US $90.85 |
||
|
41341F
|
41341F
41341-25010 Pinion, Rear Differential[01.1990 - 08.1991] HJ75 |
41341-25010 |
from US $44.73 |
||
|
41342F
|
41342F
41342-55010 Shaft, Rear Differential Pinion[01.1990 - 08.1991] HJ75 |
41342-55010 |
from US $17.71 |
||
|
41343A
|
41343A
41343-60030 Pin, Rear Differential Pinion Shaft[01.1990 - 08.1991] HJ75 |
41343-60030 |
from US $5.42 |
||
|
41351F
|
41351F
41351-25010 Washer, Rear Differential Pinion Thrust[01.1990 - 08.1991] HJ75 |
41351-25010 |
from US $7.32 |
||
|
41361F
|
41361F
41361-60010
Washer, Rear Differential Side Gear Thrust, No.1
[01.1990 - 08.1991] HJ75 T=1.60 |
41361-60010 |
— | ||
| replacement | |||||
|
41361F
|
41361F
41361-60011 Washer, Rear Differential Side Gear Thrust, No.1[01.1990 - 08.1991] HJ75 T=1.60 |
41361-60011 |
from US $5.64 |
||
|
41361F
|
41361F
41361-60020
Washer, Rear Differential Side Gear Thrust, No.1
[01.1990 - 08.1991] HJ75 T=1.75 |
41361-60020 |
— | ||
| replacement | |||||
|
41361F
|
41361F
41361-60021 Washer, Rear Differential Side Gear Thrust, No.1[01.1990 - 08.1991] HJ75 T=1.75 |
41361-60021 |
from US $5.59 |
||
|
41361F
|
41361F
41361-60030
Washer, Rear Differential Side Gear Thrust, No.1
[01.1990 - 08.1991] HJ75 T=1.90 |
41361-60030 |
— | ||
| replacement | |||||
|
41361F
|
41361F
41361-60031 Washer, Rear Differential Side Gear Thrust, No.1[01.1990 - 08.1991] HJ75 T=1.90 |
41361-60031 |
from US $6.65 |
||
|
41361F
|
41361F
41361-60040 Washer, Rear Differential Side Gear Thrust, No.1[01.1990 - 08.1991] HJ75 T=2.05 |
41361-60040 |
US $22.86 |
||
| replacement | |||||
|
41361F
|
41361F
41361-60041 Washer, Rear Differential Side Gear Thrust, No.1[01.1990 - 08.1991] HJ75 T=2.05 |
41361-60041 |
from US $8.17 |
||
|
9017912134
|
9017912134
90179-12134 NUT |
90179-12134 |
US $9.68 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
