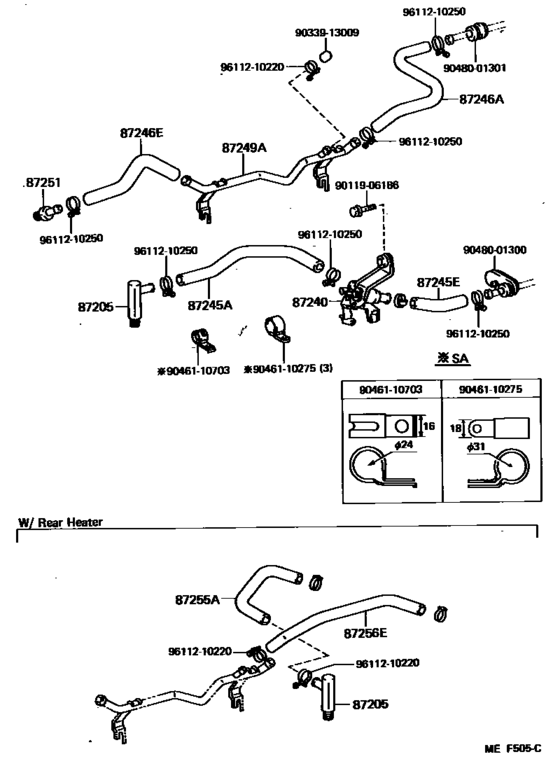

Heating & Air Conditioning - Water Piping ([11.1984 - ] (8411- )HJ75) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1990
- Sales region
- General
- Frame
- HJ75
- grade
- STD
- body
- PIC
- ENGINE
- 2H
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 01.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87205
|
87205
87251-95400 Joint Or Union, Front Heater Hose Through Or Inlet Valve[11.1984 - 01.1990] HJ75 FR HEATER |
87251-95400 |
US $12.23 |
||
|
87240
|
87240
87240-90K01
Valve Assy, Heater Water
[11.1984 - 01.1990] BJ74,FJ7#;HJ75..ARL,GEN |
87240-90K01 |
— | ||
|
87245A
|
87245A
87245-90K05 Hose, Heater Water, Inlet AHEATER WATER, INLET A [11.1984 - 01.1990] HJ75 |
87245-90K05 |
US $22.42 |
||
|
87245E
|
87245E
87245-1B060
Hose, Heater Water, Inlet E
[11.1984 - 01.1990] BJ7#,FJ7#,HJ75,LJ70,RJ70 |
87245-1B060 |
— | ||
|
87246A
|
87246A
87245-90K06 Hose, Heater Water, Outlet AHEATER WATER, OUTLET A [11.1984 - 01.1990] HJ75 |
87245-90K06 |
US $19.80 |
||
|
87246E
|
87246E
87245-90A19
Hose, Heater Water, Outlet E
[11.1984 - 01.1990] HJ75 |
87245-90A19 |
— | ||
|
87249A
|
87249A
87248-90K20
Pipe, Heater Water Outlet, A
[11.1984 - 08.1988] HJ75 |
87248-90K20 |
— | ||
| replacement | |||||
|
87249A
|
87249A
87248-90K28
Pipe, Heater Water Outlet, A
[11.1984 - 08.1988] HJ75 |
87248-90K28 |
— | ||
|
87249A
|
87249A
87248-90K28
Pipe, Heater Water Outlet, A
[08.1988 - 01.1990] HJ75 |
87248-90K28 |
— | ||
|
87251
|
87251
87251-30200 Union(For Water By-Pass Hose)[11.1984 - 01.1990] BJ7#,HJ75 |
87251-30200 |
from US $5.24 |
||
|
9011906186
|
9011906186
90119-06186
BOLT
|
90119-06186 |
— | ||
| replacement | |||||
|
9011906186
|
9011906186
90119-06420 BOLT WWASHER |
90119-06420 |
US $2.87 |
||
|
9033913009
|
9033913009
90339-13009 Plug(For Radiator) |
90339-13009 |
US $4.30 |
||
|
9046110275
|
9046110275
90461-10275 New Genuine Part |
90461-10275 |
US $4.37 |
||
|
9046110703
|
9046110703
90461-10703 New Genuine Part |
90461-10703 |
US $3.06 |
||
|
9048001300
|
9048001300
90480-01300
Grommet, Heater
|
90480-01300 |
— | ||
| replacement | |||||
|
9048001300
|
9048001300
87128-60080 Grommet, Heater |
87128-60080 |
US $4.40 |
||
|
9048001301
|
9048001301
90480-01301
New Genuine Part
|
90480-01301 |
— | ||
|
9611210220
|
9611210220
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96112-10220 |
US $0.61 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $4.30 |
||
