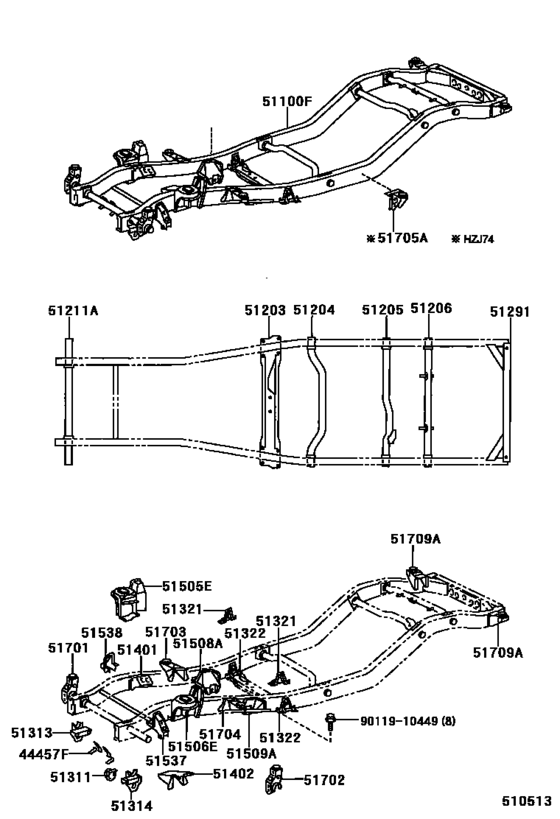

Frame ([08.1999 - ] (9908- )HZJ71,74) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2001
- Sales region
- Europe
- Frame
- HZJ71
- grade
- LX
- body
- HT
- ENGINE
- 1HZ
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 08.2001
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44457F
|
44457F
44457-60150 Bracket, Tube Support[08.1999 - 08.2001] HZJ7# |
44457-60150 |
US $2.80 |
||
|
51100F
|
51100F
51003-6A530
Frame Sub-Assy
[08.1999 - 08.2001] HZJ71 |
51003-6A530 |
— | ||
| replacements | |||||
|
51100F
|
51100F
51003-6A531
Frame Sub-Assy
[08.1999 - 08.2001] HZJ71 |
51003-6A531 |
— | ||
|
51100F
|
51100F
90119-10876 BOLT WWASHER[08.1999 - 08.2001] HZJ71 |
90119-10876 |
US $2.34 |
||
|
51203
|
51203
51202-60120
Crossmember Sub-Assy, Frame, No.2
[08.1999 - 08.2001] HZJ7# |
51202-60120 |
— | ||
| replacement | |||||
|
51203
|
51203
51202-60250 Crossmember Sub-Assy, Frame, No.2[08.1999 - 08.2001] HZJ7# |
51202-60250 |
US $415.25 |
||
|
51204
|
51204
51203-60132 Crossmember Sub-Assy, Frame, No.3[01.1992 - 08.2001] BJ73,HZJ70,71,73,74,LJ7#,RJ70..CBR,DSL |
51203-60132 |
US $131.17 |
||
|
51205
|
51205
51204-60071 Crossmember Sub-Assy, Frame, No.4[01.1990 - 08.2001] BJ73,HZJ70,71,73,74,PZJ70,73 |
51204-60071 |
US $198.02 |
||
|
51206
|
51206
51205-60160 Crossmember Sub-Assy, Frame, No.5[08.1999 - 03.2000] HZJ7# |
51205-60160 |
US $243.15 |
||
|
51206
|
51206
51250-60050 Crossmember Sub-Assy, Frame, No.5[03.2000 - 08.2001] HZJ7# |
51250-60050 |
US $198.02 |
||
|
51211A
|
51211A
51211-60050 Crossmember, Frame, Front[08.1999 - 08.2001] HZJ7# |
51211-60050 |
US $182 |
||
|
51291
|
51291
51209-60130 Crossmember, Frame, Rear[04.1990 - 08.2001] BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7# |
51209-60130 |
US $320.32 |
||
|
51311
|
51311
51311-60042 Gusset, Frame Front Crossmember[08.1999 - 08.2001] HZJ7# |
51311-60042 |
US $12.06 |
||
|
51313
|
51313
51313-60030 Gusset, Front Frame, Lower Rh[08.1999 - 08.2001] HZJ7# |
51313-60030 |
US $39.14 |
||
|
51314
|
51314
51314-60030 Gusset, Front Frame, Lower Lh[08.1999 - 08.2001] HZJ7# |
51314-60030 |
US $39.14 |
||
|
51321
|
51321
51321-60090
Gusset, Crossmember, No.2 Rh
[08.1999 - 08.2001] HZJ7# |
51321-60090 |
— | ||
|
51322
|
51322
51322-60070
Gusset, Crossmember, No.2 Lh
[08.1999 - 08.2001] HZJ7# |
51322-60070 |
— | ||
| replacement | |||||
|
51322
|
51322
51322-60080 Gusset, Crossmember, No.2 Rh[08.1999 - 08.2001] HZJ7# |
51322-60080 |
US $44.52 |
||
|
51401
|
51401
51421-60140 Bracket Sub-Assy, Engine Front Mounting, Rh[01.1990 - 08.2001] BJ73,HZJ7#,PZJ7# |
51421-60140 |
US $57.66 |
||
|
51402
|
51402
51422-60190
Bracket Sub-Assy, Engine Front Mounting, Lh
[08.1999 - 08.2001] HZJ7# |
51422-60190 |
— | ||
|
51505E
|
51505E
51505-60030 Bracket Sub-Assy, Front Spring Support, Rh[08.1999 - 08.2001] HZJ7# |
51505-60030 |
US $313.04 |
||
| replacements | |||||
|
51505E
|
51505E
48310-60101 Spring Assy, Front Suspension Hollow, Rh[08.1999 - 08.2001] HZJ7# |
48310-60101 |
US $59.98 |
||
|
51505E
|
51505E
48310-60121 Spring Assy, Front Suspension Hollow, Rh[08.1999 - 08.2001] HZJ7# |
48310-60121 |
US $46.65 |
||
|
51505E
|
51505E
51505-60031 Bracket Sub-Assy, Front Spring Support, Rh[08.1999 - 08.2001] HZJ7# |
51505-60031 |
US $304.01 |
||
|
51506E
|
51506E
51506-60030
Bracket Sub-Assy, Front Spring Support, Lh
[08.1999 - 08.2001] HZJ7# |
51506-60030 |
— | ||
| replacements | |||||
|
51506E
|
51506E
48310-60111 Spring Assy, Front Suspension Hollow, Lh[08.1999 - 08.2001] HZJ7# |
48310-60111 |
US $59.98 |
||
|
51506E
|
51506E
48310-60131 Spring Assy, Front Suspension Hollow, Lh[08.1999 - 08.2001] HZJ7# |
48310-60131 |
US $46.65 |
||
|
51506E
|
51506E
51506-60031 Bracket Sub-Assy, Front Spring Support, Lh[08.1999 - 08.2001] HZJ7# |
51506-60031 |
US $304.01 |
||
|
51508A
|
51508A
51518-60050 Bracket Sub-Assy, Lower Arm, Rh[08.1999 - 08.2001] HZJ7# |
51518-60050 |
US $74.95 |
||
|
51509A
|
51509A
51519-60030 Bracket Sub-Assy, Lower Arm, Lh[08.1999 - 08.2001] HZJ7# |
51519-60030 |
US $74.95 |
||
|
51537
|
51537
51547-60010
Bracket, Lateral Rod Support
[08.1999 - 08.2001] HZJ7# |
51547-60010 |
— | ||
|
51538
|
51538
51538-60040 Stay, Lateral Rod SupportLATERAL ROD SUPPORT [08.1999 - 08.2001] HZJ7# |
51538-60040 |
US $32.15 |
||
|
51701
|
51701
51701-60070 Bracket Sub-Assy, Cab Mounting, No.1 Rh[08.1999 - 08.2001] HZJ7# |
51701-60070 |
US $33.83 |
||
|
51702
|
51702
51701-60070 Bracket Sub-Assy, Cab Mounting, No.1 Rh[08.1999 - 08.2001] HZJ7# |
51701-60070 |
US $33.83 |
||
|
51703
|
51703
51703-60080
Bracket Sub-Assy, Cab Mounting, No.2, Rh
[08.1999 - 08.2001] HZJ7# |
51703-60080 |
— | ||
|
51704
|
51704
51704-60070
Bracket Sub-Assy, Cab Mounting, No.2 Lh
[08.1999 - 08.2001] HZJ7# |
51704-60070 |
— | ||
|
51709A
|
51709A
51709-60040
Bracket Sub-Assy, Body Rear End Mounting
[08.1999 - 08.2001] HZJ71,74,78 |
51709-60040 |
— | ||
|
9011910449
|
9011910449
90119-10449 BOLT |
90119-10449 |
US $3.58 |
||
