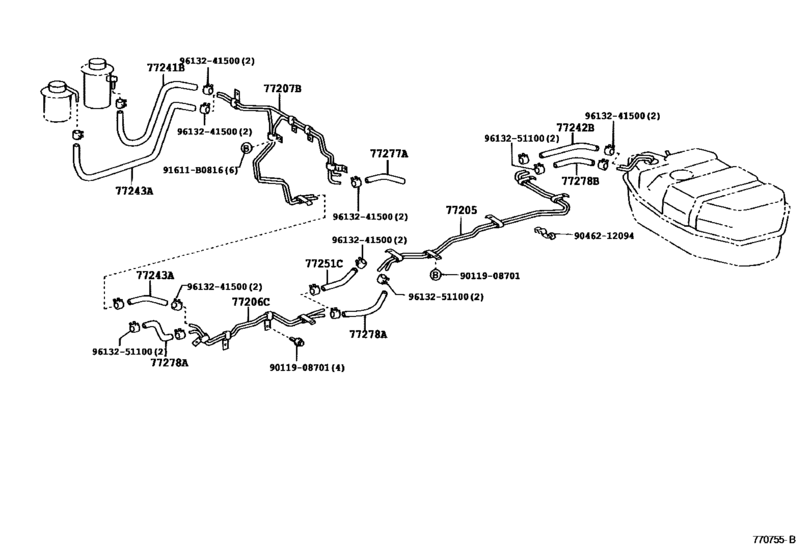

Fuel Tank & Tube ([08.1999 - ] (9908- )HZJ71,74) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2001
- Sales region
- Europe
- Frame
- HZJ71
- grade
- LX
- body
- HT
- ENGINE
- 1HZ
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 08.2001
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77205
|
77205
77205-6A200 Tube Sub-Assy, Fuel MainFUEL MAIN [08.1999 - 08.2001] HZJ71 |
77205-6A200 |
US $77.17 |
||
| replacement | |||||
|
77205
|
77205
77205-6A201 Tube Sub-Assy, Fuel Main[08.1999 - 08.2001] HZJ71 |
77205-6A201 |
US $77.17 |
||
|
77206C
|
77206C
77206-60180 Tube Sub-Assy, Fuel Main, No.2FUEL MAIN, NO.2 [08.1999 - 08.2001] HZJ71,74 |
77206-60180 |
US $63.92 |
||
| replacement | |||||
|
77206C
|
77206C
77206-60181 Tube Sub-Assy, Fuel Main, No.2[08.1999 - 08.2001] HZJ71,74 |
77206-60181 |
US $64.06 |
||
|
77207B
|
77207B
77207-60050 Tube Sub-Assy, Fuel Main, No.3FUEL MAIN, NO.3 [08.1999 - 08.2001] HZJ7# |
77207-60050 |
US $96.10 |
||
| replacement | |||||
|
77207B
|
77207B
77207-60051 Tube Sub-Assy, Fuel Main, No.3[08.1999 - 08.2001] HZJ7# |
77207-60051 |
US $96.10 |
||
|
77241B
|
77241B
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1999 - 08.2001] HZJ7# *H,L=240 |
95332-10030 |
US $17.30 |
||
|
77242B
|
77242B
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1999 - 08.2001] HZJ71,74 *H,L=190; HZJ78,79 *H,L=280 |
95332-10030 |
US $17.30 |
||
|
77243A
|
77243A
95332-10020 Hose, Fuel, No.2 (For Main Tube, No.1)[08.1999 - 08.2001] HZJ7# *H,L=200 |
95332-10020 |
US $12.19 |
||
|
77243A
|
77243A
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1999 - 08.2001] HZJ7# *H,L=240 |
95332-10030 |
US $17.30 |
||
|
77251C
|
77251C
95332-10020 Hose, Fuel, No.2 (For Main Tube, No.1)[08.1999 - 08.2001] HZJ71,74 *H,L=200 |
95332-10020 |
US $12.19 |
||
|
77277A
|
77277A
23273-17060 Hose, Fuel, No.1(For Return Tube, No.1)[08.1999 - 08.2001] HZJ7# L=360 |
23273-17060 |
US $23.69 |
||
|
77278A
|
77278A
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1999 - 08.2001] HZJ71,74 *H,L=200; HZJ78,79 *H,L=150; HZJ7# *H,L=200; HZJ71,74 *H,L=180; HZJ78,79 *H,L=180 |
95333-06020 |
— | ||
| replacement | |||||
|
77278A
|
77278A
95337-06020 Hose, Differential Pressure Control[08.1999 - 08.2001] HZJ71,74 *H,L=200; HZJ78,79 *H,L=150; HZJ7# *H,L=200; HZJ71,74 *H,L=180; HZJ78,79 *H,L=180 |
95337-06020 |
from US $10.21 |
||
|
77278A
|
77278A
95333-06030
Hose, Fuel
[08.1999 - 08.2001] HZJ71,74 *H,L=280 |
95333-06030 |
— | ||
| replacement | |||||
|
77278A
|
77278A
95338-06030 HOSE, FUEL[08.1999 - 08.2001] HZJ71,74 *H,L=280 |
95338-06030 |
from US $10.39 |
||
|
77278B
|
77278B
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1999 - 08.2001] HZJ71,74 *H,L=170; HZJ71,74 *H,L=180 |
95333-06020 |
— | ||
| replacement | |||||
|
77278B
|
77278B
95337-06020 Hose, Differential Pressure Control[08.1999 - 08.2001] HZJ71,74 *H,L=170; HZJ71,74 *H,L=180 |
95337-06020 |
from US $10.21 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
US $2.51 |
||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
US $1.61 |
||
|
9046212094
|
9046212094
90462-12094 New Genuine Part |
90462-12094 |
US $4.37 |
||
|
9613241500
|
9613241500
96132-41500 Clip(For Ventilation Tube) |
96132-41500 |
US $1.61 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $2.15 |
||
