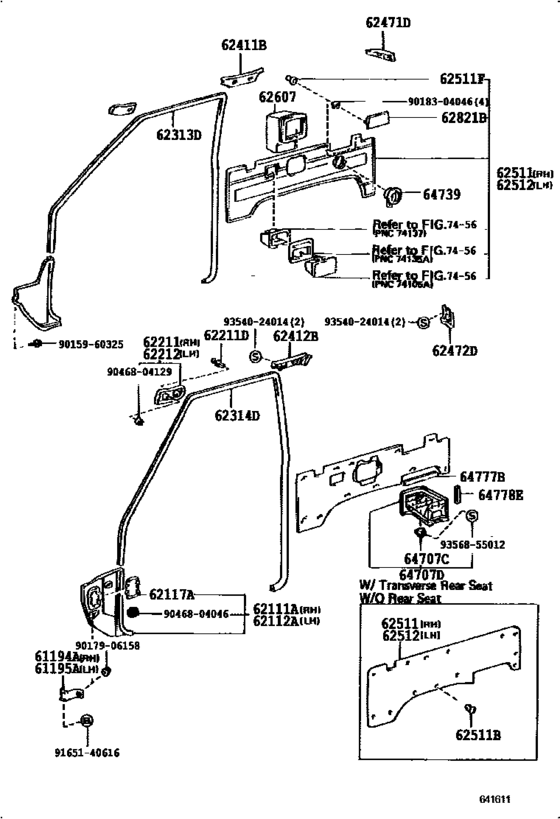

Inside Trim Board ([01.1990 - ] (9001- )HZJ70,71,KZJ70,LJ70,PZJ70,RJ70..HT..L X,STD) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2001
- Sales region
- Europe
- Frame
- HZJ71
- grade
- LX
- body
- HT
- ENGINE
- 1HZ
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 08.2001
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61194A
|
61194A
61194-60010
Bracket, Cowl Side Trim, Lh
[01.1992 - 08.2001] HZJ7#,LJ7#,PZJ75..LHD |
61194-60010 |
— | ||
|
61195A
|
61195A
61195-90K00
Bracket, Cowl Side Trim, Lh
[01.1990 - 08.2001] BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..LHD |
61195-90K00 |
— | ||
|
62111A
|
62111A
62101-60020-E0 Trim Sub-Assy, Cowl Side, RhCOWL SIDE, RH [08.1999 - 08.2001] HZJ7# W(DIFFERENTIAL LOCK),LT.OAK,TRIM4# |
62101-60020-E0 |
US $62.32 |
||
| replacement | |||||
|
62111A
|
62111A
62101-60020-S7
Trim Sub-Assy, Cowl Side, Rh
[08.1999 - 08.2001] HZJ7# W(DIFFERENTIAL LOCK),LT.OAK,TRIM4# |
62101-60020-S7 |
— | ||
|
62111A
|
62111A
62101-60020-S7
Trim Sub-Assy, Cowl Side, Rh
[08.1999 - 08.2001] HZJ7# W(DIFFERENTIAL LOCK),SLATE GRAY,TRIM1# |
62101-60020-S7 |
— | ||
|
62111A
|
62111A
62101-90K03-E0
Trim Sub-Assy, Cowl Side, Rh
[08.1999 - 08.2001] HZJ7# LT.OAK,TRIM4# |
62101-90K03-E0 |
— | ||
| replacement | |||||
|
62111A
|
62111A
62101-90K03-S7
Trim Sub-Assy, Cowl Side, Rh
[08.1999 - 08.2001] HZJ7# LT.OAK,TRIM4# |
62101-90K03-S7 |
— | ||
|
62111A
|
62111A
62101-90K03-S7
Trim Sub-Assy, Cowl Side, Rh
[08.1999 - 08.2001] HZJ7# SLATE GRAY,TRIM1# |
62101-90K03-S7 |
— | ||
|
62112A
|
62112A
62102-90K07-E0 Trim Sub-Assy, Cowl Side, LhCOWL SIDE, LH [08.1999 - 08.2001] HZJ7# MD.OAK,TRIM4# |
62102-90K07-E0 |
US $27.81 |
||
| replacement | |||||
|
62112A
|
62112A
62102-90K07-S7 Trim Sub-Assy, Cowl Side, LhCOWL SIDE, LH [08.1999 - 08.2001] HZJ7# MD.OAK,TRIM4# |
62102-90K07-S7 |
US $32.27 |
||
|
62112A
|
62112A
62102-90K07-S7 Trim Sub-Assy, Cowl Side, LhCOWL SIDE, LH [08.1999 - 08.2001] HZJ7# SLATE GRAY,TRIM1# |
62102-90K07-S7 |
US $32.27 |
||
|
62117A
|
62117A
62117-90K00-B0 Cover, Cowl Side Trim Service Hole[08.1999 - 08.2001] HZJ7# SLATE GRAY,TRIM1# |
62117-90K00-B0 |
US $26.70 |
||
|
62117A
|
62117A
62117-90K00-E0
Cover, Cowl Side Trim Service Hole
[08.1999 - 08.2001] HZJ7# MD.OAK,TRIM4# |
62117-90K00-E0 |
— | ||
| replacement | |||||
|
62117A
|
62117A
62117-90K00-B0 Cover, Cowl Side Trim Service Hole[08.1999 - 08.2001] HZJ7# MD.OAK,TRIM4# |
62117-90K00-B0 |
US $26.70 |
||
|
62211
|
62211
62211-90K04-B0
Garnish, Front Pillar, Rh
[08.1999 - 08.2001] HZJ71 LT.GRAY,TRIM1#,4# |
62211-90K04-B0 |
— | ||
|
62211D
|
62211D
90467-05032-B0 Clip(For Front Body Pillar Garnish)[08.1999 - 08.2001] HZJ71 LT.GRAY,TRIM1#,4# |
90467-05032-B0 |
US $2.04 |
||
|
62212
|
62212
62212-90K00-B0
Garnish, Front Pillar, Lh
[08.1999 - 08.2001] HZJ71 LT.GRAY,TRIM1#,4# |
62212-90K00-B0 |
— | ||
|
62313D
|
62313D
62313-60080-B1 Trim, Front Door Opening, Rh[08.1999 - 08.2001] HZJ71,78,79 LT.GRAY,TRIM1#,4# |
62313-60080-B1 |
US $52.92 |
||
|
62314D
|
62314D
62313-60080-B1 Trim, Front Door Opening, Rh[08.1999 - 08.2001] HZJ71,78,79 LT.GRAY,TRIM1#,4# |
62313-60080-B1 |
US $52.92 |
||
|
62411B
|
62411B
62411-90K00-B0 Garnish, Center Pillar, Upper Rh[08.1999 - 08.2001] HZJ71 LT.GRAY,TRIM1#,4# |
62411-90K00-B0 |
US $10.48 |
||
|
62411B
|
62411B
62411-90K01-B0
Garnish, Center Pillar, Upper Rh
[08.1999 - 08.2001] HZJ71 W(MOON ROOF),LT.GRAY,TRIM1#,4# |
62411-90K01-B0 |
— | ||
|
62412B
|
62412B
62412-90K00-B0
Garnish, Center Pillar, Upper Lh
[08.1999 - 08.2001] HZJ71 LT.GRAY,TRIM1#,4# |
62412-90K00-B0 |
— | ||
|
62412B
|
62412B
62412-90K01-B0
Garnish, Center Pillar, Upper Lh
[08.1999 - 08.2001] HZJ71 W(MOON ROOF),LT.GRAY,TRIM1#,4# |
62412-90K01-B0 |
— | ||
|
62471D
|
62471D
62471-90K01-B0
Garnish, Rear Pillar, Upper Rh
[08.1999 - 08.2001] HZJ71 LT.GRAY,TRIM1#,4# |
62471-90K01-B0 |
— | ||
|
62471D
|
62471D
62471-90K02-B0
Garnish, Rear Pillar, Upper Rh
[08.1999 - 08.2001] HZJ71 W(MOON ROOF),LT.GRAY,TRIM1#,4# |
62471-90K02-B0 |
— | ||
|
62472D
|
62472D
62472-90K00-B0 Garnish, Rear Pillar, Upper Lh[08.1999 - 08.2001] HZJ71 LT.GRAY,TRIM1#,4# |
62472-90K00-B0 |
US $5.07 |
||
|
62472D
|
62472D
62472-90K01-B0
Garnish, Rear Pillar, Upper Lh
[08.1999 - 08.2001] HZJ71 W(MOON ROOF),LT.GRAY,TRIM1#,4# |
62472-90K01-B0 |
— | ||
|
62511
|
62511
62510-60331-B1
Board, Quarter Inside Trim, Rh
[08.1999 - 08.2001] HZJ71 SLATE GRAY,TRIM1# |
62510-60331-B1 |
— | ||
| replacement | |||||
|
62511
|
62511
62510-60331-B2
Board, Quarter Inside Trim, Rh
[08.1999 - 08.2001] HZJ71 SLATE GRAY,TRIM1# |
62510-60331-B2 |
— | ||
|
62511
|
62511
62510-60331-E2
Board, Quarter Inside Trim, Rh
[08.1999 - 08.2001] HZJ71 MD.OAK,TRIM4# |
62510-60331-E2 |
— | ||
| replacement | |||||
|
62511
|
62511
62510-60331-E3 Board, Quarter Inside Trim, Rh[08.1999 - 08.2001] HZJ71 MD.OAK,TRIM4# |
62510-60331-E3 |
US $87.36 |
||
|
62511
|
62511
62510-60370-B0 Board, Quarter Inside Trim, RhQUARTER INSIDE TRIM, RH [08.1999 - 08.2001] HZJ71 W/O(REAR SEAT),SLATE GRAY,TRIM1# |
62510-60370-B0 |
US $44.97 |
||
|
62511
|
62511
62510-60370-E1 Board, Quarter Inside Trim, RhQUARTER INSIDE TRIM, RH [08.1999 - 08.2001] HZJ71 W/O(REAR SEAT),MD.OAK,TRIM4# |
62510-60370-E1 |
US $46.74 |
||
|
62511B
|
62511B
90467-12031-B0 Clip (For Quarter Trim)[08.1999 - 08.2001] HZJ71 SLATE GRAY,TRIM1# |
90467-12031-B0 |
US $2.87 |
||
|
62511B
|
62511B
90467-12031-E1 Clip (For Quarter Inside Trim Board)[08.1999 - 08.2001] HZJ71 LT.OAK,TRIM4# |
90467-12031-E1 |
US $2.87 |
||
|
62511F
|
62511F
67771-12050 Clip, Radiator Grille[03.1991 - 08.2001] BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7#..HT RED |
67771-12050 |
US $2.87 |
||
|
62511F
|
62511F
67771-30090 Retainer (For Quarter Inside Trim Board)[03.1991 - 08.2001] HZJ70,71,LJ70,77,PZJ70,RJ70..HT YELLOW |
67771-30090 |
US $3.40 |
||
|
62512
|
62512
62520-60151-B1
Board, Quarter Inside Trim, Lh
[08.1999 - 08.2001] HZJ71 SLATE GRAY,TRIM1# |
62520-60151-B1 |
— | ||
| replacement | |||||
|
62512
|
62512
62520-60G60-B0
Board, Quarter Inside Trim, Lh
[08.1999 - 08.2001] HZJ71 SLATE GRAY,TRIM1# |
62520-60G60-B0 |
— | ||
|
62512
|
62512
62520-60151-E2
Board, Quarter Inside Trim, Lh
[08.1999 - 08.2001] HZJ71 MD.OAK,TRIM4# |
62520-60151-E2 |
— | ||
| replacement | |||||
|
62512
|
62512
62520-60G60-E0 Board, Quarter Inside Trim, Lh[08.1999 - 08.2001] HZJ71 MD.OAK,TRIM4# |
62520-60G60-E0 |
US $87.36 |
||
|
62512
|
62512
62520-90K39-B0 Board, Quarter Inside Trim, LhQUARTER INSIDE TRIM, LH [08.1999 - 08.2001] HZJ71 W/O(REAR SEAT),SLATE GRAY,TRIM1# |
62520-90K39-B0 |
US $38.88 |
||
|
62512
|
62512
62520-90K39-E1 Board, Quarter Inside Trim, LhQUARTER INSIDE TRIM, LH [08.1999 - 08.2001] HZJ71 W/O(REAR SEAT),MD.OAK,TRIM4# |
62520-90K39-E1 |
US $38.88 |
||
|
62607
|
62607
62607-90K00-B0 Pocket Sub-Assy, Quarter Trim[08.1999 - 08.2001] HZJ71 SLATE GRAY,TRIM1# |
62607-90K00-B0 |
US $50.14 |
||
|
62607
|
62607
62607-90K00-E1 Pocket Sub-Assy, Quarter Trim[08.1999 - 08.2001] HZJ71 LT.OAK,TRIM4# |
62607-90K00-E1 |
US $50.14 |
||
|
62821B
|
62821B
62821-90K01-B0 Glille, Room Ventilation (GRAY)[08.1999 - 08.2001] HZJ71,74 SLATE GRAY,TRIM1# |
62821-90K01-B0 |
US $15.59 |
||
|
62821B
|
62821B
62821-90K01-E0 Glille, Room Ventilation (Sandy color)[08.1999 - 08.2001] HZJ71,74 MD.OAK,TRIM4# |
62821-90K01-E0 |
US $15.59 |
||
|
64707C
|
64707C
64769-90K00-B3 Knob, Jack Cover (Gray)[08.1999 - 08.2001] HZJ71,74,78 SLATE GRAY,TRIM1# |
64769-90K00-B3 |
US $2.97 |
||
|
64707C
|
64707C
64769-90K00-E0 Knob, Jack Cover[08.1999 - 08.2001] HZJ71,74,78 MD.OAK,TRIM4# |
64769-90K00-E0 |
US $3.06 |
||
|
64707D
|
64707D
64707-60030-B2
Cover Sub-Assy, Quarter Trim Jack
[08.1999 - 08.2001] HZJ71,74 SLATE GRAY,TRIM1# |
64707-60030-B2 |
— | ||
| replacement | |||||
|
64707D
|
64707D
64707-60030-B0 Cover Sub-Assy, Quarter Trim Jack[08.1999 - 08.2001] HZJ71,74 SLATE GRAY,TRIM1# |
64707-60030-B0 |
US $37.84 |
||
|
64707D
|
64707D
64707-60030-E3
Cover Sub-Assy, Quarter Trim Jack
[08.1999 - 08.2001] HZJ71,74 MD.OAK,TRIM4# |
64707-60030-E3 |
— | ||
| replacement | |||||
|
64707D
|
64707D
64707-60030-E2 Cover Sub-Assy, Quarter Trim Jack[08.1999 - 08.2001] HZJ71,74 MD.OAK,TRIM4# |
64707-60030-E2 |
US $49.06 |
||
|
64739
|
64739
64739-90K01-B0 Cover, Deck Trim Side Washer[08.1999 - 08.2001] HZJ71,74,78 SLATE GRAY,TRIM1# |
64739-90K01-B0 |
US $13.26 |
||
|
64739
|
64739
64739-90K01-E0 Cover, Deck Trim Side Washer[08.1999 - 08.2001] HZJ71,74,78 MD.OAK,TRIM4# |
64739-90K01-E0 |
US $13.26 |
||
|
64777B
|
64777B
64777-90K00-B0 Protector, Quarter, Inner[08.1999 - 08.2001] HZJ71,74,78 LT.GRAY,TRIM1#,4# |
64777-90K00-B0 |
US $6.89 |
||
|
64778E
|
64778E
64778-90K00-B0 Protecter, Quarter Inner, No.1[08.1999 - 08.2001] HZJ71,74 LT.GRAY,TRIM1#,4# |
64778-90K00-B0 |
US $5.82 |
||
| replacement | |||||
|
64778E
|
64778E
64778-90K01-B2 Protecter, Quarter Inner, No.1QUARTER INNER, NO.1 [08.1999 - 08.2001] HZJ71,74 LT.GRAY,TRIM1#,4# |
64778-90K01-B2 |
US $5.24 |
||
|
9015960325
|
9015960325
90159-60325 SCREW WWASHER |
90159-60325 |
US $0.96 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
US $1.25 |
||
|
9018304046
|
9018304046
90183-04046 New Genuine Part |
90183-04046 |
US $2.15 |
||
|
9046804046
|
9046804046
90468-04046 Clip |
90468-04046 |
US $2.75 |
||
|
9046804129
|
9046804129
90468-04129
New Genuine Part
|
90468-04129 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
US $1.08 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
US $2.15 |
||
|
9354024014
|
9354024014
93540-24014
New Genuine Part
|
93540-24014 |
— | ||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
