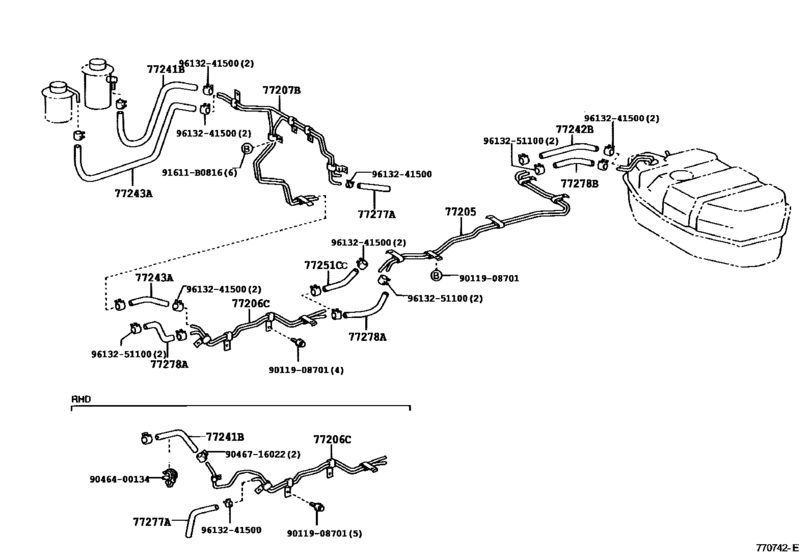

Fuel Tank & Tube ([08.1999 - ] FUEL TUBE (9908- )HZJ71) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2007
- Sales region
- General
- Frame
- HZJ71
- grade
- STD
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77205
|
77205
77205-6A200 Tube Sub-Assy, Fuel MainFUEL MAIN [08.1999 - 08.2001] HZJ71 |
77205-6A200 |
US $77.17 |
||
| replacement | |||||
|
77205
|
77205
77205-6A201 Tube Sub-Assy, Fuel Main[08.1999 - 08.2001] HZJ71 |
77205-6A201 |
US $77.17 |
||
|
77205
|
77205
77205-6A201 Tube Sub-Assy, Fuel Main[08.2001 - 01.2007] HZJ71 |
77205-6A201 |
US $77.17 |
||
|
77206C
|
77206C
77206-60180 Tube Sub-Assy, Fuel Main, No.2FUEL MAIN, NO.2 [08.1999 - 08.2001] HZJ71..LHD |
77206-60180 |
US $63.92 |
||
| replacement | |||||
|
77206C
|
77206C
77206-60181 Tube Sub-Assy, Fuel Main, No.2[08.1999 - 08.2001] HZJ71..LHD |
77206-60181 |
US $64.06 |
||
|
77206C
|
77206C
77206-60181 Tube Sub-Assy, Fuel Main, No.2[08.2001 - 01.2007] HZJ71..LHD |
77206-60181 |
US $64.06 |
||
|
77207B
|
77207B
77207-60050 Tube Sub-Assy, Fuel Main, No.3FUEL MAIN, NO.3 [08.1999 - 08.2001] HZJ71,78,79..LHD |
77207-60050 |
US $96.10 |
||
| replacement | |||||
|
77207B
|
77207B
77207-60051 Tube Sub-Assy, Fuel Main, No.3[08.1999 - 08.2001] HZJ71,78,79..LHD |
77207-60051 |
US $96.10 |
||
|
77207B
|
77207B
77207-60051 Tube Sub-Assy, Fuel Main, No.3[08.2001 - 01.2007] HZJ7#..LHD |
77207-60051 |
US $96.10 |
||
|
77207B
|
77207B
77207-60060 Tube Sub-Assy, Fuel Main, No.3[08.1999 - 08.2001] HZJ71,78,79..LHD..GEN W(FUEL FILTER X2) |
77207-60060 |
US $119.39 |
||
| replacement | |||||
|
77207B
|
77207B
77207-60061 Tube Sub-Assy, Fuel Main, No.3[08.1999 - 08.2001] HZJ71,78,79..LHD..GEN W(FUEL FILTER X2) |
77207-60061 |
US $117.94 |
||
|
77207B
|
77207B
77207-60061 Tube Sub-Assy, Fuel Main, No.3[08.2001 - 01.2007] HZJ7#..LHD..GEN W(FUEL FILTER X2) |
77207-60061 |
US $117.94 |
||
|
77241B
|
77241B
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1999 - 01.2007] HZJ71;HZJ78,79..LHD *H,L=240 |
95332-10030 |
US $17.30 |
||
|
77241B
|
77241B
95332-10040 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1999 - 01.2007] HZJ71..LHD *H,L=400,W(FUEL FILTER X2) |
95332-10040 |
US $19.49 |
||
|
77242B
|
77242B
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1999 - 01.2007] HZJ71 *H,L=190 |
95332-10030 |
US $17.30 |
||
|
77243A
|
77243A
95332-10020 Hose, Fuel, No.2 (For Main Tube, No.1)[08.1999 - 07.2002] HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=200; HZJ78,79..LHD *H,L=200 |
95332-10020 |
US $12.19 |
||
|
77243A
|
77243A
95332-10024 Hose, Fuel(For Fuel Evaporative Separator)[08.1999 -] HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=240 |
95332-10024 |
US $9.32 |
||
| replacement | |||||
|
77243A
|
77243A
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1999 -] HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=240 |
95332-10030 |
US $17.30 |
||
|
77243A
|
77243A
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1999 - 01.2007] HZJ71,78,79..LHD *H,L=240 |
95332-10030 |
US $17.30 |
||
|
77243A
|
77243A
95332-10040 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1999 - 05.2002] HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
95332-10040 |
US $19.49 |
||
|
77251C
|
77251C
95332-10020 Hose, Fuel, No.2 (For Main Tube, No.1)[08.1999 - 01.2007] HZJ71 *H,L=200 |
95332-10020 |
US $12.19 |
||
|
77277A
|
77277A
23273-17060 Hose, Fuel, No.1(For Return Tube, No.1)[08.1999 - 01.2007] HZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV L=360 |
23273-17060 |
US $23.69 |
||
|
77278A
|
77278A
77259-60520
Hose, Fuel, No.1 (For Return Tube, No.2)
[07.2002 - 01.2007] HZJ71 L=200 |
77259-60520 |
— | ||
|
77278A
|
77278A
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1999 - 07.2002] HZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=200; HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=180 |
95333-06020 |
— | ||
| replacement | |||||
|
77278A
|
77278A
95337-06020 Hose, Differential Pressure Control[08.1999 - 07.2002] HZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=200; HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=180 |
95337-06020 |
from US $10.21 |
||
|
77278A
|
77278A
95333-06030
Hose, Fuel
[08.1999 - 01.2007] FZJ79..CBU;FZJ78..GCC;FZJ78..RHD..GEN *H,L=300; FZJ71..RHD;FZJ74,HZJ71..GEN *H,L=280 |
95333-06030 |
— | ||
| replacement | |||||
|
77278A
|
77278A
95338-06030 HOSE, FUEL[08.1999 - 01.2007] FZJ79..CBU;FZJ78..GCC;FZJ78..RHD..GEN *H,L=300; FZJ71..RHD;FZJ74,HZJ71..GEN *H,L=280 |
95338-06030 |
from US $10.39 |
||
|
77278B
|
77278B
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1999 - 01.2007] FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71 *H,L=180 |
95333-06020 |
— | ||
| replacement | |||||
|
77278B
|
77278B
95337-06020 Hose, Differential Pressure Control[08.1999 - 01.2007] FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71 *H,L=180 |
95337-06020 |
from US $10.21 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
US $2.51 |
||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
US $1.61 |
||
|
9046400134
|
9046400134
90464-00134
New Genuine Part
|
90464-00134 |
— | ||
|
9046716022
|
9046716022
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
US $5.38 |
||
|
9613241500
|
9613241500
96132-41500 Clip(For Ventilation Tube) |
96132-41500 |
US $1.61 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $2.15 |
||
