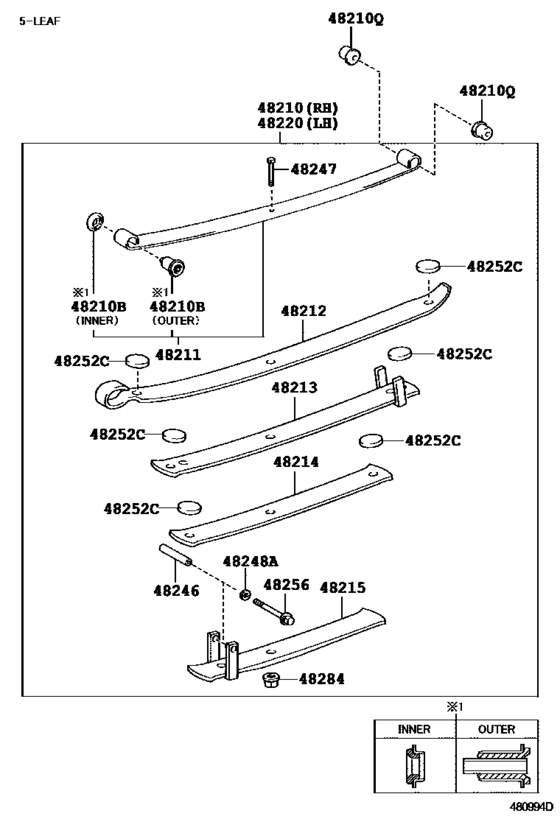

Rear Spring & Shock Absorber ([08.1999 - ] (9908- )FZJ71,74,HZJ71) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2007
- Sales region
- General
- Frame
- HZJ71
- grade
- STD
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-6A010
Spring Assy, Rear Rh
[08.1999 - 04.2001] FZJ71,74,HZJ71 5-LEAF; FZJ71,74,HZJ71..LHD 5-LEAF |
48210-6A010 |
— | ||
|
48210
|
48210
48210-6A070 Spring Assy, Rear RhREAR RH [04.2001 - 01.2007] FZJ71..GCC;FZJ74,HZJ71..LHD 5-LEAF |
48210-6A070 |
US $628.99 |
||
|
48210B
|
48210B
90389-14056 Bush(For Rear Spring Pin)[08.1999 - 01.2007] HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79 ..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU OUTER |
90389-14056 |
US $16.13 |
||
|
48210B
|
48210B
90389-22003 Bush(For Rear Spring Pin)[08.1999 - 01.2007] HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79 ..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU INNER |
90389-22003 |
US $6.45 |
||
|
48210Q
|
48210Q
90385-18021 Bush(For Rear Spring Shackle)[08.1999 - 04.2001] FZJ71,74,78,79,HZJ71,78,79 LOWER |
90385-18021 |
US $10.21 |
||
|
48210Q
|
48210Q
90385-18022 Bush(For Rear Spring Shackle)[08.1999 - 01.2007] HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79 ..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU UPPER |
90385-18022 |
US $6.63 |
||
|
48211
|
48211
48031-60070 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1999 - 01.2007] FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71 LH |
48031-60070 |
US $144.14 |
||
|
48211
|
48211
48201-6A010 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1999 - 04.2001] FZJ71,74,HZJ71..LHD RH |
48201-6A010 |
US $144.14 |
||
|
48212
|
48212
48212-6A010 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [08.1999 - 04.2001] FZJ71,74,HZJ71..LHD PASSENGER SIDE; FZJ71,74,HZJ71..LHD RH |
48212-6A010 |
US $107.74 |
||
|
48212
|
48212
48276-60070 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [08.1999 - 01.2007] FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71 LH |
48276-60070 |
US $144.14 |
||
|
48213
|
48213
48032-60070 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [08.1999 - 04.2001] FZJ71,74,HZJ71..LHD DRIVER SIDE |
48032-60070 |
US $120.85 |
||
|
48213
|
48213
48202-6A010 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [08.1999 - 04.2001] FZJ71,74,HZJ71..LHD PASSENGER SIDE; FZJ71,74,HZJ71..LHD RH |
48202-6A010 |
US $90.27 |
||
|
48214
|
48214
48214-6A010 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [08.1999 - 04.2001] FZJ71,74,HZJ71..LHD PASSENGER SIDE; FZJ71,74,HZJ71..LHD RH |
48214-6A010 |
US $48.78 |
||
|
48214
|
48214
48278-60070 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [08.1999 - 04.2001] FZJ71,74,HZJ71..LHD DRIVER SIDE; FZJ71,74,HZJ71..LHD LH |
48278-60070 |
US $64.50 |
||
|
48215
|
48215
48207-6A010 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [08.1999 - 04.2001] FZJ71,74,HZJ71..LHD PASSENGER SIDE; FZJ71,74,HZJ71..LHD RH |
48207-6A010 |
US $125.22 |
||
|
48215
|
48215
48209-60070 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [08.1999 - 04.2001] FZJ71,74,HZJ71..LHD DRIVER SIDE |
48209-60070 |
US $119.39 |
||
|
48220
|
48220
48220-60070
Spring Assy, Rear Lh
[08.1999 - 01.2007] FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71 5-LEAF |
48220-60070 |
— | ||
|
48246
|
48246
48146-60742 Case, Rear Spring Clip Bolt[08.1999 - 01.2007] FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71 |
48146-60742 |
US $1.25 |
||
|
48247
|
48247
48289-60010 Bolt, Front Spring, Center[08.1999 - 01.2007] FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71 |
48289-60010 |
US $14.34 |
||
|
48248A
|
48248A
48148-37010 Washer(For Rear Spring Clip Bolt)[08.1999 - 01.2007] FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71 |
48148-37010 |
US $2.15 |
||
|
48252C
|
48252C
48154-60230 Silencer, Front Spring, No.2[08.1999 - 01.2007] FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71 |
48154-60230 |
US $3.23 |
||
|
48256
|
48256
48156-60742 Bolt, Hexagon(For Rear Spring Clip Set)[08.1999 - 01.2007] FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71 |
48156-60742 |
US $3.58 |
||
|
48284
|
48284
48284-60062 Nut, Front Spring Center Bolt[08.1999 - 01.2007] FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71; FZJ79..CBU;HZJ79..GCC,GEN 11-LEAF |
48284-60062 |
US $3.94 |
