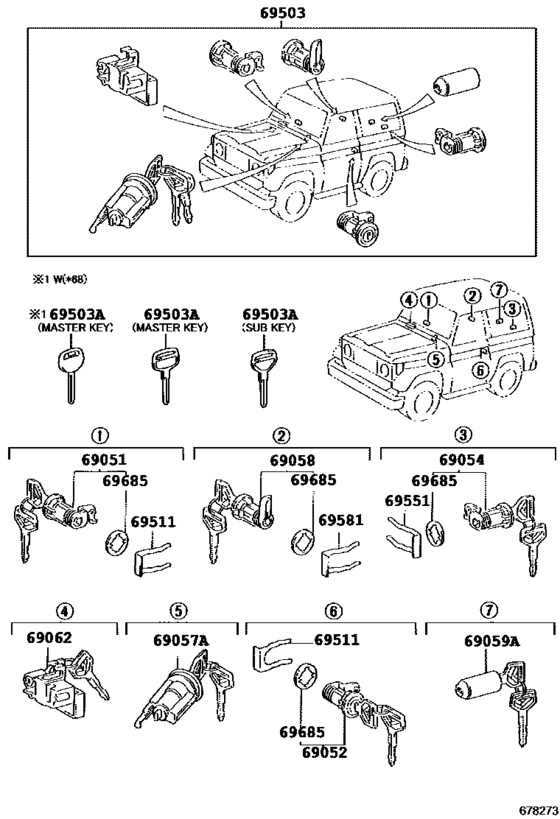

Lock Cylinder Set ([01.2007 - 07.2009] (0701-0907)FZJ71,76,78,HZJ71,76,78,VDJ76,78) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2018
- Sales region
- General
- Frame
- HZJ71
- grade
- STD
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-60140 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [01.2007 - 07.2009] FZJ7#,HZJ7#,VDJ7# |
69051-60140 |
from US $45.66 |
||
|
69051
|
69051
69051-60350 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [07.2009 - 08.2016] GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
69051-60350 |
from US $36.61 |
||
|
69052
|
69052
69052-60140 Cylinder & Key Set, Back Door LockDOOR LOCK, LH [01.2007 - 07.2009] FZJ7#,HZJ7#,VDJ7# |
69052-60140 |
from US $46.34 |
||
|
69052
|
69052
69052-60360 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [07.2009 - 08.2016] GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
69052-60360 |
from US $37.07 |
||
|
69054
|
69054
69052-60140 Cylinder & Key Set, Back Door LockDOOR LOCK, LH [01.2007 - 07.2009] FZJ71,76,78,HZJ71,76,78,VDJ76,78 |
69052-60140 |
from US $46.34 |
||
|
69054
|
69054
69052-60360 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [07.2009 - 08.2016] GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 |
69052-60360 |
from US $37.07 |
||
|
69057A
|
69057A
69057-60211 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [01.2007 - 07.2009] FZJ71,76,78,HZJ71,76,78; FZJ79,HZJ79..RHD SOUTH AFRICA SPEC |
69057-60211 |
from US $72 |
||
|
69057A
|
69057A
69057-60630 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [07.2009 - 08.2016] GRJ79,HZJ7#;GRJ71,76,78..LHD |
69057-60630 |
from US $63.52 |
||
|
69058
|
69058
69058-60120 Cylinder & Key Set, Fuel Filler LidFUEL FILLER LID [01.2007 - 07.2009] FZJ71,76,78,HZJ71,76,78,VDJ76,78 |
69058-60120 |
US $51.03 |
||
|
69058
|
69058
69058-60160 Cylinder & Key Set, Fuel Filler LidFUEL FILLER LID [07.2009 - 08.2016] GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 |
69058-60160 |
US $40.55 |
||
|
69059A
|
69059A
69059-60200 Cylinder & Key Set, Spare Wheel Lock[01.2007 - 07.2009] VDJ76,78; VDJ78 FUEL TANK-W/O(SUB TANK); HZJ78 FUEL TANK-W(SUB TANK); FZJ78 FUEL TANK-W(SUB TANK); HZJ79..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK); FZJ79..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK); FZJ71,76,HZJ71,7 |
69059-60200 |
US $74.42 |
||
|
69059A
|
69059A
69059-60270 Cylinder & Key Set, Spare Wheel LockSPARE WHEEL LOCK [07.2009 - 08.2016] VDJ76,78; VDJ78 FUEL TANK-W/O(SUB TANK); HZJ78 FUEL TANK-W(SUB TANK); GRJ78..LHD FUEL TANK-W(SUB TANK); HZJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK); GRJ79..PIC..CBU FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK); H |
69059-60270 |
US $36.75 |
||
|
69062
|
69062
69056-33190
Cylinder & Key Set, Glove Compartment Lock
[07.2009 - 08.2016] VDJ76,78;GRJ71,HZJ71,VDJ79..DCB,PIC,SOT; GRJ71,76,78..LHD..HT;GRJ79,HZJ7#..DCB,HT,PIC GLOVE BOX-W(KEY) |
69056-33190 |
— | ||
|
69062
|
69062
69056-60100-C0 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [01.2007 - 07.2009] VDJ76,78;HZJ71,VDJ79..PIC,SOT BLACK,TRIM1#,4#; FZJ7#,HZJ7#..HT,PIC GLOVE BOX-W(KEY),BLACK,TRIM1#,4# |
69056-60100-C0 |
from US $85.12 |
||
|
69503
|
69503
69005-60A90 Cylinder Set, LockLOCK [07.2009 - 08.2016] HZJ71,76,78..HT;GRJ71,76,78..LHD..HT |
69005-60A90 |
from US $174.08 |
||
|
69503
|
69503
69005-60B00 Cylinder Set, LockLOCK [07.2009 - 08.2016] GRJ71,HZJ71..SOT; HZJ71,76,78..HT;GRJ71,76,78..LHD..HT GLOVE BOX-W(KEY) |
69005-60B00 |
US $200.93 |
||
|
69503
|
69503
69005-60B10 Cylinder Set, LockLOCK [07.2009 - 08.2016] GRJ71..LHD..HT;GRJ76,HZJ71,76..HT SPARE WHEEL CARRIER-BACK DOOR FRAME,W(LOCK) |
69005-60B10 |
US $218.40 |
||
|
69503
|
69503
69005-60B20 Cylinder Set, LockLOCK [07.2009 - 08.2016] GRJ71,HZJ71..SOT SPARE WHEEL CARRIER-BACK DOOR FRAME,W(LOCK); GRJ71..LHD..HT;GRJ76,HZJ71,76..HT SPARE WHEEL CARRIER-BACK DOOR FRAME,W(LOCK)&GLOVE BOX-W(KEY) |
69005-60B20 |
from US $241.11 |
||
|
69503
|
69503
69005-6A563 Cylinder Set, Lock[01.2007 - 07.2009] FZJ71,76,78,HZJ71,76,78..HT |
69005-6A563 |
US $224.22 |
||
| replacement | |||||
|
69503
|
69503
69005-6B553
Cylinder Set, Lock
[01.2007 - 07.2009] FZJ71,76,78,HZJ71,76,78..HT |
69005-6B553 |
— | ||
|
69503
|
69503
69005-6A571-C0
Cylinder Set, Lock
[01.2007 - 07.2009] HZJ71..SOT BLACK,TRIM1#,4#; FZJ71,76,78,HZJ71,76,78..HT GLOVE BOX-W(KEY),BLACK,TRIM1#,4# |
69005-6A571-C0 |
— | ||
| replacement | |||||
|
69503
|
69503
69005-6B612-C0 Cylinder Set, Lock[01.2007 - 07.2009] HZJ71..SOT BLACK,TRIM1#,4#; FZJ71,76,78,HZJ71,76,78..HT GLOVE BOX-W(KEY),BLACK,TRIM1#,4# |
69005-6B612-C0 |
US $485.16 |
||
|
69503
|
69503
69005-6B523 Cylinder Set, Lock[01.2007 - 07.2009] FZJ71,76,HZJ71,76..HT SPARE WHEEL CARRIER-BACK DOOR FRAME,W(LOCK) |
69005-6B523 |
US $253.34 |
||
| replacement | |||||
|
69503
|
69503
69005-6B612-C0 Cylinder Set, Lock[01.2007 - 07.2009] FZJ71,76,HZJ71,76..HT SPARE WHEEL CARRIER-BACK DOOR FRAME,W(LOCK) |
69005-6B612-C0 |
US $485.16 |
||
|
69503
|
69503
69005-6B532-C0 Cylinder Set, Lock[01.2007 - 07.2009] HZJ71..SOT SPARE WHEEL CARRIER-BACK DOOR FRAME,W(LOCK),BLACK,TRIM1#,4#; FZJ71,76,HZJ71,76..HT SPARE WHEEL CARRIER-BACK DOOR FRAME,W(LOCK)&GLOVE BOX-W(KEY),BLACK,TRIM1#,4# |
69005-6B532-C0 |
US $314.50 |
||
| replacement | |||||
|
69503
|
69503
69005-6B612-C0 Cylinder Set, Lock[01.2007 - 07.2009] HZJ71..SOT SPARE WHEEL CARRIER-BACK DOOR FRAME,W(LOCK),BLACK,TRIM1#,4#; FZJ71,76,HZJ71,76..HT SPARE WHEEL CARRIER-BACK DOOR FRAME,W(LOCK)&GLOVE BOX-W(KEY),BLACK,TRIM1#,4# |
69005-6B612-C0 |
US $485.16 |
||
|
69503A
|
69503A
90999-00163
Key, Blank
[01.2007 - 07.2009] HZJ71..SOT MASTER KEY; HZJ79..RHD MASTER KEY,SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W/O(SUB TANK)&GLO VE BOX-W(KEY); FZJ79..RHD MASTER KEY,SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY)&GLOVE BOX-W(KEY); HZJ79..RHD |
90999-00163 |
— | ||
|
69503A
|
69503A
90999-00165 Key, Blank[01.2007 - 07.2009] HZJ71..SOT SUB KEY; HZJ79..RHD SUB KEY,SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY) & W/O(SUB TANK)&GLOVE BOX-W(KEY); FZJ79..RHD SUB KEY,SOUTH AFRICA SPEC&FUEL TANK-W(FUEL TANK CAP, W/KEY)&GLOVE BOX-W(KEY); HZJ79..RHD SUB KEY,SO |
90999-00165 |
US $8.74 |
||
|
69503A
|
69503A
90999-00174 Key, Blank[01.2007 - 07.2009] FZJ7#,HZJ7# MASTER KEY,W(*68) |
90999-00174 |
from US $13 |
||
|
69503A
|
69503A
90999-00200 Key, Blank[07.2009 - 08.2016] GRJ71,HZJ71..SOT SUB KEY,W(*68); HZJ78 SUB KEY,W(*68),FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY); GRJ78..LHD SUB KEY,W(*68),FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY); HZJ79..PIC..CBU SUB KEY,W(*68),FUEL TANK-W(FUEL TANK CAP, W/KEY) & W/O(SUB |
90999-00200 |
US $12.79 |
||
|
69503A
|
69503A
90999-00251 Key, Blank[07.2009 - 08.2016] GRJ71,HZJ71..SOT MASTER KEY,W(*68); HZJ78 MASTER KEY,W(*68),FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY); GRJ78..LHD MASTER KEY,W(*68),FUEL TANK-W(SUB TANK)&GLOVE BOX-W(KEY); HZJ79..PIC..CBU MASTER KEY,W(*68),FUEL TANK-W(FUEL TANK CAP, W/KEY |
90999-00251 |
US $7.26 |
||
|
69511
|
69511
69511-60010 Retainer, Front Door Lock Cylinder[01.2007 - 08.2016] GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
69511-60010 |
from US $8.17 |
||
|
69551
|
69551
69511-60010 Retainer, Front Door Lock Cylinder[01.2007 - 08.2016] GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 |
69511-60010 |
from US $8.17 |
||
|
69581
|
69581
69512-87001 Retainer, Front Door Lock Cylinder[01.2007 - 08.2016] GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
69512-87001 |
US $1.79 |
||
|
69685
|
69685
69513-32010 Pad, Lock Cylinder[01.2007 - 08.2016] GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
69513-32010 |
from US $1.37 |
||
