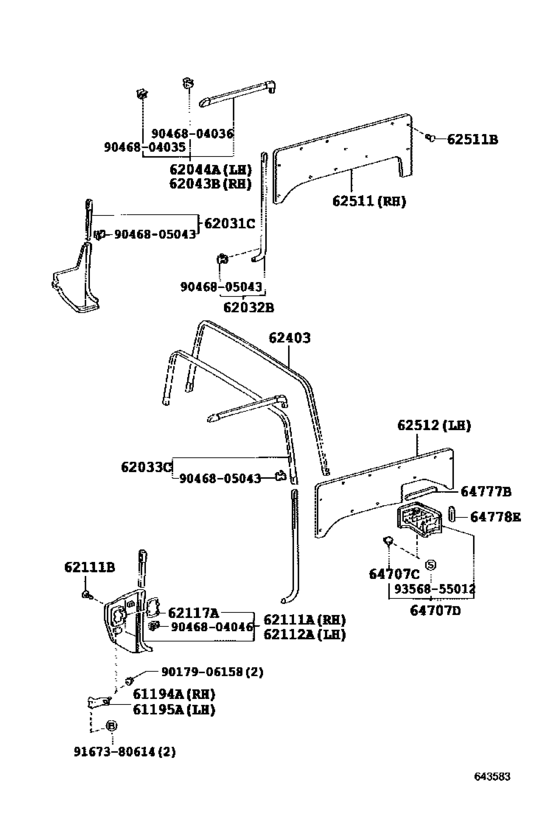

Inside Trim Board ([01.2007 - ] (0701- )SOT) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2018
- Sales region
- U.S.A.
- Frame
- HZJ71
- grade
- STD
- body
- SOT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61194A
|
61194A
61194-90K00 Bracket, Cowl Side Trim, Rh[01.2007 - 07.2009] FZJ71,78,79,HZJ7#,VDJ7#..RHD |
61194-90K00 |
US $5.59 |
||
|
61195A
|
61195A
61194-60010
Bracket, Cowl Side Trim, Lh
[01.2007 - 07.2009] FZJ71,78,79,HZJ7#,VDJ7#..RHD |
61194-60010 |
— | ||
|
62031C
|
62031C
62031-60020-B0
Trim Sub-Assy, Front Door Opening, No.1
[07.2009 - 08.2016] HZJ71..SOT LT.GRAY,TRIM1# |
62031-60020-B0 |
— | ||
|
62031C
|
62031C
62031-90K00-B1 Trim Sub-Assy, Front Door Opening, No.1[01.2007 - 07.2009] HZJ71..SOT LT.GRAY,TRIM1#,4# |
62031-90K00-B1 |
US $11.97 |
||
|
62032B
|
62032B
62032-60010-B0
Trim Sub-Assy, Front Door Opening, No.2
[07.2009 - 08.2016] HZJ71..SOT LT.GRAY,TRIM1# |
62032-60010-B0 |
— | ||
|
62032B
|
62032B
62032-90K00-B1 Trim Sub-Assy, Front Door Opening, No.2[01.2007 - 07.2009] HZJ71..SOT LT.GRAY,TRIM1#,4# |
62032-90K00-B1 |
US $26.05 |
||
|
62033C
|
62033C
62033-60020-B0
Trim Sub-Assy, Front Door Opening, No.3
[07.2009 - 08.2016] HZJ71..SOT LT.GRAY,TRIM1# |
62033-60020-B0 |
— | ||
|
62033C
|
62033C
62033-90K01-B0 Trim Sub-Assy, Front Door Opening, No.3[01.2007 - 07.2009] HZJ71..SOT LT.GRAY,TRIM1#,4# |
62033-90K01-B0 |
US $49.90 |
||
|
62043B
|
62043B
62043-60020-B0
Trim Sub-Assy, Front Door Opening, No.3 Rh
[07.2009 - 08.2016] HZJ71..SOT LT.GRAY,TRIM1# |
62043-60020-B0 |
— | ||
|
62043B
|
62043B
62043-90K00-B0 Trim Sub-Assy, Front Door Opening, No.3 Rh[01.2007 - 07.2009] HZJ71..SOT LT.GRAY,TRIM1#,4# |
62043-90K00-B0 |
US $25.33 |
||
|
62044A
|
62044A
62044-60020-B0
Trim Sub-Assy, Front Door Opening, No.3 Lh
[07.2009 - 08.2016] HZJ71..SOT LT.GRAY,TRIM1# |
62044-60020-B0 |
— | ||
|
62044A
|
62044A
62044-90K00-B0 Trim Sub-Assy, Front Door Opening, No.3 Lh[01.2007 - 07.2009] HZJ71..SOT LT.GRAY,TRIM1#,4# |
62044-90K00-B0 |
US $23.41 |
||
|
62111A
|
62111A
62101-60150-B0 Trim Sub-Assy, Cowl Side, RhCOWL SIDE, RH [07.2009 - 08.2016] GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
62101-60150-B0 |
US $33.20 |
||
|
62111A
|
62111A
62101-90K07-E0
Trim Sub-Assy, Cowl Side, Rh
[01.2007 - 07.2009] FZJ71,78,79,HZJ7#,VDJ7#..RHD MD.OAK,TRIM4# |
62101-90K07-E0 |
— | ||
| replacement | |||||
|
62111A
|
62111A
62101-90K07-S7 Trim Sub-Assy, Cowl Side, Rh[01.2007 - 07.2009] FZJ71,78,79,HZJ7#,VDJ7#..RHD MD.OAK,TRIM4# |
62101-90K07-S7 |
US $35.29 |
||
|
62111A
|
62111A
62101-90K07-S7 Trim Sub-Assy, Cowl Side, Rh[01.2007 - 07.2009] FZJ71,78,79,HZJ7#,VDJ7#..RHD SLATE GRAY,TRIM1# |
62101-90K07-S7 |
US $35.29 |
||
|
62111B
|
62111B
90467-06155 Clip[07.2009 - 08.2016] GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
90467-06155 |
US $1.25 |
||
|
62112A
|
62112A
62102-60170-B0
Trim Sub-Assy, Cowl Side, Lh
[01.2007 - 07.2009] FZJ71,78,79,HZJ7#..RHD EXTINGUISHER-WITH,SLATE GRAY,TRIM1# |
62102-60170-B0 |
— | ||
| replacement | |||||
|
62112A
|
62112A
62102-60180-B0
Trim Sub-Assy, Cowl Side, Lh
[01.2007 - 07.2009] FZJ71,78,79,HZJ7#..RHD EXTINGUISHER-WITH,SLATE GRAY,TRIM1# |
62102-60180-B0 |
— | ||
|
62112A
|
62112A
62102-60170-E0
Trim Sub-Assy, Cowl Side, Lh
[01.2007 - 07.2009] FZJ71,78,79,HZJ7#..RHD EXTINGUISHER-WITH,MD.OAK,TRIM4# |
62102-60170-E0 |
— | ||
| replacement | |||||
|
62112A
|
62112A
62102-60180-B0
Trim Sub-Assy, Cowl Side, Lh
[01.2007 - 07.2009] FZJ71,78,79,HZJ7#..RHD EXTINGUISHER-WITH,MD.OAK,TRIM4# |
62102-60180-B0 |
— | ||
|
62112A
|
62112A
62102-60180-B0
Trim Sub-Assy, Cowl Side, Lh
[01.2007 - 07.2009] FZJ71,78,79,HZJ7#..RHD SLATE GRAY,TRIM1# |
62102-60180-B0 |
— | ||
|
62112A
|
62112A
62102-60180-E0
Trim Sub-Assy, Cowl Side, Lh
[01.2007 - 07.2009] FZJ71,78,79,HZJ7#..RHD MD.OAK,TRIM4# |
62102-60180-E0 |
— | ||
| replacement | |||||
|
62112A
|
62112A
62102-60180-B0
Trim Sub-Assy, Cowl Side, Lh
[01.2007 - 07.2009] FZJ71,78,79,HZJ7#..RHD MD.OAK,TRIM4# |
62102-60180-B0 |
— | ||
|
62112A
|
62112A
62102-60200-B0
Trim Sub-Assy, Cowl Side, Lh
[07.2009 - 08.2014] GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
62102-60200-B0 |
— | ||
|
62112A
|
62112A
62102-60201-B0
Trim Sub-Assy, Cowl Side, Lh
[08.2014 - 04.2016] GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
62102-60201-B0 |
— | ||
| replacement | |||||
|
62112A
|
62112A
62102-60202-B0
Trim Sub-Assy, Cowl Side, Lh
[08.2014 - 04.2016] GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
62102-60202-B0 |
— | ||
|
62112A
|
62112A
62102-60202-B0
Trim Sub-Assy, Cowl Side, Lh
[05.2016 - 08.2016] GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
62102-60202-B0 |
— | ||
|
62112A
|
62112A
62102-60210-B0
Trim Sub-Assy, Cowl Side, Lh
[07.2009 - 08.2014] GRJ71,78,79,HZJ7#..RHD EXTINGUISHER-WITH,SLATE GRAY,TRIM1# |
62102-60210-B0 |
— | ||
|
62112A
|
62112A
62102-60211-B0
Trim Sub-Assy, Cowl Side, Lh
[08.2014 - 04.2016] GRJ79,HZJ7#..RHD EXTINGUISHER-WITH,SLATE GRAY,TRIM1# |
62102-60211-B0 |
— | ||
| replacement | |||||
|
62112A
|
62112A
62102-60212-B0
Trim Sub-Assy, Cowl Side, Lh
[08.2014 - 04.2016] GRJ79,HZJ7#..RHD EXTINGUISHER-WITH,SLATE GRAY,TRIM1# |
62102-60212-B0 |
— | ||
|
62112A
|
62112A
62102-60212-B0
Trim Sub-Assy, Cowl Side, Lh
[05.2016 - 08.2016] GRJ79,HZJ7#..RHD EXTINGUISHER-WITH,SLATE GRAY,TRIM1# |
62102-60212-B0 |
— | ||
|
62112A
|
62112A
62102-60230-B0
Trim Sub-Assy, Cowl Side, Lh
[07.2009 - 08.2016] HZJ71,79..RHD..(PIC,SOT) EXTINGUISHER-WITH&CKD PACKAGE(BANGLADESH),SLATE GRAY,TRIM1# |
62102-60230-B0 |
— | ||
|
62117A
|
62117A
62117-60030-B0
Cover, Cowl Side Trim Service Hole
[07.2009 - 08.2014] GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1#,CAUTION LABEL:12V |
62117-60030-B0 |
— | ||
|
62117A
|
62117A
62117-60031-B0
Cover, Cowl Side Trim Service Hole
[08.2014 - 04.2016] GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1#,CAUTION LABEL:12V |
62117-60031-B0 |
— | ||
| replacement | |||||
|
62117A
|
62117A
62117-60033-B0 Cover, Cowl Side Trim Service Hole[08.2014 - 04.2016] GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1#,CAUTION LABEL:12V |
62117-60033-B0 |
US $10.13 |
||
|
62117A
|
62117A
62117-60032-B0 Cover, Cowl Side Trim Service Hole[05.2016 - 08.2016] GRJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1#,CAUTION LABEL:12V |
62117-60032-B0 |
US $8.59 |
||
|
62117A
|
62117A
62117-60040-B0
Cover, Cowl Side Trim Service Hole
[07.2009 - 08.2016] HZJ71,79..RHD..(PIC,SOT) EXTINGUISHER-WITH&CKD PACKAGE(BANGLADESH),SLATE GRAY,TRIM1#,CAUTION LABEL:24V |
62117-60040-B0 |
— | ||
|
62117A
|
62117A
62117-90K00-B0 Cover, Cowl Side Trim Service Hole[01.2007 - 07.2009] FZJ7#,HZJ7#,VDJ7# SLATE GRAY,TRIM1# |
62117-90K00-B0 |
US $26.70 |
||
|
62117A
|
62117A
62117-90K00-E0
Cover, Cowl Side Trim Service Hole
[01.2007 - 07.2009] FZJ7#,HZJ7#,VDJ7# MD.OAK,TRIM4# |
62117-90K00-E0 |
— | ||
| replacement | |||||
|
62117A
|
62117A
62117-90K00-B0 Cover, Cowl Side Trim Service Hole[01.2007 - 07.2009] FZJ7#,HZJ7#,VDJ7# MD.OAK,TRIM4# |
62117-90K00-B0 |
US $26.70 |
||
|
62403
|
62403
62403-60020-B0
Trim Sub-Assy, Roll Over Panel
[07.2009 - 08.2016] HZJ71..SOT LT.GRAY,TRIM1# |
62403-60020-B0 |
— | ||
|
62403
|
62403
62403-90K00-B0 Trim Sub-Assy, Roll Over Panel[01.2007 - 07.2009] HZJ71..SOT LT.GRAY,TRIM1#,4# |
62403-90K00-B0 |
US $47.52 |
||
|
62511
|
62511
62510-60410-B0 Board, Quarter Inside Trim, Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT SLATE GRAY,TRIM1# |
62510-60410-B0 |
US $75.71 |
||
|
62511
|
62511
62510-60410-E1 Board, Quarter Inside Trim, Rh[01.2007 - 07.2009] HZJ71..SOT MD.OAK,TRIM4# |
62510-60410-E1 |
US $84.45 |
||
|
62511B
|
62511B
67771-26230-B3 Clip (For Quarter Inside Trim Board)[09.2010 - 08.2016] GRJ71,HZJ71..SOT SLATE GRAY,TRIM1# |
67771-26230-B3 |
US $1.79 |
||
|
62511B
|
62511B
90467-12031-B0 Clip (For Quarter Trim)[01.2007 - 09.2010] GRJ71,HZJ71..SOT SLATE GRAY,TRIM1# |
90467-12031-B0 |
US $2.87 |
||
|
62511B
|
62511B
90467-12031-E1 Clip (For Quarter Inside Trim Board)[01.2007 - 07.2009] HZJ71..SOT LT.OAK,TRIM4# |
90467-12031-E1 |
US $2.87 |
||
|
62512
|
62512
62520-90K36-B0 Board, Quarter Inside Trim, Lh[01.2007 - 08.2016] GRJ71,HZJ71..SOT SLATE GRAY,TRIM1# |
62520-90K36-B0 |
US $71.93 |
||
|
62512
|
62512
62520-90K36-E1 Board, Quarter Inside Trim, Lh[01.2007 - 07.2009] HZJ71..SOT MD.OAK,TRIM4# |
62520-90K36-E1 |
US $80.08 |
||
|
64707C
|
64707C
64769-90K00-B3 Knob, Jack Cover (Gray)[01.2007 - 08.2016] FZJ71,76,78,GRJ71,76,78,HZJ71,76,78,VDJ76,78 SLATE GRAY,TRIM1# |
64769-90K00-B3 |
US $2.97 |
||
|
64707C
|
64707C
64769-90K00-E0 Knob, Jack Cover[01.2007 - 07.2009] HZJ71..SOT MD.OAK,TRIM4# |
64769-90K00-E0 |
US $3.06 |
||
|
64707D
|
64707D
64707-60030-B2
Cover Sub-Assy, Quarter Trim Jack
[01.2007 - 08.2016] FZJ71,GRJ71,HZJ71 SLATE GRAY,TRIM1# |
64707-60030-B2 |
— | ||
| replacement | |||||
|
64707D
|
64707D
64707-60030-B0 Cover Sub-Assy, Quarter Trim Jack[01.2007 - 08.2016] FZJ71,GRJ71,HZJ71 SLATE GRAY,TRIM1# |
64707-60030-B0 |
US $37.84 |
||
|
64707D
|
64707D
64707-60030-E3
Cover Sub-Assy, Quarter Trim Jack
[01.2007 - 07.2009] HZJ71..SOT MD.OAK,TRIM4# |
64707-60030-E3 |
— | ||
| replacement | |||||
|
64707D
|
64707D
64707-60030-E2 Cover Sub-Assy, Quarter Trim Jack[01.2007 - 07.2009] HZJ71..SOT MD.OAK,TRIM4# |
64707-60030-E2 |
US $49.06 |
||
|
64777B
|
64777B
64777-60030 Protector, Sun Roof Headlining, Center[02.2007 - 08.2016] GRJ71,78..LHD;HZJ71,78,VDJ78 |
64777-60030 |
US $4.27 |
||
|
64777B
|
64777B
64777-90K00-B1
Protector, Quarter, Inner
[01.2007 - 02.2007] FZJ71,78,HZJ71,78,VDJ78 SHADOW GRAY,TRIM1#,4# |
64777-90K00-B1 |
— | ||
| replacement | |||||
|
64777B
|
64777B
64777-60030 Protector, Sun Roof Headlining, Center[01.2007 - 02.2007] FZJ71,78,HZJ71,78,VDJ78 SHADOW GRAY,TRIM1#,4# |
64777-60030 |
US $4.27 |
||
|
64778E
|
64778E
64778-90K00-B2
Protecter, Quarter Inner, No.1
[01.2007 - 06.2010] FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 SHADOW GRAY,TRIM1#,4# |
64778-90K00-B2 |
— | ||
| replacement | |||||
|
64778E
|
64778E
64778-90K01-B2 Protecter, Quarter Inner, No.1QUARTER INNER, NO.1 [01.2007 - 06.2010] FZJ71,76,GRJ71,76,HZJ71,76,VDJ76 SHADOW GRAY,TRIM1#,4# |
64778-90K01-B2 |
US $5.24 |
||
|
64778E
|
64778E
64778-90K01-B2 Protecter, Quarter Inner, No.1QUARTER INNER, NO.1 [06.2010 - 08.2016] GRJ71,76,HZJ71,76,VDJ76 SHADOW GRAY,TRIM1#,4# |
64778-90K01-B2 |
US $5.24 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
US $1.25 |
||
|
9046804035
|
9046804035
90468-04035
New Genuine Part
|
90468-04035 |
— | ||
|
9046804036
|
9046804036
90468-04036 New Genuine Part |
90468-04036 |
US $2.62 |
||
|
9046804046
|
9046804046
90468-04046 Clip |
90468-04046 |
US $2.75 |
||
|
9046805043
|
9046805043
90468-05043 New Genuine Part |
90468-05043 |
US $2.18 |
||
|
9167380614
|
9167380614
91673-80614 BOLT, FLANGE W/WASER |
91673-80614 |
US $1.08 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
