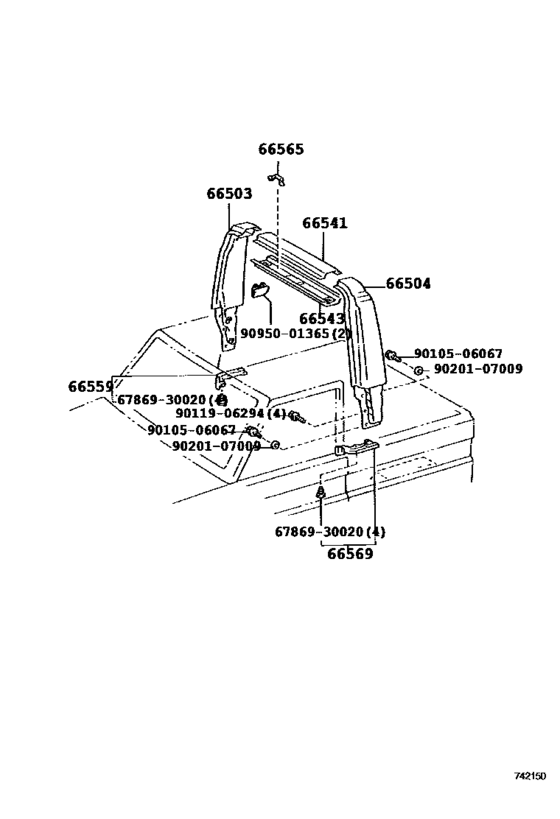

Protector Pipe, Roll Bar & Handrail ([01.2007 - ] (0701- )SOT) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2018
- Sales region
- U.S.A.
- Frame
- HZJ71
- grade
- STD
- body
- SOT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
66503
|
66503
66503-90K00 Panel Sub-Assy, Roll Over Side, RhROLL OVER SIDE, RH [01.2007 - 08.2016] GRJ71,HZJ71..SOT |
66503-90K00 |
US $320.32 |
||
|
66504
|
66504
66504-90K00 Panel Sub-Assy, Roll Over Side, LhROLL OVER SIDE, LH [01.2007 - 08.2016] GRJ71,HZJ71..SOT |
66504-90K00 |
US $318.86 |
||
|
66541
|
66541
66541-90K00 Panel, Roll Over, Outer[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
66541-90K00 |
US $92.60 |
||
|
66543
|
66543
66543-90K00 Panel, Roll Over, Inner[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
66543-90K00 |
US $65.69 |
||
|
66559
|
66559
66559-90K00 Seal, Roll Over Panel, Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
66559-90K00 |
US $10.57 |
||
|
66565
|
66565
66565-90K00 Catch, Roll Over Panel, Upper[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
66565-90K00 |
US $4.48 |
||
|
66569
|
66569
66569-90K00 Seal, Roll Over Panel, Lh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
66569-90K00 |
US $8.39 |
||
|
6786930020
|
6786930020
67869-30020 Clip, Headlamp Door Filler |
67869-30020 |
US $3.94 |
||
|
9010506067
|
9010506067
90105-06067 New Genuine Part |
90105-06067 |
US $0.70 |
||
|
9011906294
|
9011906294
90119-06294 BOLT |
90119-06294 |
from US $0.95 |
||
|
9020107009
|
9020107009
90201-07009 New Genuine Part |
90201-07009 |
US $2.77 |
||
|
9095001365
|
9095001365
90950-01365 Cover |
90950-01365 |
US $2.87 |
