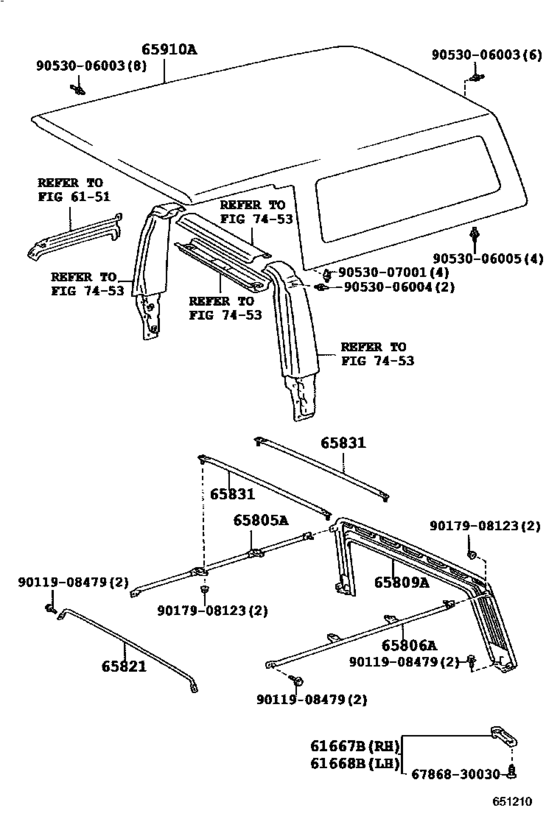

Rear Body Top Curtain & Roof Panel ([01.2007 - ] (0701- )SOT) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2018
- Sales region
- U.S.A.
- Frame
- HZJ71
- grade
- STD
- body
- SOT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61667B
|
61667B
61667-90K01 Weatherstrip, Rear Body Rear Side, Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61667-90K01 |
from US $3.66 |
||
|
61668B
|
61668B
61668-90K00 Weatherstrip, Rear Body Rear Side, Lh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61668-90K00 |
from US $3.85 |
||
|
65805A
|
65805A
65805-90K00 Bow Sub-Assy, Center Top Cover Tarpaulin, Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
65805-90K00 |
US $48.75 |
||
|
65806A
|
65806A
65806-90K00 Bow Sub-Assy, Center Top Cover Tarpaulin, Lh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
65806-90K00 |
US $48.75 |
||
|
65809A
|
65809A
65809-90K00 Bow Sub-Assy, Rear Top Cover Tarpaulin[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
65809-90K00 |
US $234.12 |
||
|
65821
|
65821
65821-90K00 Bow, Front Top Cover Tarpaulin[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
65821-90K00 |
from US $19.32 |
||
|
65831
|
65831
65831-90K00 Bow, Center Top Cover Tarpaulin[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
65831-90K00 |
US $43.68 |
||
|
65910A
|
65910A
65910-60100-A0
Tarpaulin Assy
[01.2007 - 08.2016] HZJ71..SOT IVORY,058 ,1F7 ,1G3 ,1G6 ,3Q3 ,4E9 ,4R3 ,8H6 |
65910-60100-A0 |
— | ||
| replacement | |||||
|
65910A
|
65910A
65910-60101-A0
Tarpaulin Assy
[01.2007 - 08.2016] HZJ71..SOT IVORY,058 ,1F7 ,1G3 ,1G6 ,3Q3 ,4E9 ,4R3 ,8H6 |
65910-60101-A0 |
— | ||
|
6786830030
|
6786830030
67868-30030 Clip, Roof Side Rail Weatherstrip |
67868-30030 |
from US $1.50 |
||
|
9011908479
|
9011908479
90119-08479 BOLT |
90119-08479 |
from US $2.85 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.78 |
||
|
9053006003
|
9053006003
90530-06003 FASTENER |
90530-06003 |
from US $1.31 |
||
|
9053006004
|
9053006004
90530-06004 New Genuine Part |
90530-06004 |
from US $1.31 |
||
|
9053006005
|
9053006005
90530-06005 FASTENER |
90530-06005 |
from US $2.92 |
||
|
9053007001
|
9053007001
90530-07001 New Genuine Part |
90530-07001 |
from US $2.57 |
||
