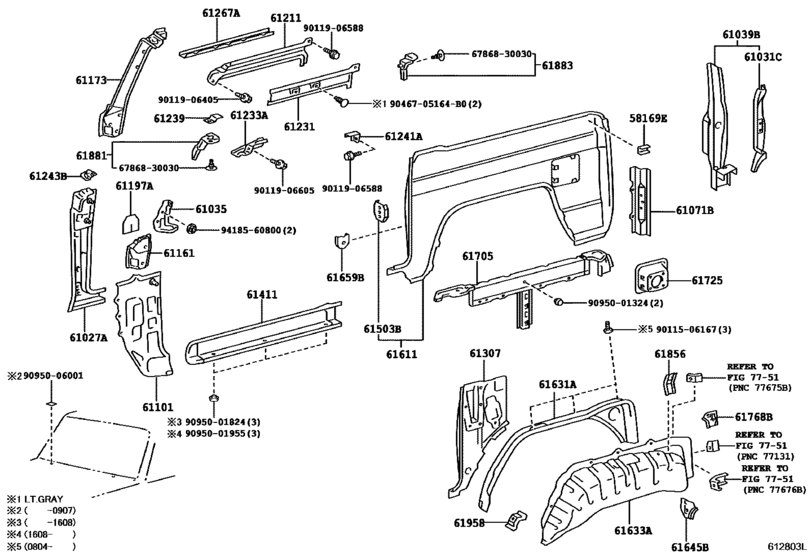

Side Member ([01.2007 - ] RH (0701- )SOT) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2018
- Sales region
- U.S.A.
- Frame
- HZJ71
- grade
- STD
- body
- SOT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58169E
|
58169E
58169-90A00 Retainer, Rear Heater Mounting[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
58169-90A00 |
US $10.31 |
||
|
61027A
|
61027A
61027-60032 Pillar Sub-Assy, Front Body, Outer Rh[01.2007 - 07.2009] HZJ71..SOT |
61027-60032 |
US $471.74 |
||
| replacement | |||||
|
61027A
|
61027A
61027-60033 Pillar Sub-Assy, Front Body, Outer Rh[01.2007 - 07.2009] HZJ71..SOT |
61027-60033 |
US $393.12 |
||
|
61027A
|
61027A
61027-60033 Pillar Sub-Assy, Front Body, Outer Rh[07.2009 - 08.2016] GRJ71,HZJ71..SOT |
61027-60033 |
US $393.12 |
||
|
61031C
|
61031C
61031-60160
Extension Sub-Assy, Quarter Panel, Rear Rh
[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61031-60160 |
— | ||
|
61035
|
61035
61165-90K01 Bracket Sub-Assy, Instrument Panel To Cowl Side, Rh[01.2007 - 07.2009] FZJ7#,HZJ7#,VDJ7# |
61165-90K01 |
US $19.80 |
||
|
61039B
|
61039B
61039-60031
Reinforce Sub-Assy, Rear Pillar, Upper Rh
[01.2007 - 04.2008] HZJ71..SOT |
61039-60031 |
— | ||
|
61039B
|
61039B
61039-60032
Reinforce Sub-Assy, Rear Pillar, Upper Rh
[04.2008 - 08.2016] GRJ71,HZJ71..SOT |
61039-60032 |
— | ||
|
61039B
|
61039B
61039-60140
Reinforce Sub-Assy, Rear Pillar, Upper Rh
[04.2008 - 08.2016] HZJ71..SOT CKD PACKAGE(BANGLADESH)&TIRE & DISC WHEEL-7.50R16-8 RGF 5.50F |
61039-60140 |
— | ||
|
61071B
|
61071B
61071-60030 Panel Sub-Assy, Roof Side, Inner Rear Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61071-60030 |
US $70.18 |
||
|
61101
|
61101
61101-60130
Panel Sub-Assy, Cowl Side, Rh
[01.2007 - 06.2008] FZJ71,78,79,HZJ7#,VDJ7#..RHD; HZJ79..RHD CKD PACKAGE(BANGLADESH)&AUDIO(FOR OVERSEAS MARKET)-AM & 1SPEAKER; HZJ79..RHD CKD PACKAGE(KENYA); FZJ71,78,79,HZJ71,78,79..RHD AIR CLEANER-CYCRON+SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 2S |
61101-60130 |
— | ||
| replacement | |||||
|
61101
|
61101
61101-60131
Panel Sub-Assy, Cowl Side, Rh
[01.2007 - 06.2008] FZJ71,78,79,HZJ7#,VDJ7#..RHD; HZJ79..RHD CKD PACKAGE(BANGLADESH)&AUDIO(FOR OVERSEAS MARKET)-AM & 1SPEAKER; HZJ79..RHD CKD PACKAGE(KENYA); FZJ71,78,79,HZJ71,78,79..RHD AIR CLEANER-CYCRON+SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 2S |
61101-60131 |
— | ||
|
61101
|
61101
61101-60131
Panel Sub-Assy, Cowl Side, Rh
[07.2008 - 07.2009] FZJ71,78,79,HZJ7#,VDJ7#..RHD; HZJ79..RHD CKD PACKAGE(BANGLADESH)&AUDIO(FOR OVERSEAS MARKET)-AM & 1SPEAKER; HZJ79..RHD CKD PACKAGE(KENYA); FZJ71,78,79,HZJ71,78,79..RHD AIR CLEANER-CYCRON+SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 2S |
61101-60131 |
— | ||
|
61101
|
61101
61101-60140
Panel Sub-Assy, Cowl Side, Rh
[01.2007 - 06.2008] HZJ76..RHD POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-W(REMOTE CONTROL)&ANTENNA-WITH(MANUA L); HZJ76..RHD POWER DOOR LOCK-WITH&ANTENNA-WITH(MANUAL); HZJ76..RHD OUTSIDE REAR VIEW MIRROR-W(REMOTE CONTROL)&ANTENNA-WITH(MANUAL); FZJ71,7 |
61101-60140 |
— | ||
| replacement | |||||
|
61101
|
61101
61101-60141
Panel Sub-Assy, Cowl Side, Rh
[01.2007 - 06.2008] HZJ76..RHD POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-W(REMOTE CONTROL)&ANTENNA-WITH(MANUA L); HZJ76..RHD POWER DOOR LOCK-WITH&ANTENNA-WITH(MANUAL); HZJ76..RHD OUTSIDE REAR VIEW MIRROR-W(REMOTE CONTROL)&ANTENNA-WITH(MANUAL); FZJ71,7 |
61101-60141 |
— | ||
|
61101
|
61101
61101-60141
Panel Sub-Assy, Cowl Side, Rh
[07.2008 - 07.2009] HZJ76..RHD POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-W(REMOTE CONTROL)&ANTENNA-WITH(MANUA L); HZJ76..RHD POWER DOOR LOCK-WITH&ANTENNA-WITH(MANUAL); HZJ76..RHD OUTSIDE REAR VIEW MIRROR-W(REMOTE CONTROL)&ANTENNA-WITH(MANUAL); FZJ71,7 |
61101-60141 |
— | ||
|
61101
|
61101
61101-60280 Panel Sub-Assy, Cowl Side, RhCOWL SIDE, RH [07.2009 - 08.2011] HZJ71,78,79..RHD AIR CLEANER-CYCRON+SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CHANGER CONT ROL & 2SPEAKER; GRJ71,78,79..RHD AIR CLEANER-ON-HEAD TYPE+SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CHANGE R CONTROL & 2SPEAKE |
61101-60280 |
US $96.10 |
||
|
61101
|
61101
61101-60290
Panel Sub-Assy, Cowl Side, Rh
[07.2009 - 08.2011] GRJ71,78,79,HZJ71,78,79..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CASETTE/CHANGER CONTROL & 2SPEAKER; GRJ79..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER; HZJ79..RHD HEATER-W(FRONT)&AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3) |
61101-60290 |
— | ||
|
61161
|
61161
61161-60170
Pillar, Front Body, Upper Inner Rh
[07.2009 - 08.2016] GRJ71,HZJ71..SOT |
61161-60170 |
— | ||
|
61161
|
61161
61161-90K01 Pillar, Front Body, Upper Inner Rh[01.2007 - 07.2009] HZJ71..SOT |
61161-90K01 |
US $36.40 |
||
|
61173
|
61173
61173-90K00 Reinforcement, Front Body Pillar, Upper Inner[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61173-90K00 |
US $4.95 |
||
|
61197A
|
61197A
61197-90K00
Cover, Front Pillar, Rh
[01.2007 - 11.2009] HZJ79..GEN;GRJ7#,HZJ71,76,78,VDJ7# |
61197-90K00 |
— | ||
|
61211
|
61211
61211-90K01 Rail, Roof Side, Outer Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61211-90K01 |
US $58.94 |
||
|
61231
|
61231
61231-90K02 Rail, Roof Side, Inner Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61231-90K02 |
US $32.91 |
||
|
61233A
|
61233A
61233-90K00 Rail, Roof Side, Inner No.2 Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61233-90K00 |
US $23 |
||
|
61239
|
61239
61239-90K00 Retainer, Roof Side Rail Outer, Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61239-90K00 |
US $5.07 |
||
|
61241A
|
61241A
61241-90K00 Gusset, Roof Side Rail, Rear Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61241-90K00 |
US $36.11 |
||
|
61243B
|
61243B
61243-90K00 Plate, Front Body Pillar End, Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61243-90K00 |
US $8.74 |
||
|
61267A
|
61267A
61267-90K01 Channel, Roof Drip, Rear Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61267-90K01 |
US $27.87 |
||
|
61307
|
61307
61307-60110 Pillar Sub-Assy, Center Body, Inner RhCENTER BODY, INNER RH [01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61307-60110 |
US $240.24 |
||
|
61411
|
61411
61401-90K00 Panel, Rocker, Outer Rh[01.2007 - 08.2016] FZJ71,GRJ71,HZJ71 |
61401-90K00 |
from US $82.06 |
||
|
61503B
|
61503B
61503-60040 Reinforcement Sub-Assy, Quarter Lock Pillar, Rh[01.2007 - 08.2016] GRJ71,78..LHD;HZJ71,78,VDJ78 |
61503-60040 |
US $14.56 |
||
|
61611
|
61611
60161-60730 Panel, Quarter, Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
60161-60730 |
US $432.43 |
||
|
61611
|
61611
60161-60740 Panel, Quarter, Rh[01.2007 - 08.2016] HZJ71..SOT TIRE & DISK WHEEL-265/70R16 7JJ ALUMINUM W(TUBE) |
60161-60740 |
US $432.43 |
||
|
61631A
|
61631A
61631-60090
Panel, Quarter Wheel House, Outer Rh
[04.2008 - 06.2009] FZJ71,HZJ71,VDJ78; HZJ78 FUEL TANK-W(SUB TANK); HZJ78..GEN FUEL TANK-W(SUB TANK)&REAR WINDOW WIPER-WITH(INTERMITTENT); HZJ78..GEN FUEL TANK-W(SUB TANK)&REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE RE AR SEAT&REAR SEAT BELT |
61631-60090 |
— | ||
| replacement | |||||
|
61631A
|
61631A
61631-60091
Panel, Quarter Wheel House, Outer Rh
[04.2008 - 06.2009] FZJ71,HZJ71,VDJ78; HZJ78 FUEL TANK-W(SUB TANK); HZJ78..GEN FUEL TANK-W(SUB TANK)&REAR WINDOW WIPER-WITH(INTERMITTENT); HZJ78..GEN FUEL TANK-W(SUB TANK)&REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE RE AR SEAT&REAR SEAT BELT |
61631-60091 |
— | ||
|
61631A
|
61631A
61631-60091
Panel, Quarter Wheel House, Outer Rh
[07.2009 - 08.2016] GRJ71..LHD;HZJ71,VDJ78; HZJ78 FUEL TANK-W(SUB TANK); HZJ78..GEN FUEL TANK-W(SUB TANK)&REAR WINDOW WIPER-WITH(INTERMITTENT); HZJ78..GEN FUEL TANK-W(SUB TANK)&REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT-TRANSVERSE RE AR SEAT&REAR SEAT |
61631-60091 |
— | ||
|
61631A
|
61631A
61631-60110
Panel, Quarter Wheel House, Outer Rh
[04.2008 - 06.2009] HZJ71..SOT CKD PACKAGE(BANGLADESH)&AUDIO(FOR OVERSEAS MARKET)-AM & 1SPEAKER |
61631-60110 |
— | ||
| replacement | |||||
|
61631A
|
61631A
61631-60111 Panel, Quarter Wheel House, Outer Rh[04.2008 - 06.2009] HZJ71..SOT CKD PACKAGE(BANGLADESH)&AUDIO(FOR OVERSEAS MARKET)-AM & 1SPEAKER |
61631-60111 |
from US $190.72 |
||
|
61631A
|
61631A
61631-60111 Panel, Quarter Wheel House, Outer Rh[07.2009 - 08.2016] HZJ71..SOT CKD PACKAGE(BANGLADESH)&AUDIO(FOR OVERSEAS MARKET)-AM & 1SPEAKER |
61631-60111 |
from US $190.72 |
||
|
61631A
|
61631A
61631-90K01
Panel, Quarter Wheel House, Outer Rh
[01.2007 - 03.2008] FZJ71,HZJ71,VDJ78 |
61631-90K01 |
— | ||
| replacement | |||||
|
61631A
|
61631A
61631-60111 Panel, Quarter Wheel House, Outer Rh[01.2007 - 03.2008] FZJ71,HZJ71,VDJ78 |
61631-60111 |
from US $190.72 |
||
|
61633A
|
61633A
61633-60021 Panel, Quarter Wheel House, Inner Rh[01.2007 - 08.2016] HZJ71,78,VDJ78;GRJ71,78..LHD..STD |
61633-60021 |
US $156.72 |
||
|
61645B
|
61645B
61645-90K00 Gusset, Quarter Wheel House, Rear Rh[01.2007 - 08.2016] GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 |
61645-90K00 |
US $14.15 |
||
|
61659B
|
61659B
61659-60010 Retainer, Rear Door Open Switch Set, Rh[01.2007 - 08.2016] HZJ71,78,VDJ78;GRJ71,76,78..LHD |
61659-60010 |
US $2.27 |
||
|
61705
|
61705
61705-60221
Panel Sub-Assy, Roof Side, Inner Rh
[01.2007 - 11.2010] GRJ71,HZJ71..SOT |
61705-60221 |
— | ||
|
61705
|
61705
61705-60222
Panel Sub-Assy, Roof Side, Inner Rh
[11.2010 - 08.2016] GRJ71,HZJ71..SOT |
61705-60222 |
— | ||
|
61725
|
61725
61709-60030
Box, Fuel Inlet
[04.2008 - 08.2016] VDJ78 NO.2; HZJ71;GRJ71..LHD..STD; HZJ78 FUEL TANK-W(SUB TANK),NO.2; HZJ78..GEN FUEL TANK-W(SUB TANK)&REAR WINDOW DEFOGGER-WITH,NO.2; HZJ78..GEN FUEL TANK-W(SUB TANK)&REAR WINDOW DEFOGGER-WITH&ROOF RACK-WITH,NO.2; HZJ78..GEN FUEL TANK- |
61709-60030 |
— | ||
|
61725
|
61725
61709-90K00 Box, Fuel Inlet[01.2007 - 04.2008] VDJ78 NO.2; FZJ71,HZJ71..STD; HZJ78 FUEL TANK-W(SUB TANK),NO.2; HZJ78..GEN FUEL TANK-W(SUB TANK)&REAR WINDOW DEFOGGER-WITH,NO.2; HZJ78..GEN FUEL TANK-W(SUB TANK)&REAR WINDOW DEFOGGER-WITH&ROOF RACK-WITH,NO.2; HZJ78..GEN FUEL TANK-W(SUB |
61709-90K00 |
US $33.11 |
||
|
61768B
|
61768B
61768-60081 Reinforce, Belt Anchor To Roof Side, Inner Rear Rh[04.2008 - 08.2016] HZJ71;GRJ71..LHD |
61768-60081 |
US $14.33 |
||
|
61856
|
61856
61856-90K00 Bracket, Rear Washer Tank, Lower[01.2007 - 08.2016] VDJ78; HZJ71..SOT CKD PACKAGE(BANGLADESH)&AUDIO(FOR OVERSEAS MARKET)-AM & 1SPEAKER; HZJ78..GEN FUEL TANK-W(SUB TANK)&REAR WINDOW WIPER-WITH(INTERMITTENT); HZJ78..GEN FUEL TANK-W(SUB TANK)&REAR WINDOW WIPER-WITH(INTERMITTENT)&REAR SEAT- |
61856-90K00 |
US $5.77 |
||
|
61881
|
61881
61881-90K00 Seal, Roof Side Rail, Front Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61881-90K00 |
US $6.29 |
||
|
61883
|
61883
61883-90K00 Seal, Roof Side Rail, Rear Rh[01.2007 - 08.2016] GRJ71,HZJ71..SOT |
61883-90K00 |
from US $6.81 |
||
|
61958
|
61958
61958-90K00 Bracket, Rear Seat Leg, No.1 RhREAR SEAT LEG, NO.1 RH [01.2007 - 08.2016] HZJ71;GRJ71..LHD..STD |
61958-90K00 |
US $12.81 |
||
|
6786830030
|
6786830030
67868-30030 Clip, Roof Side Rail Weatherstrip |
67868-30030 |
from US $1.52 |
||
|
9011506167
|
9011506167
90115-06167 Bolt, Weld(For Front Floor Panel, Center) |
90115-06167 |
US $1.25 |
||
|
9011906405
|
9011906405
90119-06405 New Genuine Part |
90119-06405 |
US $1.25 |
||
|
9011906588
|
9011906588
90119-06588 BOLT WWASHER |
90119-06588 |
from US $1.10 |
||
|
9011906605
|
9011906605
90119-06605 New Genuine Part |
90119-06605 |
US $1.10 |
||
|
9046705164B0
|
9046705164B0
90467-05164-B0 Clip(For Front Floor Carpet) |
90467-05164-B0 |
from US $0.67 |
||
|
9095001324
|
9095001324
90950-01324 Plug, Hole(For Front Door Trim Board) |
90950-01324 |
US $1.22 |
||
|
9095001824
|
9095001824
90950-01824 PLUG HOLE |
90950-01824 |
from US $1.92 |
||
|
9095001955
|
9095001955
90950-01955 Plug, Hole, No.1(For Dash Panel) |
90950-01955 |
from US $1.79 |
||
|
9095006001
|
9095006001
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $3.05 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
