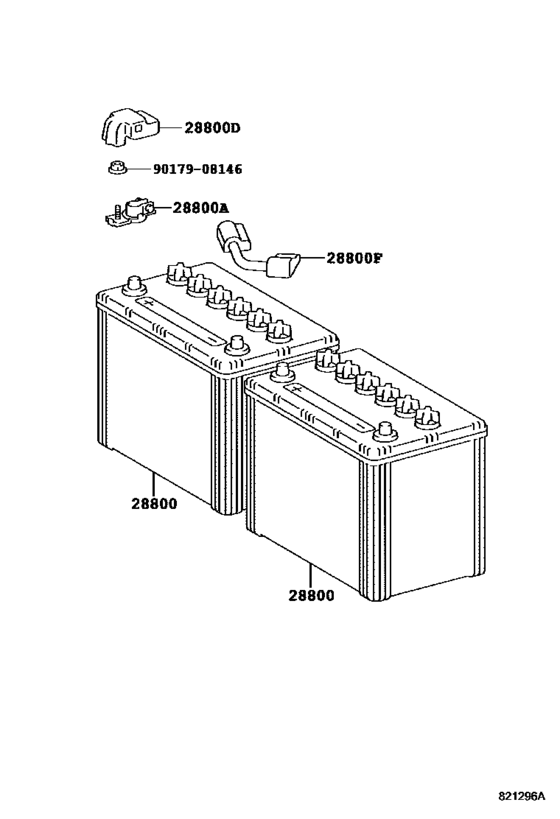

Battery & Battery Cable ([09.2006 - 11.2006] FOR PAKISTAN GOVERNMENT (9706-9711)HZJ70..SOT ; (9809-9811)HZJ70..SOT ; (0609-0611)HZJ71..SOT) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2007
- Sales region
- General
- Frame
- HZJ71
- grade
- STD
- body
- SOT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-17111
Battery
[08.1999 - 01.2007] 1HZ..HZJ71,78,79..GEN;1FZFE..FZJ71,78,79..RHD..GEN 80D26R,FURUKAWA |
28800-17111 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-38100
Battery
[08.1999 - 01.2007] 1HZ..HZJ71,78,79..GEN;1FZFE..FZJ71,78,79..RHD..GEN 80D26R,FURUKAWA |
28800-38100 |
— | ||
|
28800
|
28800
28800-54232
Battery
[08.1999 - 03.2001] 1HZ..HZJ71,78,79;1FZFE..FZJ71,78,79..RHD 80D26R |
28800-54232 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-67131
Battery
[08.1999 - 03.2001] 1HZ..HZJ71,78,79;1FZFE..FZJ71,78,79..RHD 80D26R |
28800-67131 |
— | ||
|
28800
|
28800
28800-54472
Battery
[03.2001 - 06.2002] 1HZ..HZJ79;1HZ..HZJ71,78..ARL,GEN;1FZFE..FZJ71,78,79..RHD 80D26R,MATSUSHITA |
28800-54472 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-67131
Battery
[03.2001 - 06.2002] 1HZ..HZJ79;1HZ..HZJ71,78..ARL,GEN;1FZFE..FZJ71,78,79..RHD 80D26R,MATSUSHITA |
28800-67131 |
— | ||
|
28800A
|
28800A
82675-60020 Terminal, Battery Positive[08.1999 - 01.2007] 1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV;1FZFE..FZJ71,78,79..RHD ..GEN |
82675-60020 |
from US $7.62 |
||
|
28800A
|
28800A
90982-05030 Terminal, Battery Positive[09.2006 - 11.2006] 1HZ..HZJ71..SOT FOR PAKISTAN GOVERNMENT |
90982-05030 |
from US $12.81 |
||
|
28800D
|
28800D
82821-12150 Cover, Connector(For Battery Terminal)[08.1999 - 01.2007] 1HZ..HZJ71,79..RHD..(PIC,SOT)..GEN BATTERY TO BATTERY |
82821-12150 |
from US $6.35 |
||
|
28800D
|
28800D
82821-24010 Cover, Connector(For Battery Terminal)[08.1999 - 01.2007] 1HZ..HZJ71,79..RHD..(PIC,SOT)..GEN BATTERY TO STARTER; 1HZ..HZJ78..STD;1FZFE..FZJ78..GCC;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV;1FZFE..F ZJ71,78..RHD..GEN;1FZFE,1HDFTE..FZJ71,HDJ79..ARL,GCC;1FZFE,1H#..FZJ74,79,HDJ78,HZJ 71..CBU |
82821-24010 |
from US $5.56 |
||
|
28800F
|
28800F
82124-36011 Cable, Battery To Battery[08.1999 - 01.2007] 1HZ..HZJ71,79..RHD..(PIC,SOT)..GEN |
82124-36011 |
US $84 |
||
|
28800F
|
28800F
90982-03013 Cable, Battery To BatteryBATTERY TO BATTERY [09.2006 - 11.2006] 1HZ..HZJ71..SOT FOR PAKISTAN GOVERNMENT |
90982-03013 |
US $42.52 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
