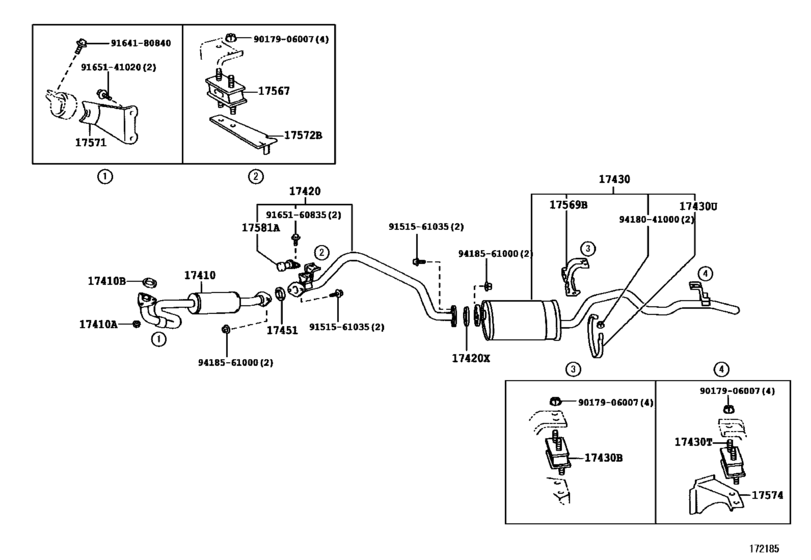

Exhaust Pipe ([08.1999 - ] (9908- )1HZ..HZJ71) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2007
- Sales region
- U.S.A.
- Frame
- HZJ71
- grade
- STD
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-17060 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [01.1990 - 07.2002] 1HZ..HZJ75..LHD..CBU;1HZ..HZJ75..RHD..(GEN,SA);1HZ..HZJ71,78,79..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
17401-17060 |
from US $130.17 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1999 - 01.2007] 1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
90179-10070 |
from US $1.31 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1999 - 01.2007] 1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06059 Gasket, Exhaust Pipe[08.1999 - 01.2007] 1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
90917-06059 |
from US $4.64 |
||
|
17420
|
17420
17403-17050 Pipe Assy, Exhaust, Center[08.1999 - 01.2007] 1HZ..HZJ71 |
17403-17050 |
US $145.96 |
||
|
17420X
|
17420X
90917-06076 Gasket, Exhaust Pipe, Center[08.1999 - 01.2007] 1FZFE..FZJ71..GCC;1FZFE..FZJ71..RHD;1FZFE,1HZ..FZJ74,HZJ71 |
90917-06076 |
from US $6.27 |
||
|
17430
|
17430
17405-17031 Pipe Assy, Exhaust, Tail[08.1999 - 01.2007] 1HZ..HZJ71 |
17405-17031 |
US $282.08 |
||
|
17430B
|
17430B
17567-17020 Cushion, Exhaust Pipe Center, Rear[08.1999 - 01.2007] 1FZFE..FZJ71..GCC;1FZFE..FZJ71..RHD;1FZFE,1HZ..FZJ74,HZJ71 |
17567-17020 |
from US $8.72 |
||
|
17430T
|
17430T
17567-17020 Cushion, Exhaust Pipe Center, Rear[08.1999 - 01.2007] 1HZ..HZJ78..STD;1FZFE..FZJ78..GCC;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV;1FZFE..F ZJ71,78..RHD..GEN;1FZFE,1HDFTE..FZJ71,HDJ79..ARL,GCC;1FZFE,1H#..FZJ74,79,HDJ78,HZJ 71..CBU |
17567-17020 |
from US $8.72 |
||
|
17430U
|
17430U
17504-17010 Clamp No.1, Exhaust Tail Pipe (For Rear)[08.1999 - 01.2007] 1FZFE..FZJ71..GCC;1FZFE..FZJ71..RHD;1FZFE,1HZ..FZJ74,HZJ71 |
17504-17010 |
US $26.38 |
||
|
17451
|
17451
90917-06076 Gasket, Exhaust Pipe, Center[08.1999 - 01.2007] 1HZ..HZJ78..STD;1FZFE..FZJ78..GCC;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV;1FZFE..F ZJ71,78..RHD..GEN;1FZFE,1HDFTE..FZJ71,HDJ79..ARL,GCC;1FZFE,1H#..FZJ74,79,HDJ78,HZJ 71..CBU |
90917-06076 |
from US $6.27 |
||
|
17567
|
17567
17567-17020 Cushion, Exhaust Pipe Center, Rear[08.1999 - 01.2007] 1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
17567-17020 |
from US $8.72 |
||
|
17569B
|
17569B
17569-17010 Stay, Exhaust Pipe Support, No.2[08.1999 - 01.2007] 1FZFE..FZJ71..GCC;1FZFE..FZJ71..RHD;1FZFE,1HZ..FZJ74,HZJ71 |
17569-17010 |
US $37.80 |
||
|
17571
|
17571
17571-17030 Bracket, Exhaust Pipe Support, No.1[08.1999 - 01.2007] 1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
17571-17030 |
from US $13.41 |
||
|
17572B
|
17572B
17572-60070 Bracket, Exhaust Pipe Support, No.2[08.1992 - 07.2002] 1HZ..HZJ75..RHD;1HZ..HZJ78..ARL,GEN;1HZ..HZJ75..LHD..CBU;1FZFE..FZJ71,74,78,79;1FZ FE,1HZ..FZJ70,75,HZJ70..ARL;1FZF,1H#,2LT,3L,1PZ..FZJ70,73,75,HDJ7#,HZJ71,79,LJ7#,P ZJ7# |
17572-60070 |
US $18.31 |
||
|
17574
|
17574
17574-60030
Bracket, Exhaust Pipe Support, No.4
[08.1999 - 08.2008] 1FZFE,1HZ..FZJ71,74,HZJ71 |
17574-60030 |
— | ||
|
17581A
|
17581A
17581-17010 Damper, Exhaust Pipe[08.1999 - 01.2007] 1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV NO.1 |
17581-17010 |
from US $23.76 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9151561035
|
9151561035
91515-61035 BOLT |
91515-61035 |
from US $0.93 |
||
|
9164180840
|
9164180840
91641-80840 BOLTWWASHER |
91641-80840 |
from US $0.89 |
||
|
9165141020
|
9165141020
91651-41020 BOLTWWASHER |
91651-41020 |
from US $1.52 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.48 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.27 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.93 |
||
