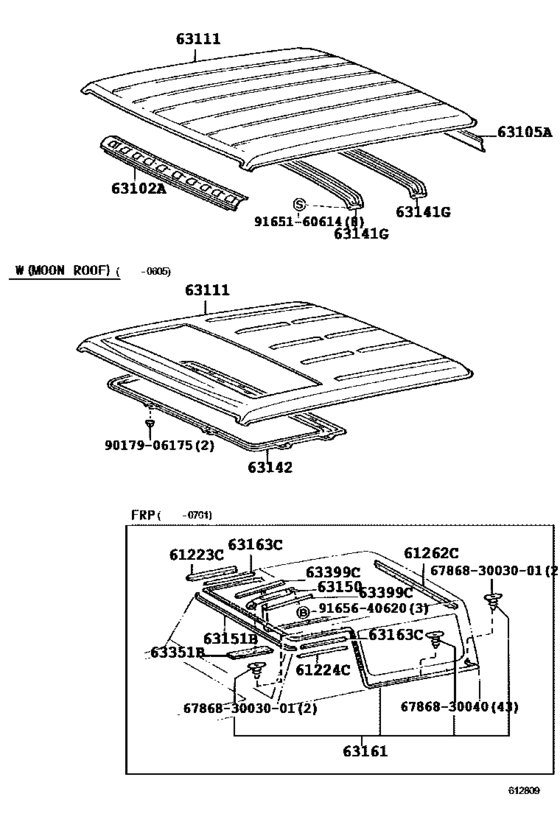

Roof Panel & Back Panel ([08.1999 - ] (9908- )FZJ71,74,HZJ71) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2007
- Sales region
- U.S.A.
- Frame
- HZJ71
- grade
- STD
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
63102-90K02
Panel Sub-Assy, Windshield Header
[01.1990 - 09.2000] FZJ79,HZJ79;FZJ70,75..HT..CBR;FZJ70,75,HZJ70..ARL..CBU;FJ70,75,FZJ71,78,HZJ71,75,7 8,LJ7#,PZJ70,75,RJ7#..HT |
63102-90K02 |
— | ||
| replacement | |||||
|
63102A
|
63102A
63102-60160 Panel Sub-Assy, Windshield Header[01.1990 - 09.2000] FZJ79,HZJ79;FZJ70,75..HT..CBR;FZJ70,75,HZJ70..ARL..CBU;FJ70,75,FZJ71,78,HZJ71,75,7 8,LJ7#,PZJ70,75,RJ7#..HT |
63102-60160 |
from US $56.26 |
||
|
63105A
|
63105A
63105-60200
Frame Sub-Assy, Back Door Opening
[08.1999 - 01.2007] HZJ71..HT;FZJ71..GCC;FZJ71..RHD |
63105-60200 |
— | ||
|
63111
|
63111
63111-60140
Panel, Roof
[08.1999 - 01.2007] FZJ71,HZJ71..HT..GEN W(*HSL) |
63111-60140 |
— | ||
|
63111
|
63111
63111-90K00
Panel, Roof
[08.1999 - 01.2007] HZJ71..HT;FZJ71..RHD |
63111-90K00 |
— | ||
|
63141G
|
63141G
63141-90K00
Reinforcement, Roof Panel, No.1
[08.1999 - 01.2007] HZJ71..HT;FZJ71..GCC;FZJ71..RHD |
63141-90K00 |
— | ||
| replacement | |||||
|
63141G
|
63141G
63141-60120 Reinforcement, Roof Panel, No.1ROOF PANEL, NO.1 [08.1999 - 01.2007] HZJ71..HT;FZJ71..GCC;FZJ71..RHD |
63141-60120 |
US $60.63 |
||
|
6786830040
|
6786830040
67868-30040 Retainer, Roof Side Rail, Rh |
67868-30040 |
from US $1.05 |
||
|
9017906175
|
9017906175
90179-06175 New Genuine Part |
90179-06175 |
US $3.05 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.16 |
||
|
678683003001
|
678683003001
67868-30030-01
Clip(For Back Door Weatherstrip)
|
67868-30030-01 |
— | ||
| replacement | |||||
|
678683003001
|
678683003001
67868-30030 Clip, Roof Side Rail Weatherstrip |
67868-30030 |
from US $1.50 |
||
