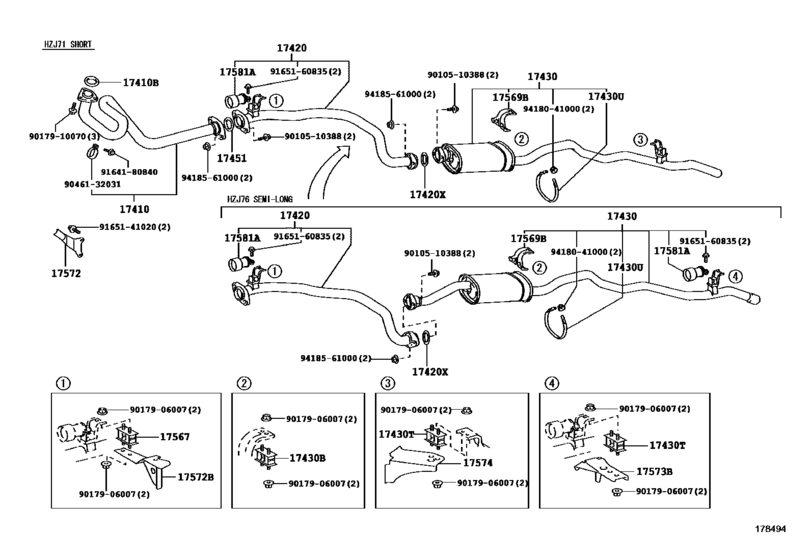

Exhaust Pipe ([01.2007 - ] (0701- )1HZ..HZJ71,76) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2018
- Sales region
- U.S.A.
- Frame
- HZJ71
- grade
- STD
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-17240 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [01.2007 - 08.2016] 1HZ..HZJ7# |
17401-17240 |
from US $178.30 |
||
|
17410B
|
17410B
90917-06059 Gasket, Exhaust Pipe[01.2007 - 08.2016] 1HZ..HZJ7# |
90917-06059 |
from US $4.64 |
||
|
17420
|
17420
17403-17050 Pipe Assy, Exhaust, Center[01.2007 - 08.2016] 1HZ..HZJ71 |
17403-17050 |
US $145.96 |
||
|
17420X
|
17420X
90917-06076 Gasket, Exhaust Pipe, Center[01.2007 - 08.2016] 1HZ..HZJ71,76,79..DCB,HT,SOT |
90917-06076 |
from US $6.27 |
||
|
17430
|
17430
17405-17031 Pipe Assy, Exhaust, Tail[01.2007 - 08.2016] 1HZ..HZJ71 |
17405-17031 |
US $282.08 |
||
|
17430B
|
17430B
17567-17020 Cushion, Exhaust Pipe Center, Rear[01.2007 - 08.2016] 1HZ,1VDFTV..HZJ7#,VDJ7# |
17567-17020 |
from US $8.72 |
||
|
17430T
|
17430T
17567-17020 Cushion, Exhaust Pipe Center, Rear[01.2007 - 08.2016] 1HZ,1VDFTV..HZJ7#,VDJ78,79 |
17567-17020 |
from US $8.72 |
||
|
17430U
|
17430U
17504-17010 Clamp No.1, Exhaust Tail Pipe (For Rear)[01.2007 - 08.2016] 1HZ,1VDFTV..HZJ71,76,VDJ76 |
17504-17010 |
US $26.38 |
||
|
17451
|
17451
90917-06076 Gasket, Exhaust Pipe, Center[01.2007 - 08.2016] 1VDFTV..VDJ79;1GRFE..GRJ71,76..LHD;1HZ,1VDFTV..HZJ7#,VDJ76,78..HT,PIC,SOT |
90917-06076 |
from US $6.27 |
||
|
17567
|
17567
17567-17020 Cushion, Exhaust Pipe Center, Rear[01.2007 - 08.2016] 1HZ,1VDFTV..HZJ7#,VDJ7# |
17567-17020 |
from US $8.72 |
||
|
17569B
|
17569B
17569-17010 Stay, Exhaust Pipe Support, No.2[01.2007 - 08.2016] 1GRFE..GRJ71,76..LHD;1HZ,1VDFTV..HZJ71,76,VDJ76 |
17569-17010 |
US $37.80 |
||
|
17572
|
17572
17571-17030 Bracket, Exhaust Pipe Support, No.1[01.2007 - 08.2016] 1HZ..HZJ7# |
17571-17030 |
from US $13.41 |
||
|
17572B
|
17572B
51399-60020
Bracket, Exhaust Pipe Support, No.2
[01.2007 - 08.2016] 1HZ..HZJ7#..HT,PIC,SOT |
51399-60020 |
— | ||
|
17574
|
17574
17574-60030
Bracket, Exhaust Pipe Support, No.4
[01.2007 - 08.2016] 1HZ..HZJ71;1GRFE..GRJ71..LHD |
17574-60030 |
— | ||
|
17581A
|
17581A
17581-17010 Damper, Exhaust Pipe[01.2007 - 08.2016] 1HZ..HZJ7# CENTER PIPE |
17581-17010 |
from US $23.76 |
||
|
9010510388
|
9010510388
90105-10388 BOLT |
90105-10388 |
from US $0.89 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.31 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9046132031
|
9046132031
90461-32031 CLAMP |
90461-32031 |
US $8.04 |
||
|
9164180840
|
9164180840
91641-80840 BOLTWWASHER |
91641-80840 |
from US $0.89 |
||
|
9165141020
|
9165141020
91651-41020 BOLTWWASHER |
91651-41020 |
from US $1.52 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.48 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.27 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.93 |
||
