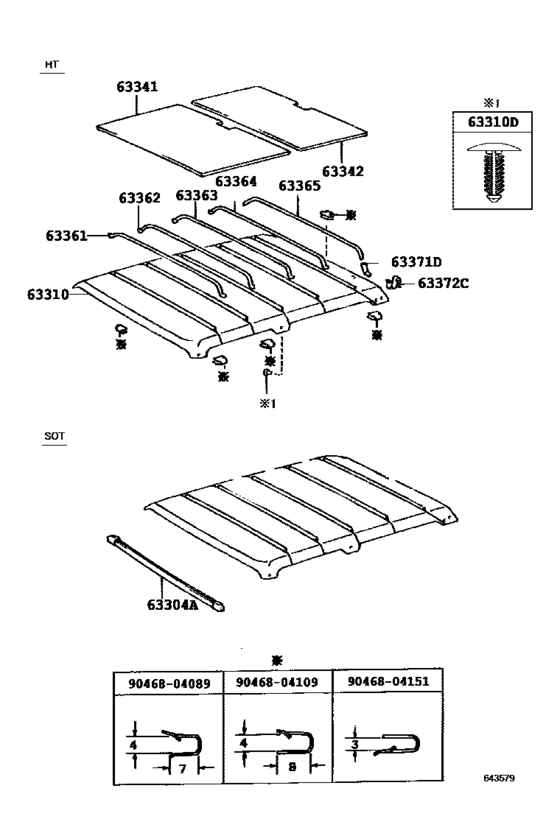

Roof Headlining & Silencer Pad ([01.2007 - 07.2009] (0701-0907)FZJ71,HZJ71..HT ; (0701- )SOT) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2018
- Sales region
- U.S.A.
- Frame
- HZJ71
- grade
- STD
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63310
|
63310
63310-60Q10-B1
Headlining Assy, Roof
[07.2009 - 08.2016] GRJ71,HZJ71..HT LT.GRAY,TRIM1#,4# |
63310-60Q10-B1 |
— | ||
|
63310
|
63310
63310-90K00-B0 Headlining Assy, RoofGray [01.2007 - 07.2009] FZJ71,HZJ71..HT LT.GRAY,TRIM1#,4# |
63310-90K00-B0 |
US $242.86 |
||
|
63310D
|
63310D
90467-05161-B4 Clip(For Rear Seat Side Garnish)[01.2007 - 07.2009] FZJ76,HZJ76,VDJ76 LT.GRAY,TRIM1#,4#; FZJ71,HZJ71..HT LT.GRAY,TRIM1#,4#,TYPE B:REFER ILLUST. |
90467-05161-B4 |
US $1.97 |
||
|
63341
|
63341
63341-60090
Pad, Roof Silencer, No.1
[01.2007 - 07.2009] FZJ71,76,HZJ71,76,VDJ76..HT |
63341-60090 |
— | ||
|
63341
|
63341
63341-60160 Pad, Roof Silencer, No.1[07.2009 - 08.2016] GRJ71..LHD..HT;GRJ76,HZJ71,76,VDJ76..HT |
63341-60160 |
US $22.54 |
||
|
63342
|
63342
63341-60090
Pad, Roof Silencer, No.1
[01.2007 - 07.2009] FZJ71,76,HZJ71,76,VDJ76..HT |
63341-60090 |
— | ||
|
63342
|
63342
63341-60170 Pad, Roof Silencer, No.3ROOF SILENCER, NO.2 [07.2009 - 08.2016] HZJ71..HT;GRJ71..LHD..HT |
63341-60170 |
US $13.80 |
||
|
63361
|
63361
63363-90K00
Support, Roof Headlining, No.1
[01.2007 - 07.2009] FZJ71,76,HZJ71,76,VDJ76..HT L=1301 |
63363-90K00 |
— | ||
|
63361
|
63361
63363-90K01 Support, Roof Headlining, No.1[01.2007 - 07.2009] FZJ71,76,HZJ71,76,VDJ76..HT L=1298 |
63363-90K01 |
US $14.56 |
||
|
63361
|
63361
63363-90K02 Support, Roof Headlining, No.1[01.2007 - 07.2009] FZJ71,76,HZJ71,76,VDJ76..HT L=1295 |
63363-90K02 |
US $14.56 |
||
|
63362
|
63362
63361-90K00
Support, Roof Headlining, No.2
[01.2007 - 07.2009] FZJ71,HZJ71..HT L=1288 |
63361-90K00 |
— | ||
|
63362
|
63362
63361-90K01
Support, Roof Headlining, No.2
[01.2007 - 07.2009] FZJ71,HZJ71..HT L=1291 |
63361-90K01 |
— | ||
|
63362
|
63362
63361-90K02 Support, Roof Headlining, No.2[01.2007 - 07.2009] FZJ71,HZJ71..HT L=1294 |
63361-90K02 |
US $14.56 |
||
|
63363
|
63363
63361-90K00
Support, Roof Headlining, No.2
[01.2007 - 07.2009] FZJ71,HZJ71..HT L=1288 |
63361-90K00 |
— | ||
|
63363
|
63363
63361-90K01
Support, Roof Headlining, No.2
[01.2007 - 07.2009] FZJ71,HZJ71..HT L=1291 |
63361-90K01 |
— | ||
|
63363
|
63363
63361-90K02 Support, Roof Headlining, No.2[01.2007 - 07.2009] FZJ71,HZJ71..HT L=1294 |
63361-90K02 |
US $14.56 |
||
|
63364
|
63364
63361-90K00
Support, Roof Headlining, No.2
[01.2007 - 07.2009] FZJ71,HZJ71..HT L=1288 |
63361-90K00 |
— | ||
|
63364
|
63364
63361-90K01
Support, Roof Headlining, No.2
[01.2007 - 07.2009] FZJ71,HZJ71..HT L=1291 |
63361-90K01 |
— | ||
|
63364
|
63364
63361-90K02 Support, Roof Headlining, No.2[01.2007 - 07.2009] FZJ71,HZJ71..HT L=1294 |
63361-90K02 |
US $14.56 |
||
|
63365
|
63365
63362-90K00
Support, Roof Headlining, No.5
[01.2007 - 07.2009] FZJ71,HZJ71..HT L=1233 |
63362-90K00 |
— | ||
|
63365
|
63365
63362-90K01 Support, Roof Headlining, No.5[01.2007 - 07.2009] FZJ71,HZJ71..HT L=1236 |
63362-90K01 |
US $14.56 |
||
|
63365
|
63365
63362-90K02 Support, Roof Headlining, No.5[01.2007 - 07.2009] FZJ71,HZJ71..HT L=1239 |
63362-90K02 |
US $14.56 |
||
|
63371D
|
63371D
63371-90A02 Retainer, Roof Headlining Support[01.2007 - 07.2009] FZJ71,76,HZJ71,76,VDJ76..HT |
63371-90A02 |
US $8.91 |
||
|
63372C
|
63372C
63372-90K00
Hook, Roof Headlining Support
[01.2007 - 07.2009] FZJ71,76,HZJ71,76,VDJ76..HT |
63372-90K00 |
— | ||
|
9046804089
|
9046804089
90468-04089 Clip, Roof Headlining |
90468-04089 |
US $2.87 |
||
|
9046804109
|
9046804109
90468-04109 Clip, Roof Headlining |
90468-04109 |
US $0.87 |
||
|
9046804151
|
9046804151
90468-04151 New Genuine Part |
90468-04151 |
US $1.75 |
