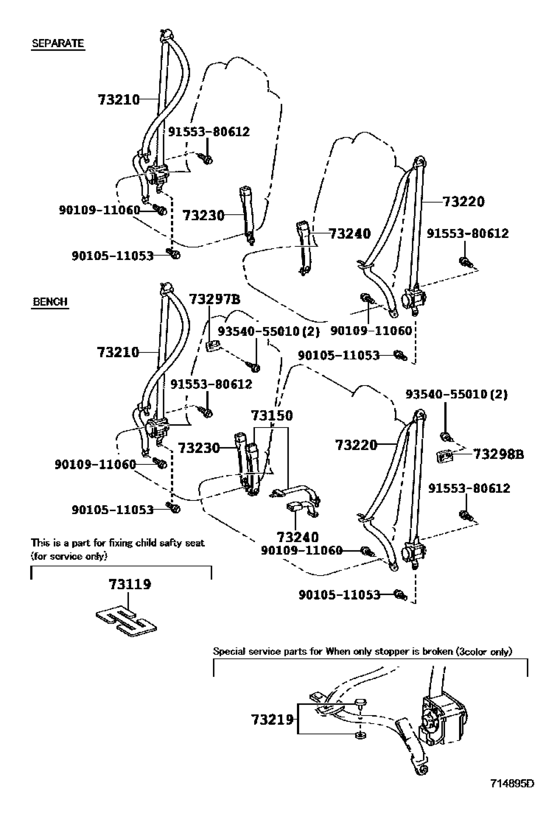

Seat Belt ([01.2007 - ] FRONT SEAT BELT (0701- )FZJ71,78,GRJ71,78,HZJ71,78,VDJ78) Diagram Toyota LAND CRUISER
- Year
- 2007 - 2018
- Sales region
- U.S.A.
- Frame
- HZJ71
- grade
- STD
- body
- HT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73119
|
73119
73119-22010 Plate, Seat Belt Webbing Clip[08.2016 -] HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
73119-22010 |
from US $17.67 |
||
|
73150
|
73150
73150-60072-B1 Belt Assy, Front Seat Lap Type, CenterFRONT SEAT LAP TYPE, CENTER [01.2007 - 07.2009] HZJ76;FZJ71,76,HZJ71..STD BLUISH GRAY,TRIM1#; FZJ71,76..LX FRONT SEAT-BENCH SEAT,BLUISH GRAY,TRIM1# |
73150-60072-B1 |
US $119.39 |
||
|
73150
|
73150
73150-60072-B2
Belt Assy, Front Seat Lap Type, Center
[07.2009 - 08.2012] HZJ76;GRJ71,76,HZJ71..STD GRAY,TRIM1#; GRJ76..GCC FRONT SEAT-BENCH SEAT,GRAY,TRIM1# |
73150-60072-B2 |
— | ||
|
73150
|
73150
73150-60072-E2 Belt Assy, Front Seat Lap Type, CenterFRONT SEAT LAP TYPE, CENTER [01.2007 - 08.2012] HZJ76;FZJ71,76,GRJ71,76,HZJ71..STD OAK,TRIM4#; FZJ71,76,GRJ76..LX FRONT SEAT-BENCH SEAT,OAK,TRIM4# |
73150-60072-E2 |
US $119.39 |
||
|
73150
|
73150
73150-60074-C0
Belt Assy, Front Seat Lap Type, Center
[08.2012 - 08.2016] HZJ71..SOT BLACK,TRIM1#; HZJ71,76..HT;GRJ71,76,79,HZJ79..(DCB,HT,SOT)..STD BLACK,TRIM1#,4#; GRJ76..GCC FRONT SEAT-BENCH SEAT,BLACK,TRIM1#,4# |
73150-60074-C0 |
— | ||
|
73210
|
73210
73210-60610-B0 Belt Assy, Front Seat Outer, Rh[01.2007 - 07.2009] FZJ71,HZJ71..GEN BLUISH GRAY,TRIM1# |
73210-60610-B0 |
US $266.45 |
||
|
73210
|
73210
73210-60610-B1
Belt Assy, Front Seat Outer, Rh
[07.2009 - 08.2012] GRJ71,HZJ71..GEN GRAY,TRIM1#; GRJ71..LX FRONT SEAT-BENCH SEAT,GRAY,TRIM1# |
73210-60610-B1 |
— | ||
|
73210
|
73210
73210-60610-E0
Belt Assy, Front Seat Outer, Rh
[01.2007 - 08.2012] FZJ71,GRJ71,HZJ71..GEN OAK,TRIM4# |
73210-60610-E0 |
— | ||
|
73210
|
73210
73210-60611-C0
Belt Assy, Front Seat Outer, Rh
[08.2012 - 08.2016] HZJ71..SOT BLACK,TRIM1#; GRJ71,HZJ71..HT..GEN BLACK,TRIM1#,4#; GRJ71..LX FRONT SEAT-BENCH SEAT,BLACK,TRIM1#,4# |
73210-60611-C0 |
— | ||
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[01.2007 - 08.2016] FZJ7#,GRJ7#,HZJ7#,VDJ7# BLACK |
73219-33010 |
from US $0.89 |
||
|
73219
|
73219
73219-33020 Stopper, Tongue Plate[01.2007 - 08.2016] FZJ7#,GRJ7#,HZJ7#,VDJ7# GRAY |
73219-33020 |
from US $1.05 |
||
|
73219
|
73219
73219-33030 Stopper, Tongue Plate[01.2007 - 08.2016] FZJ7#,GRJ7#,HZJ7#,VDJ7# BEIGE |
73219-33030 |
from US $0.89 |
||
|
73220
|
73220
73220-60540-B0
Belt Assy, Front Seat Outer, Lh
[01.2007 - 07.2009] FZJ71,HZJ71..GEN BLUISH GRAY,TRIM1# |
73220-60540-B0 |
— | ||
|
73220
|
73220
73220-60540-B1
Belt Assy, Front Seat Outer, Lh
[07.2009 - 08.2012] GRJ71,HZJ71..GEN GRAY,TRIM1#; GRJ71..LX FRONT SEAT-BENCH SEAT,GRAY,TRIM1# |
73220-60540-B1 |
— | ||
|
73220
|
73220
73220-60540-E0
Belt Assy, Front Seat Outer, Lh
[01.2007 - 08.2012] FZJ71,GRJ71,HZJ71..GEN OAK,TRIM4# |
73220-60540-E0 |
— | ||
|
73220
|
73220
73220-60541-C0
Belt Assy, Front Seat Outer, Lh
[08.2012 - 08.2016] HZJ71..SOT BLACK,TRIM1#; GRJ71,HZJ71..HT..GEN BLACK,TRIM1#,4#; GRJ71..LX FRONT SEAT-BENCH SEAT,BLACK,TRIM1#,4# |
73220-60541-C0 |
— | ||
|
73230
|
73230
73230-60182-B1 Belt Assy, Front Seat Inner, Lh[01.2007 - 07.2009] FZJ71,76,VDJ76..LX;FZJ71,HZJ71,76..RHD BLUISH GRAY,TRIM1#; HZJ76..LHD;FZJ71,76,HZJ71..LHD..STD..GEN FRONT SEAT-SEPARATE SEAT,BLUISH GRAY,TRIM1# |
73230-60182-B1 |
US $79.46 |
||
| replacement | |||||
|
73230
|
73230
73230-60182-B2 Belt Assy, Front Seat Inner, LhFRONT SEAT INNER, RH [01.2007 - 07.2009] FZJ71,76,VDJ76..LX;FZJ71,HZJ71,76..RHD BLUISH GRAY,TRIM1#; HZJ76..LHD;FZJ71,76,HZJ71..LHD..STD..GEN FRONT SEAT-SEPARATE SEAT,BLUISH GRAY,TRIM1# |
73230-60182-B2 |
US $79.46 |
||
|
73230
|
73230
73230-60182-B2 Belt Assy, Front Seat Inner, LhFRONT SEAT INNER, RH [07.2009 - 08.2012] GRJ71,76..LX;HZJ71,76..RHD GRAY,TRIM1#; GRJ71..LX FRONT SEAT-BENCH SEAT,GRAY,TRIM1#; GRJ76..GEN;HZJ76..LHD FRONT SEAT-SEPARATE SEAT,GRAY,TRIM1#; HZJ71..LHD;GRJ71..STD..GEN FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT,GRAY,TR |
73230-60182-B2 |
US $79.46 |
||
|
73230
|
73230
73230-60182-E2
Belt Assy, Front Seat Inner, Rh
[01.2007 - 08.2012] FZJ71,HZJ71,76..RHD;FZJ71,76,GRJ71,76..LX OAK,TRIM4#; HZJ76..LHD;FZJ71,76,GRJ76..LHD..STD..GEN FRONT SEAT-SEPARATE SEAT,OAK,TRIM4# |
73230-60182-E2 |
— | ||
|
73230
|
73230
73230-60183-C0
Belt Assy, Front Seat Inner, Lh
[08.2012 - 08.2016] HZJ71..SOT BLACK,TRIM1#; GRJ76..GCC BLACK,TRIM1#,4#; GRJ71,HZJ71..HT..GEN;GRJ79,HZJ76,79..RHD..(DCB,HT) BLACK,TRIM1#,4#; GRJ71..LX FRONT SEAT-BENCH SEAT,BLACK,TRIM1#,4#; GRJ76,HZJ76,79..LHD..(DCB,HT)..GEN FRONT SEAT-SEPARATE SEAT,BLACK |
73230-60183-C0 |
— | ||
| replacement | |||||
|
73230
|
73230
73230-60184-C0 BELT ASSY, FR SEAT,[08.2012 - 08.2016] HZJ71..SOT BLACK,TRIM1#; GRJ76..GCC BLACK,TRIM1#,4#; GRJ71,HZJ71..HT..GEN;GRJ79,HZJ76,79..RHD..(DCB,HT) BLACK,TRIM1#,4#; GRJ71..LX FRONT SEAT-BENCH SEAT,BLACK,TRIM1#,4#; GRJ76,HZJ76,79..LHD..(DCB,HT)..GEN FRONT SEAT-SEPARATE SEAT,BLACK |
73230-60184-C0 |
US $50.06 |
||
|
73240
|
73240
73230-60182-B1 Belt Assy, Front Seat Inner, Lh[01.2007 - 07.2009] FZJ71,VDJ76..LX;FZJ76,HZJ76..LHD..GEN BLUISH GRAY,TRIM1#; HZJ76..RHD;FZJ71,HZJ71..HT..STD FRONT SEAT-SEPARATE SEAT,BLUISH GRAY,TRIM1# |
73230-60182-B1 |
US $79.46 |
||
| replacement | |||||
|
73240
|
73240
73230-60182-B2 Belt Assy, Front Seat Inner, LhFRONT SEAT INNER, RH [01.2007 - 07.2009] FZJ71,VDJ76..LX;FZJ76,HZJ76..LHD..GEN BLUISH GRAY,TRIM1#; HZJ76..RHD;FZJ71,HZJ71..HT..STD FRONT SEAT-SEPARATE SEAT,BLUISH GRAY,TRIM1# |
73230-60182-B2 |
US $79.46 |
||
|
73240
|
73240
73230-60182-B2 Belt Assy, Front Seat Inner, LhFRONT SEAT INNER, RH [07.2009 - 08.2012] GRJ71,VDJ76..LX;GRJ76,HZJ76..LHD..GEN GRAY,TRIM1#; GRJ71..LX FRONT SEAT-BENCH SEAT,GRAY,TRIM1#; HZJ76..RHD FRONT SEAT-SEPARATE SEAT,GRAY,TRIM1#; GRJ71,HZJ71..HT..STD FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE REAR SEAT,GRAY,TRIM1# |
73230-60182-B2 |
US $79.46 |
||
|
73240
|
73240
73230-60182-E2
Belt Assy, Front Seat Inner, Rh
[01.2007 - 07.2009] HZJ71..HT FRONT SEAT-SEPARATE SEAT,OAK,TRIM4# |
73230-60182-E2 |
— | ||
|
73240
|
73240
73230-60183-C0
Belt Assy, Front Seat Inner, Lh
[08.2012 - 08.2016] VDJ76,79..(DCB,HT)..ARL BLACK,TRIM1#,4#; GRJ71..LX;GRJ76,79,HZJ76,79..LHD..(DCB,HT)..GEN BLACK,TRIM1#,4#; GRJ71..LX FRONT SEAT-BENCH SEAT,BLACK,TRIM1#,4#; GRJ79,HZJ76,79..RHD..(DCB,HT) FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,4#; GRJ71,HZ |
73230-60183-C0 |
— | ||
| replacement | |||||
|
73240
|
73240
73230-60184-C0 BELT ASSY, FR SEAT,[08.2012 - 08.2016] VDJ76,79..(DCB,HT)..ARL BLACK,TRIM1#,4#; GRJ71..LX;GRJ76,79,HZJ76,79..LHD..(DCB,HT)..GEN BLACK,TRIM1#,4#; GRJ71..LX FRONT SEAT-BENCH SEAT,BLACK,TRIM1#,4#; GRJ79,HZJ76,79..RHD..(DCB,HT) FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,4#; GRJ71,HZ |
73230-60184-C0 |
US $50.06 |
||
|
73240
|
73240
73230-60211-B1
Belt Assy, Front Seat Inner, Rh
[01.2007 - 07.2009] FZJ71..GCC;FZJ71,HZJ71,76..RHD BLUISH GRAY,TRIM1# |
73230-60211-B1 |
— | ||
| replacement | |||||
|
73240
|
73240
73230-60211-B2
Belt Assy, Front Seat Inner, Rh
[01.2007 - 07.2009] FZJ71..GCC;FZJ71,HZJ71,76..RHD BLUISH GRAY,TRIM1# |
73230-60211-B2 |
— | ||
|
73240
|
73240
73230-60211-B2
Belt Assy, Front Seat Inner, Rh
[07.2009 - 08.2012] GRJ71..GCC;HZJ71,76..RHD GRAY,TRIM1# |
73230-60211-B2 |
— | ||
|
73240
|
73240
73230-60211-C0
Belt Assy, Front Seat Inner, Rh
[08.2012 - 08.2016] HZJ71..SOT BLACK,TRIM1#; GRJ71..GCC;GRJ79,HZJ71,76,79..RHD..(DCB,HT) BLACK,TRIM1#,4# |
73230-60211-C0 |
— | ||
|
73240
|
73240
73230-60211-E2
Belt Assy, Front Seat Inner, Rh
[01.2007 - 08.2012] FZJ71,GRJ71..GCC;FZJ71,HZJ71,76..RHD OAK,TRIM4# |
73230-60211-E2 |
— | ||
|
73297B
|
73297B
73297-90K00-B0 Cover, Quarter Trim Belt Hole, Rh[01.2007 - 08.2016] FZJ71,78,GRJ71,78,HZJ71,78,VDJ78..HT SLATE GRAY,TRIM1# |
73297-90K00-B0 |
US $6.81 |
||
|
73297B
|
73297B
73297-90K00-E0 Cover, Quarter Trim Belt Hole, Rh[01.2007 - 08.2016] FZJ71,78,GRJ71,78,HZJ71,78,VDJ78..HT MD.OAK,TRIM4# |
73297-90K00-E0 |
US $5.42 |
||
|
73298B
|
73298B
73297-90K00-B0 Cover, Quarter Trim Belt Hole, Rh[01.2007 - 08.2016] FZJ71,78,GRJ71,78,HZJ71,78,VDJ78..HT SLATE GRAY,TRIM1# |
73297-90K00-B0 |
US $6.81 |
||
|
73298B
|
73298B
73297-90K00-E0 Cover, Quarter Trim Belt Hole, Rh[01.2007 - 08.2016] FZJ71,78,GRJ71,78,HZJ71,78,VDJ78..HT MD.OAK,TRIM4# |
73297-90K00-E0 |
US $5.42 |
||
|
9010511053
|
9010511053
90105-11053 BOLT FLANGE |
90105-11053 |
from US $1.05 |
||
|
9010911060
|
9010911060
90109-11060 BOLT |
90109-11060 |
US $4.66 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.61 |
||
|
9354055010
|
9354055010
93540-55010 SCREW |
93540-55010 |
US $1.25 |
||
